  • Page 1: Service Manual

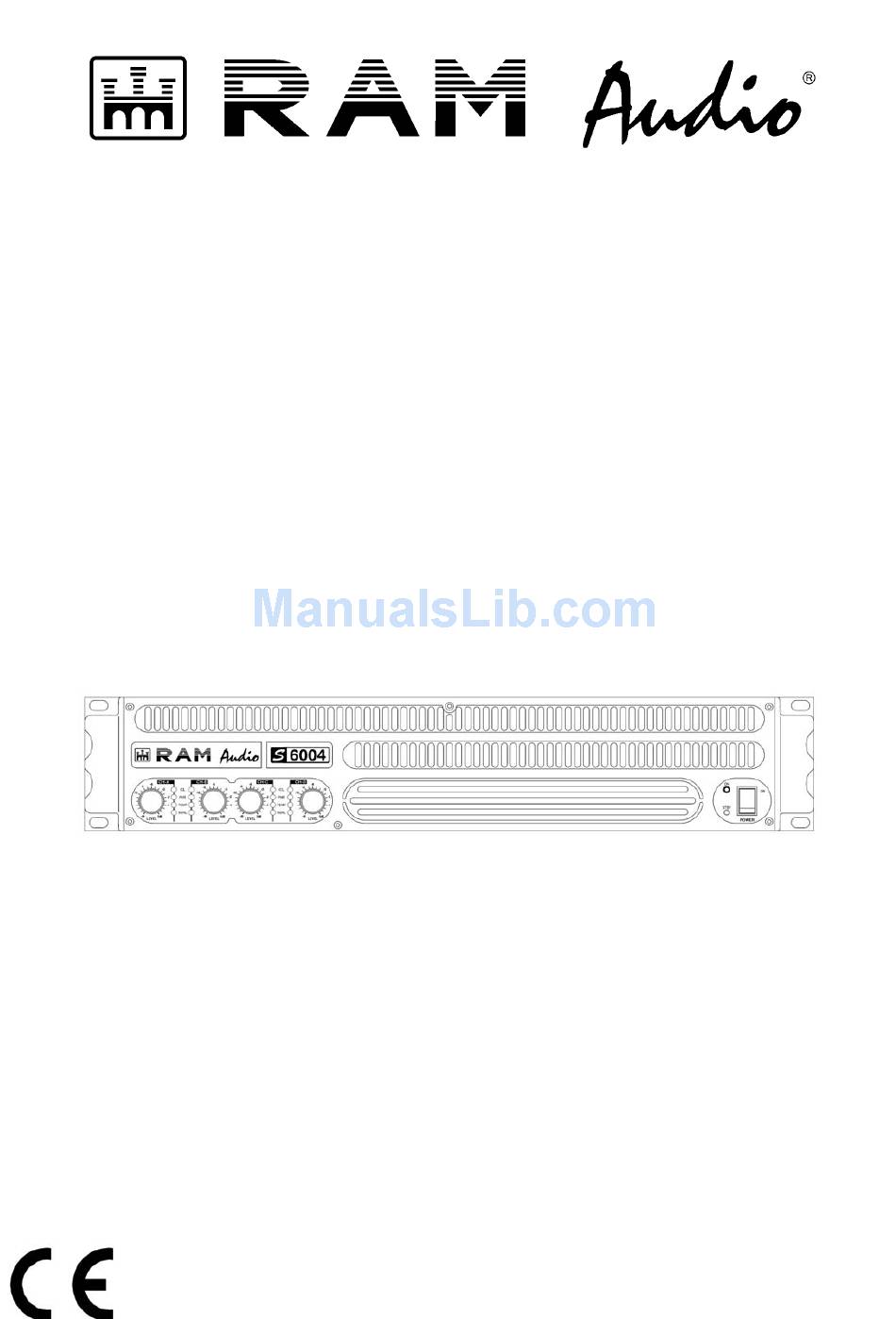

    Professional Power Amplifiers 1500-2000-3000-4000-6000 3004-4004-4044-6004-6044 S Series SERVICE MANUAL P-5343-006 © 2007 by C.E. Studio-2 s.l. - Spain (EEC) QXPSDoc http://www.ramaudio.com 1/07 e-mail: support@ramaudio.com...
  • Page 2 Fax: +34 96 127 30 56 http://www.ramaudio.com e-mail: support@ramaudio.com ™ ™ ™ ™ RAM Audio , PMS , SSP , ICL and QuantaPulse i s registered trademarks of C.E. Studio-2 s.l.. All ® other names are trademarks of their respective companies.
  • Page 3 GENERAL DESCRIPTION The S series is a hi power amplifier composed by 2 or 4 channel class H technology fed by a switching power supply. It has twin male-female XLR back pannel input connectors per channel with the posibility to work in ste- reo, parallel or bridge modes.
  • Page 4 GENERAL DESCRIPTION Power supply description The amplifier has a switching power supply fully independent and self commanded and protected, to feed the DC voltage to the audio power section. The mains voltage passes through an interference filter to filter out both the switching noise to go out and the mains interference to come in.
  • Page 5 TECHNICAL SPECIFICATIONS Technical Specifications S-1500 S-2000 S-3000 S-4000 S-6000 S-3004 S-4004 S-4044 S-6004 S-6044 Output Power 1kHz, 1.0% THD+N @ 2Ω 2x 880 W 2x 1190 W 2x 1570 W 2x 1950 W 2x 2950 W 4x 700 W 4x 980 W 4x 1440 W @ 4Ω...
  • Page 6 You can measure then the voltages at the output connector, they will be lower than expected because the voltage drops at the bulbs. The voltages are the following: S 1500: ±49V / ±81V S 2000: ±49V / ±98V S 3000: ±65V / ±114V...
  • Page 7 QUICK REPAIR PROCEDURE POWER AUDIO SECTION: When the audio section breaks, the usual consequences are that some final transistor or/and driver transistor gets shortcircuited. It is possible to get also some class h conmutation mosfet transistor or diode shortcircuited. To check it you have to use a multimeter in diode mode or resistance measure. If the final transistors are OK you can measure around 10ohms between the base and the emitter and very high resistance between collector and emitter.
  • Page 9 VRAIL_A VRAIL_A...
  • Page 10 INA- INA+ R93 475R 38dB R94 1k5 32dB R109 26dB RT1 NTC 10k NTC Sense 10u/35V 100R R101 BRIDGEA C191 470p/50V 470p/50V MJW21195 0R33/4W MJW21195 MJW21196 MJW21195 0R33/4W MJW21196 MJW21196 D113 MURS160T3 MURS160T3 IRFI1310N IRFI1310N R415 47k R434 47k R414 47k R433 47k...
  • Page 11 INB- INB+ 38dB R208475R R2001k5 32dB R199NC 26dB 10u/35V RT3 NTC 10k NTC Sense BRIDGEA 100R R160 C245 470p/50V 470p/50V MJW21195 MJW21195 0R33/4W MJW21196 MJW21195 MJW21196 0R33/4W MJW21196 D219 MURS160T3 D186 MURS160T3 IRFI1310N IRFI1310N R599 47k R541 47k R598 47k R539 47k...
  • Page 12 INC- INC+ R279475R 38dB R2801k5 32dB R278NC 26dB C132 10u/35V RT2 NTC 10k NTC Sense -15OTA2 100R R273 BRIDGEC SWCD C231 470p/50V 470p/50V MJW21195 MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 MJW21196 0R33/4W D120 D151 MURS160T3 MURS160T3 IRFI1310N IRFI1310N R524 47k R490 47k R522 47k R489 47k...
  • Page 13 IND- IND+ R346475R 38dB R3471k5 32dB R353NC 26dB RT4 NTC 10k C150 10u/35V NTC Sense BRIDGEC 100R R315 R349 C292 470p/50V 470p/50V MJW21195 MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 MJW21196 0R33/4W D242 MURS160T3 D258 MURS160T3 IRFI1310N IRFI1310N R637 47k R660 47k R636 47k R657...
  • Page 14 33u/16V 10u/35V 10u/35V...
  • Page 15 100n/400V COUT R180C 10k COUT D208C 1N4148 R189C...
  • Page 18 VRAIL_A VRAIL_A...
  • Page 19 INB- INB+ 38dB R145475R R1401k5 32dB R139NC 26dB VinswB VinposB 10u/35V RT2 NTC 10k NTC Sense BRIDGEA 100R R109 C130 470p/50V 470p/50V 0R33/4W IOUT+B MJW21195 0R33/4W MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 0R33/4W 0R33/4W 0R33/4W MJW21196 MJW21195 0R33/4W 0R33/4W MJW21196 MJW21195 0R33/4W MJW21196...
  • Page 20 33u/16V 10u/35V 10u/35V...
  • Page 21 INA- INA+ 38dB R71 475R 32dB R72 1k5 26dB VinswA VinposA 10u/35V RT1 NTC 10k NTC Sense 100R BRIDGEA 470p/50V 470p/50V MJF15031 0R33/4W MJW21195 0R33/4W MJW21195 0R33/4W MJW21196 IOUT-A IOUT+A MJW21195 R4 0R33/4W R10 0R33/4W MJW21196 MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 0R33/4W...
  • Page 24 100n/400V COUT R180C 10k COUT D208C 1N4148 R189C...
  • Page 27 VRAIL_A VRAIL_A...
  • Page 28 INA- INA+ 38dB R93 475R 32dB R94 1k5 26dB R109 RT1 NTC 10k NTC Sense 10u/35V 100R R101 BRIDGEA C191 470p/50V 470p/50V MJF18004 R423 MJW21195 0R33/4W 10R/1W MJW21195 0R33/4W 0R33/4W MJW21196 MJW21195 0R33/4W 0R33/4W MJW21196 0R33/4W MJW21196 D113 MURS160T3 MURS160T3 IRFI1310N IRFI1310N IRFI1310N...
  • Page 29 INB+ INB- R208475R 38dB R2001k5 32dB 26dB R199NC 10u/35V RT3 NTC 10k NTC Sense BRIDGEA 100R R160 C245 470p/50V 470p/50V MJW21195 MJW21195 0R33/4W MJW21196 MJW21195 MJW21196 0R33/4W MJW21196 D219 MURS160T3 D186 MURS160T3 IRFI1310N IRFI1310N IRFI1310N IRFI1310N 100k 100k 100k 100k...
  • Page 30 INC- INC+ 38dB R279475R 32dB R2801k5 26dB R278NC C132 10u/35V RT2 NTC 10k NTC Sense -15OTA2 100R R273 BRIDGEC SWCD C231 470p/50V 470p/50V MJF18004 MJW21195 MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 MJW21196 0R33/4W D120 D151 MURS160T3 MURS160T3 IRFI1310N IRFI1310N IRFI1310N IRFI1310N 100k 100k...
  • Page 31 IND+ IND- 38dB R346475R 32dB R3471k5 26dB R353NC RT4 NTC 10k C150 10u/35V NTC Sense BRIDGEC 100R R315 R349 C292 470p/50V 470p/50V MJW21195 MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 MJW21196 0R33/4W D242 MURS160T3 D258 MURS160T3 IRFI1310N IRFI1310N IRFI1310N IRFI1310N 100k 100k 100k 100k...
  • Page 32 33u/16V 100u/35V LowZ R708 ON/OF LM2675M-ADJ 100u/35V LowZ...
  • Page 35 VRAIL_A VRAIL_A...
  • Page 36 INA- INA+ 38dB R71 475R R72 1k5 32dB 26dB VinswA VinposA 10u/35V RT1 NTC 10k NTC Sense 100R BRIDGEA 470p/50V 470p/50V MJF18004 0R33/4W MJW21195 0R33/4W MJW21195 0R33/4W MJW21196 MJW21195 R10 0R33/4W MJW21196 0R33/4W MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 0R33/4W R12 0R33/4W IOUT-A IOUT+A...
  • Page 37 INB+ INB- R145475R 38dB R1401k5 32dB 26dB R139NC VinswB VinposB 10u/35V RT2 NTC 10k NTC Sense BRIDGEA 100R R109 C130 470p/50V 470p/50V 0R33/4W IOUT+B MJW21195 0R33/4W MJW21195 0R33/4W MJW21196 0R33/4W MJW21195 MJW21196 0R33/4W 0R33/4W 0R33/4W MJW21196 MJW21195 0R33/4W 0R33/4W MJW21196 MJW21195 0R33/4W MJW21196...
  • Page 38 10u/16V 100u/35V LowZ R345 ON/OF LM2675M-ADJ 100u/35V LowZ...
  • Page 41 100n/400V COUT R187 COUT 1N4148 R198...
  • Page 44 LIMLP LIMHPR LIMHPL...
  • Page 46 Manufactured in the EEC by C.E. Studio-2 s.l. Pol. Ind. La Figuera - C/Rosa de Luxemburgo nº34 46960 Aldaya - Valencia - SPAIN Phone: +34 96 127 30 54 Fax: +34 96 127 30 56 http://www.ramaudio.com e-mail: support@ramaudio.com...
