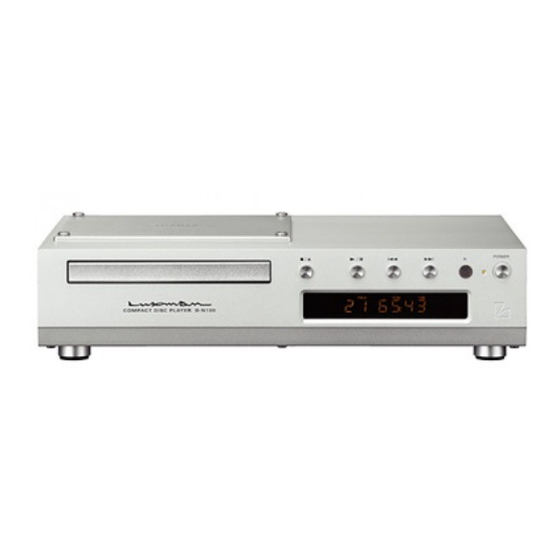

Luxman D-N100 Owner's Manual

Luxman D-N100 Owner's Manual

Hide thumbs

Advertisement

Quick Links

COMPACT DISC PLAYER
D-N100
Owner`s Manual

Advertisement

loading

Related Manuals for Luxman D-N100

Summary of Contents for Luxman D-N100

  • Page 1 COMPACT DISC PLAYER D-N100 Owner`s Manual...

  • Page 2: Table Of Contents

    Contents Precautions ..........................3 Names and Functions of Parts.....................4 Connections ..........................8 Operation .............................9 Specifications ..........................10 Troubleshooting .........................11...

  • Page 3: Precautions

    Precautions Installation location How to handle discs Lens cleaning This unit should be installed • Do not use any deficient discs If the lens is dusty, sound skips where there is no vibration from (with cracks, warp, etc.). may take place. Please ask us for the outside and where ventilation •...

  • Page 4: Names And Functions Of Parts

    Names and Functions of Parts Front panel 1. Operation switch 5. Play/pause button (5/y) This button is used to start play- (OPERATION) back. When it is pressed in the This is a switch to turn the power middle of playback, the audio supply ON/OFF.
  • Page 5 Names and Functions of Parts 17. CD mute button Remote controller (RA-N1) 9. Operation switch ( ) This is a power ON/OFF button. (CD MUTE) This button is used for tempo- rary muting of the audio output 10. Direct music select but- from this unit.
  • Page 6 Names and Functions of Parts Remote controller (RA-N1) 22. Repeat button (REPEAT) Remote control This button is used for repeated The remote control can be used by playback of a specific track or pointing it at the remote control disc. infrared receiver of this unit.
  • Page 7 Names and Functions of Parts Rear panel 27. Analog output terminal 30. Main switch (MAIN SW) This is the main power ON/OFF (ANALOG OUT) switch. When this power is not This output terminal generates turned on, it is impossible to use audio output in analog mode.

  • Page 8: Connections

    Connections AMPLIFIER To digital input terminal of D/A converter, etc. Before Making Connections Connection to the amplifier (analog output) Before connecting other devices, connect the jack side of the acces- Connect the analog output termi- sory power cable to the AC inlet of nals to the line input terminals this unit.

  • Page 9: Operation

    Operation Before operation Program playback 1. Confirm that the connections Using a remote control, it is possi- are correct. (Normal playback ble to play music on the disc in cannot be achieved with wrong your favorite order. connections for R and L.) 1.

  • Page 10: Specifications

    Specifications Applicable disc Compact disc digital audio Number of quantization bits 16 bits Sampling Frequency 44.1KHz Number of channels 2 (stereo) Frequency response DC to 20 kHz Total harmonic distortion 0.005% or less (1 kHz) Dynamic range 95dB or more S/N ratio 92dB or more Output level...

  • Page 11: Troubleshooting

    Troubleshooting If you encounter a problem during use, check the following checklist and instruction manuals of the other components before suspecting a fault and sending your unit in for repairs. Problem Cause Solution No power is sup- • The power plug is disconnected from •...
  • Page 12 AG00987C58A LUXMAN CORPORATION, JAPAN...
