IM3000
06/2003
Rev. 0

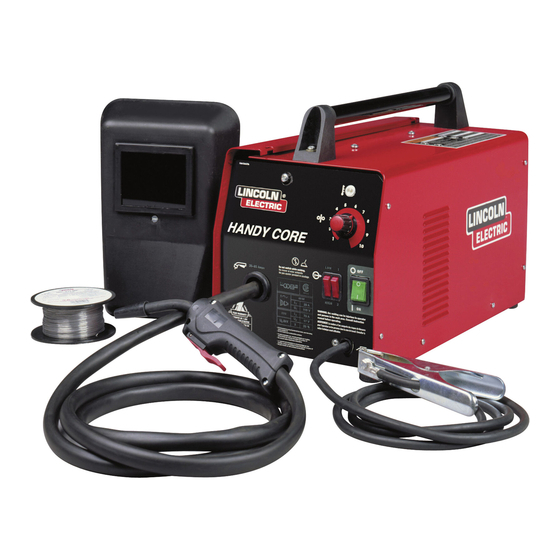

HANDY MIG / HANDY CORE
OPERATOR'S MANUAL
MANUALE OPERATIVO
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
BRUKSANVISNING OG DELELISTE
GEBRUIKSAANWIJZING
BRUKSANVISNING
INSTRUKCJA OBSŁUGI
BESTER S.A.
ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland
www.lincolnelectric.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the handy mig and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln Electric handy mig

Summary of Contents for Lincoln Electric handy mig

  • Page 1 IM3000 06/2003 Rev. 0 HANDY MIG / HANDY CORE OPERATOR’S MANUAL MANUALE OPERATIVO BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION BRUKSANVISNING OG DELELISTE GEBRUIKSAANWIJZING BRUKSANVISNING INSTRUKCJA OBSŁUGI BESTER S.A. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.com...
  • Page 2 Bekrefter at denne sveisemaskin: Verklaart dat de volgende lasmachine: Försäkrar att svetsomriktaren: Deklaruje, że spawalnicze źródło energii: HANDY MIG / HANDY CORE conforms to the following directives: è conforme alle seguenti direttive: den folgenden Bestimmungen entspricht: es conforme con las siguientes directivas: Est conforme aux directives suivantes: er i samsvar med følgende direktiver:...
  • Page 3 Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.

  • Page 4: Installation And Operator Instructions

    This machine has a protection rating of IP21. Keep Shielding Gas Connection (only for it dry when possible and do not place it on wet ground or in puddles. Handy MIG) • Locate the machine away from radio controlled When using the MIG process, a cylinder of shielding machinery.
  • Page 5 Changing Polarity (only for Handy Controls and Operational Features MIG) For Negative Polarity welding (DC-): Refer to below Figure. As delivered, the machine is wired for Negative polarity with the gun cable connected to the Negative (-) output terminal. This is the typical configuration for Flux Cored Welding (FCAW).
  • Page 6 16. Turn on the machine. The machine is now ready to weld. Release the spring loaded thumbscrew and rotate Shielding Gas (only for Handy MIG) the idle roll arm away from the wire feed drive roll. When using the MIG process, you will need a cylinder...

  • Page 7: Electromagnetic Compatibility (Emc)

    (if used), momentarily Select and install the welding wire to match the operate the gun trigger to release gas pressure, process. Use Genuine Lincoln Electric Brand wire. and turnoff the machine. Wire quality is essential for successful welding.

  • Page 8: Technical Specifications

    Consider the following guidelines to reduce electromagnetic emissions from the machine. • Connect the machine to the input supply according to this manual. If disturban ces occur if may be necessary to take additional precautions such as filtering the input supply. •...
