Related Manuals for Seca Seca 882
Summary of Contents for Seca Seca 882

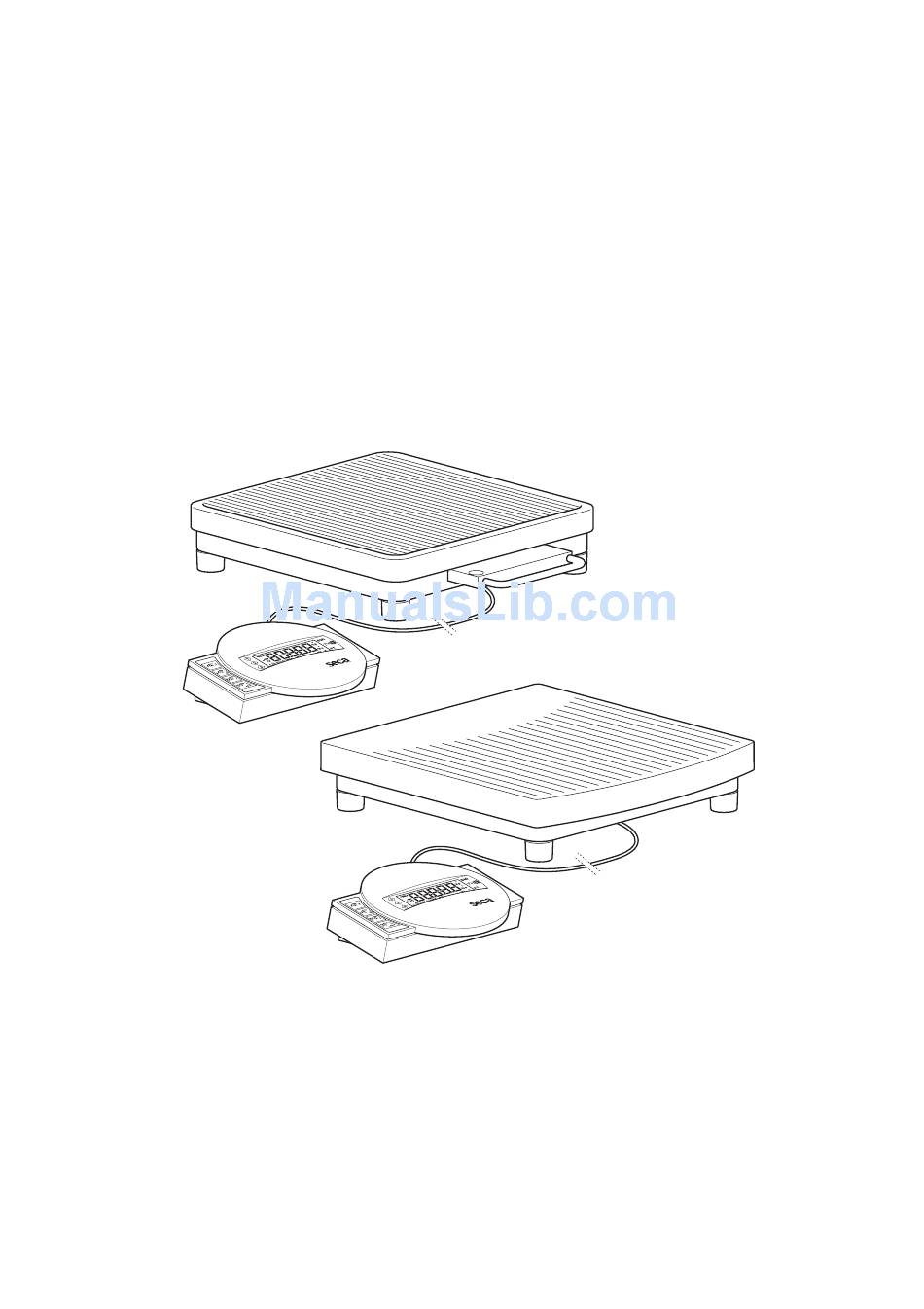

- Page 1 Your Authorized Seca Dealer seca 882 seca pragma 883 Instruction manual and guarantee...
- Page 2 Your Authorized Seca Dealer 1. Congratulations! In the seca 882/seca pragma 883 elec- number of supplementary functions in tronic personal scale you have purchased addition to the conventional determination a highly-accurate piece of equipment of weight. which is also sturdy, easy to look after and For example, by taking height into ac- space-saving.
-
Page 3: Desk-Top Stand
Your Authorized Seca Dealer Desk-top stand – Position the desk-top stand on the dis- play casing from underneath. The broad side must be located at the top of the display. The desk-top stand locks in position. – Place the display casing on a desk-top. -
Page 4: Operation
Your Authorized Seca Dealer 4. Operation Controls and displays The controls and display are in a casing separate from the scale. This casing is connected to the weighing platform by a 3-metre cable. Switch scale on and off s switch between kg and lbs... -
Page 5: Correct Weighing
Your Authorized Seca Dealer Correct weighing – Press the Start key. se(a 8. 8 . 8 . 8 . 8 . 0. 0 0 appear consec- utively in the display. The scale is then au- tomatically set to zero and ready to use –... -
Page 6: Switching The Weight Display
Automatic switch-off/economy mode The scale switches off automatically after 5 minutes. 5. Supplementary functions The seca 882 and seca pragma 883 electronic personal scales have a number of sup- plementary functions in addition to the conventional determination of weight. seca 882... -
Page 7: Body-Mass-Index (Bmi)
Your Authorized Seca Dealer Body-Mass-Index (BMI) Body Mass Index relates height and weight to one another, but provides more accurate information than Broca ideal weight. A tolerance range is given which is considered ideal for health. The Body Mass Index applies only to adults: these values are not relevant to children and young people. - Page 8 Your Authorized Seca Dealer Evaluating Body Mass Index: Compare the value determined with the categories shown below. • BMI below 18: Be careful - you weigh too little. You could have anorexic tendencies. It is recommend- ed that you gain weight to improve well-being and performance. If in doubt, consult a doctor.
- Page 9 “Broca formula” (named after a French surgeon) incorporates height. Normal weight = height in cm - 100; ideal weight = normal weight - 10 % The seca pragma 883 stores the formula for ideal weight. – Press the Start key.
- Page 10 Your Authorized Seca Dealer Weighing with Pre-Tare (seca 882 only) If the Pre-Tare function is activated, a stored weight is deducted from the currently- measured weight. This function is useful if, for example, the weight of clothing is not to be included.
- Page 11 Your Authorized Seca Dealer Target weight (seca pragma 883 only) If the target weight function is activated, a stored weight is deducted from the currently- measured weight. This function is useful if, for example, you wish to achieve your personal “ideal weight”.
- Page 12 Your Authorized Seca Dealer Limit value (seca 882 only) The seca 882 personal scale is designed to check strain on people who have difficulty in walking or on patients after surgery on the locomotor system. A weight limit value can be set.
- Page 13 Your Authorized Seca Dealer 6. Settings On seca 882 and seca pragma 883 scales, it is possible for the customer to change certain default settings to suit his requirements. Setting the damping system The damping system setting changes the transient response of the scale and thus the time taken for the alarm to sound or weight to be displayed.
- Page 14 Your Authorized Seca Dealer 7. Cleaning Clean the rubber surface and the housing as required using a domestic cleaning agent or commercially-available disinfectant. Follow the manufacturer’s instructions. 8. What do I do if… … no weight is displayed when a load is placed on the scale? –...
-
Page 15: Maintenance
Your Authorized Seca Dealer 9. Maintenance Your seca scale leaves the factory with an accuracy greater than ± 0.25 %. To ensure that this accuracy is maintained, the product must be carefully set up and regularly maintained. Depending on the frequency of use, we recommend servicing every 3 to 5 years. Please ensure that a qualified service agent is used. -
Page 16: Technical Data
Your Authorized Seca Dealer 10. Technical data Maximum capacity 200 kg /440 lbs / 31 sts (USA 400 lbs / 180 kg) Graduations 0 to 150 kg 0,1 kg 150 to 200 kg 0,2 kg 0 to 330 lbs... -
Page 17: Disposing Of The Scale
No further oured if the equipment is opened by per- claims can be entertained. The costs of sons not expressly authorised by seca to transport in both directions will be borne do so. by the customer should the equipment be...
