3B SCIENTIFIC PHYSICS 1005405 Instruction Manual

3B SCIENTIFIC
Monocular Course Microscope Model 100, LED
115 V, 50/60 Hz: 1005405 / 230 V, 50/60 Hz: 1005406
Instruction Manual
07/13 ALF
1. Description, technical data
The monocular course microscope allows two-
dimensional viewing of objects (thin sections of
plant or animal specimen) in 40x to 400x magni-
fication.
The microscope 1005405 is for operation with a
mains voltage of 115 V (±10%), and the
1005406 unit is for operation with 230 V (±10%).
Stand: All-metal stand, arm firmly connected
with base, pinion knobs attached on both sides
of the stand for coarse and fine focusing
Tube: Monocular inclined 45°, head rotation
360°
Eyepiece: Widefield eyepiece WF 10x 18 mm
with pointer
Objectives: Revolver with 3 DIN achromatic
objectives 4x / 0.10, 10x / 0.25, 40x / 0.65 (with
specimen protection)
®
PHYSICS
Magnification: 40x, 100x, 400x
Object stage: 110 x 120 mm
clips
Illumination: Adjustable LED lighting incorpo-
rated into the base with a focussing lens in the
lighting shaft, power supplied by rechargeable
battery, 115 V or 230 V, 50/60 Hz charger
Condenser: Bright-field condenser N.A. 0.65,
iris diaphragm, filter holder and blue filter
Dimensions: 175 x 135 x 370 mm³ approx.
Weight: 2.9 kg approx.
The microscope is packed in a molded styro-
foam container.
•
1

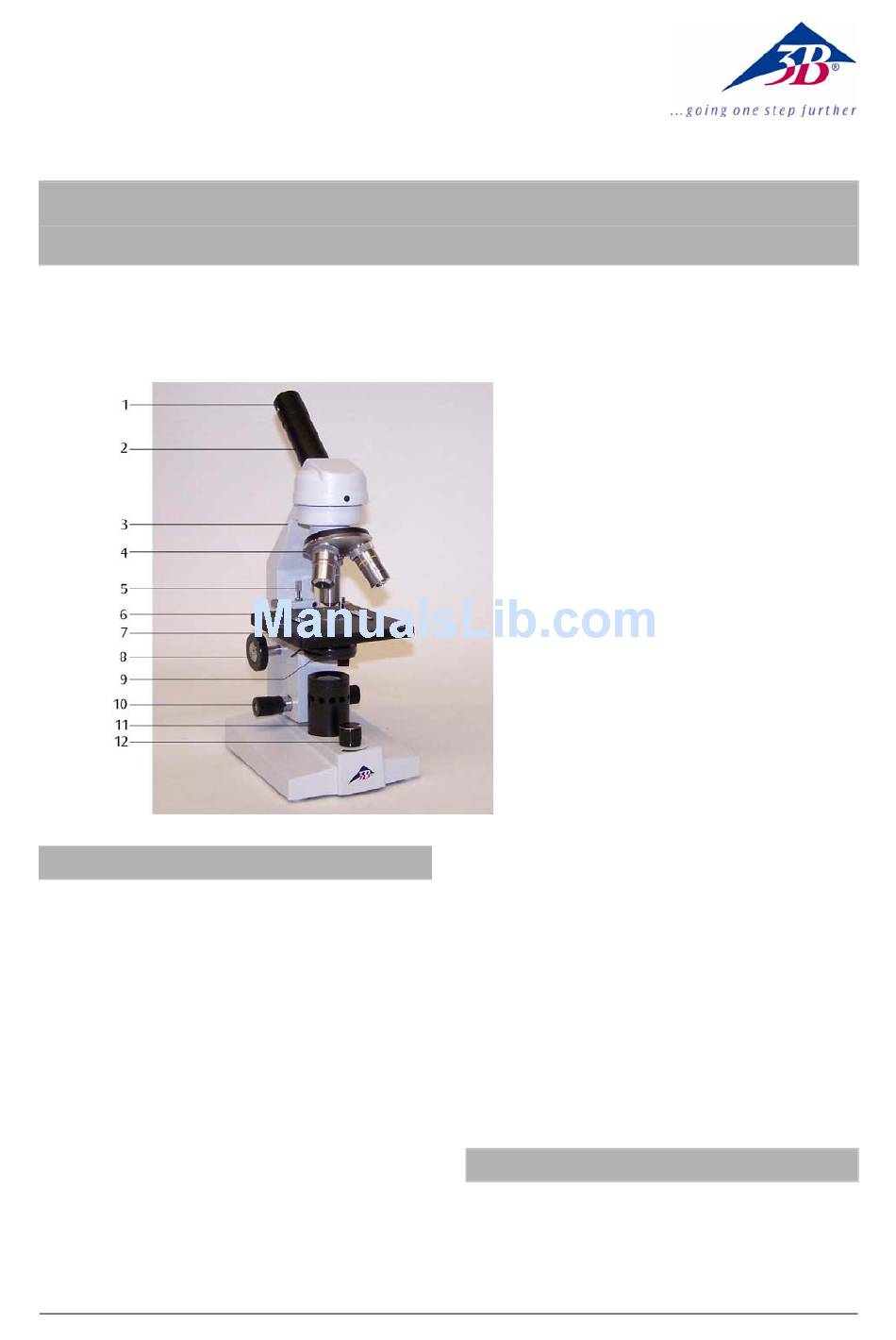

1 Eyepiece
2 Tube
3 Stand
4 Revolver with objectives
5 Lock screw for object stage
6 Specimen clips
7 Object stage
8 Adjustment knob for coarse
focusing
9 Condensor with iris dia-
phragm and filter holder
10 Adjustment knob for fine
focusing
11 Lamp housing
12 Switch with illumination
control
2. Unpacking and assembly
Take the container out of the carton remove
the tape and carefully lift the top half off the
2
