Removing the Back Cover

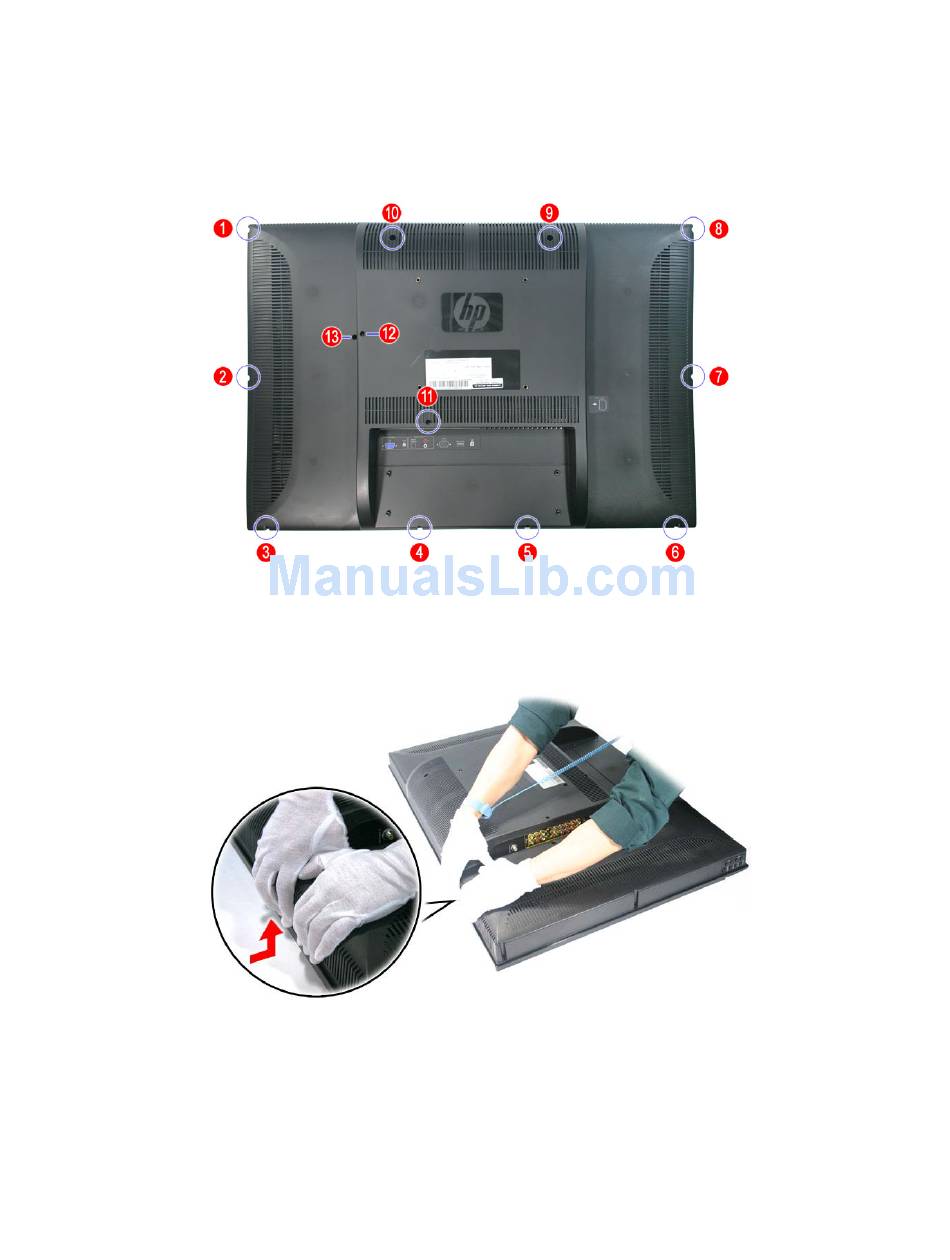

1 Remove the thirteen screws as shown.
Note: Screws 9, 10, 11, 12, and 13 are sheet metal screws. During reassembly, make sure you return these sheet metal screws to
their proper location.
Note: The 47-inch model has two extra screws (total of 15), one on each side toward the bottom of the unit.
2 On all sides of the unit, press the side of the back cover inward to release it from the inner latches.
Note: All models except for the 32-inch have small bumps on the edge of the bezel that indicate the locations where the cover
is connected to the bezel. Apply pressure at these locations to loosen the cover.
Note: Removing the cover can be difficult and may take some time.
