Setting up your Dell Active Pen
Installing batteries
Dell Active Pen uses one AAAA battery and two coin-cell batteries.
The AAAA battery provides power for the tip and the barrel buttons. The coin-
cell batteries provide power for Bluetooth functionality and top button quick-
launch features.

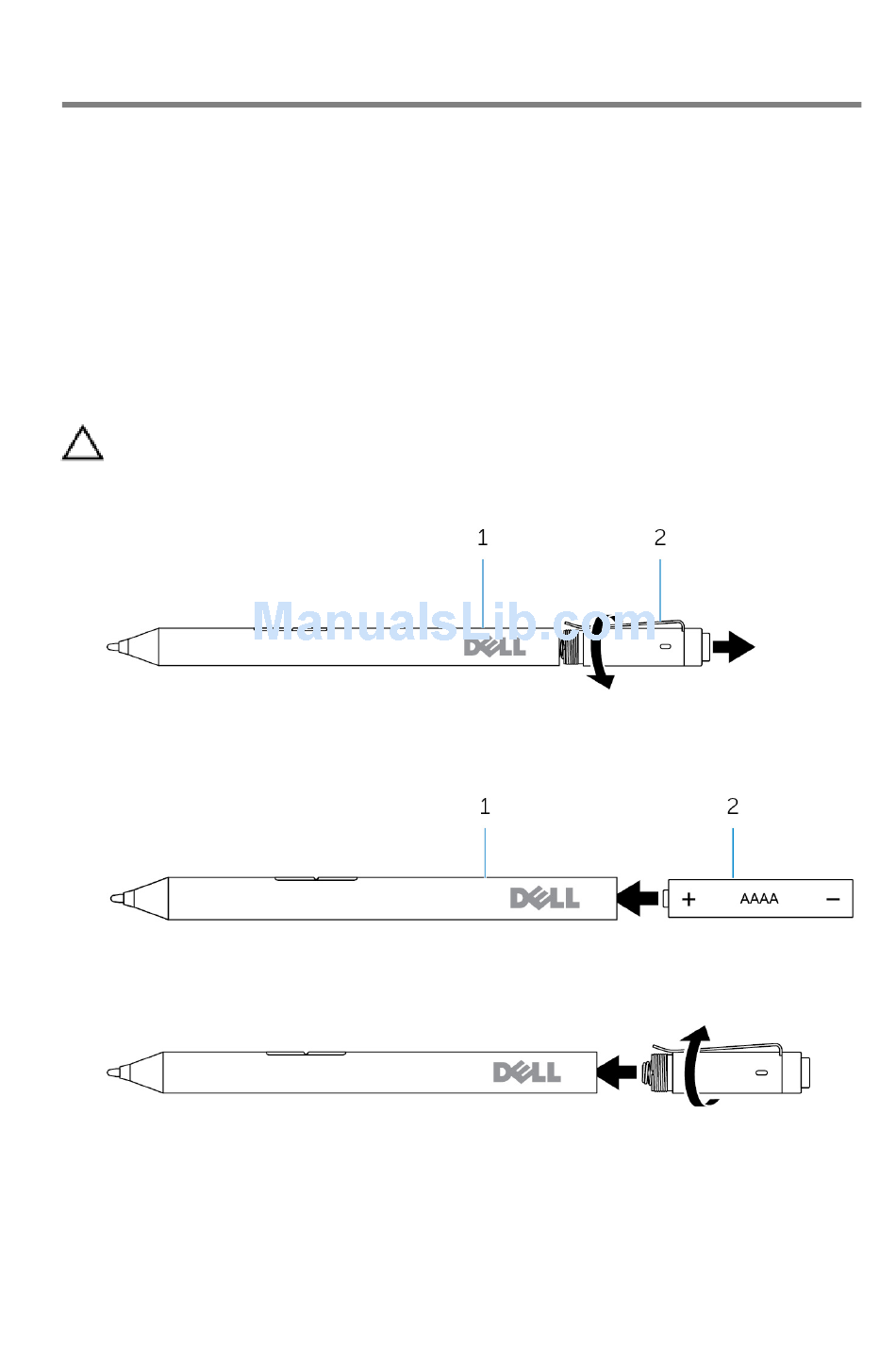

Installing the AAAA battery
CAUTION: Incorrectly installing the AAAA battery damages the pen.
1
Remove the top cover from the pen.
1
pen
2
Insert the AAAA battery into the pen with the positive side facing in.
1
pen
3
Replace the top cover to the pen.
2
top cover
2
AAAA battery
7
