FM Wired-Remote Control-Final11.qxd
01/11/2004
11:18
Dell DJ
Inline FM Remote
1
2
3
6
7
8

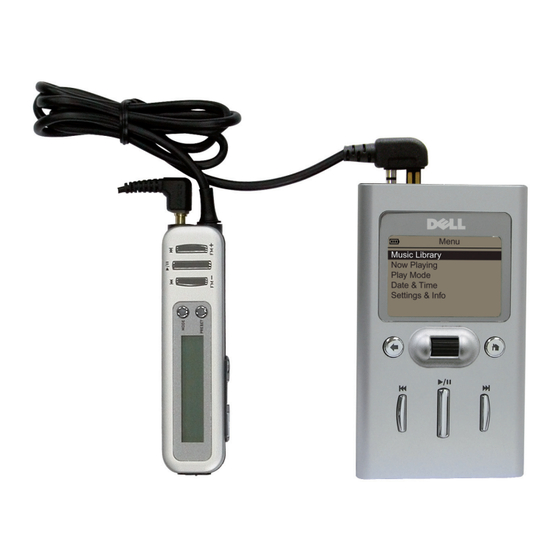

Connect the Inline FM Tuner to Your Player
Headphones
Connect ONLY the supplied Inline FM Tuner (part number F7492) or wired remote (part number F7495) to
your Dell DJ player. Connecting other Inline FM Tuners or wired remotes to your Dell DJ player may
cause permanent damage.
Using the Dell DJ Inline FM Tuner
Turning on your Dell DJ
Press and hold the play/pause
button on the Inline FM Tuner until your Dell DJ
turns on.
Turning off your Dell DJ
Press and hold the play/pause
button on the Inline FM Tuner until your Dell DJ
turns off.
With the Dell DJ Inline FM Tuner, you can listen to all of your favorite FM radio stations.
Setting an FM Preset Channel
1. Press the mode button to switch to Radio mode. You should see "Preset" at the
upper-left corner of the LCD screen.
Otherwise, press the preset button to enter Preset mode.
2. Press the fast forward/skip forward
or rewind/skip back
a preset channel.
3. Press the preset button to switch to FM Tuning mode.
4. Press the fast forward/skip forward
or rewind/skip back
for a channel,
or
Press and hold the fast forward/skip forward
or rewind/skip back
to let your device automatically search for the nearest detectable channel.
Page 1
4
5
5. Repeat step 4 until you find a channel you want.
6. Press and hold the preset button to save the current channel as a preset channel.
Otherwise, press the preset button to switch to Preset mode without saving the
current channel.
Selecting an FM Preset Channel
1. Press the mode button to switch to Radio mode. You should see "Preset" at the
upper-left corner of the LCD screen.
Otherwise, press the preset button to enter Preset mode.
2. Press the fast forward/skip forward
or rewind/skip back
a preset.
Setting the Clock
buttons to select
The Inline FM Tuner's clock synchronizes with your computer's system time whenever
you transfer audio tracks or files into your Dell DJ.
button to search
button
w w w . d e l l . c o m
|
s u p p o r t . d e l l . c o m
Features
1.
LCD SCREEN Displays your current selection and playback settings. See
"About Music and Radio modes" for more information.
2.
MODE BUTTON - Press this button to switch between Music and Radio
modes.
3.
REWIND/SKIP BACK BUTTON - In Music mode: press this button to move to
the start of the current track, or to go to the previous track. Press and hold
this button to move back within a track. In FM Preset mode: press this
button to go to the previous preset channel. In FM Tuning mode: press this
button to scan channels backward. In both Radio modes: press and hold
9
this button to automatically scan backward to the nearest channel.
4.
PLAY/PAUSE BUTTON - Press and hold this button to turn your Dell DJ on
10
or off.
Press this button to start or pause a track or recording.
5.
FAST FORWARD/SKIP FORWARD BUTTON - In Music mode: press this
button to go to the next track. Press and hold this button to move ahead
within a track. In FM Preset mode: press this button to go to the next preset
channel. In FM Tuning mode: press this button to scan channels forward. In
both Radio modes: press and hold this button to automatically scan forward
to the nearest channel.
11
About Music and Radio modes
In Music mode
Track
Elapsed
Play Mode
Number
Time
Icon
Play Icon
Track Title
Making a Recording
You can make FM radio or voice recordings and store them in your Dell DJ.
For information on transferring recordings from your Dell DJ to your computer, see
"Transferring Music Tracks Using Dell DJ Explorer" on page 21 of your Dell DJ User's
Guide (on CD).
Making an FM Recording
1. Press the mode button to switch to Radio mode. You should see "Preset" at the
upper-left corner of the LCD screen.
Otherwise, press the preset button to enter Preset mode.
2. Press the fast forward/skip forward
button to select
select a preset channel.
3. To record, press the record button.
4. To stop recording, press the record button.
The recording is stored in the FM recordings category of your Dell DJ's Music
Library.
Accessing an FM recording
1. Press the home button on your Dell DJ.
2. Scroll-select Music Library.
3. Scroll-select Recordings.
4. Scroll-select FM Recordings.
6.
PRESET BUTTON - In Radio mode, press this button to switch between FM
Preset and FM Tuning modes, or press and hold to save a preset channel.
7.
VOLUME BUTTONS - Press and hold the volume buttons to increase or
decrease the volume.
8.
RECORD BUTTON - Press this button to make an FM radio recording or a
voice recording. Press this button again to stop recording.
9.
LOCK SWITCH - Move this to lock or unlock the buttons on your Inline FM
Tuner. Lock the buttons when you want to prevent them from being pressed
accidentally. The switch is in Locked position when you see
When your device is locked, you cannot turn your device on or off.
10.
INTEGRATED MICROPHONE - Allows you to record audio. See "Making a
Recording " for more information.
11.
HEADPHONE CONNECTOR - Attach earphones or headphones.
In FM mode
Preset Channel
Battery
Clock Time /Elapsed
Indicator
Number
Recording Time
EQ Icon
FM Radio
Channel
There are two other modes in Radio mode, FM Preset and FM Tuning mode.
In FM Preset mode, you can select an FM preset channel.
In FM Tuning mode, you can assign a preset to an FM channel.
See "Using the Dell DJ Inline FM Tuner" for more information.
Making a Voice Recording
1. Press the mode button to switch to Music mode.
2. To record, press the record button.
The elapsed time is shown on the LCD screen.
3. To stop recording, press the record button.
The recording is stored in the Voice Recordings category of your Dell DJ's Music
Library.
Accessing a Voice Recording
or rewind/skip back
button to
1. Press the home button on your Dell DJ.
2. Scroll-select Music Library.
3. Scroll-select Recordings.
4. Scroll-select Voice Recordings.
This device complies with the limits for a Class B device, pursuant to part 15 of the FCC Rules.
Information in this document is subject to change without notice.
© 2004 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Dell, Dell DJ and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft
Corporation. Dell disclaims proprietary interest in the marks and names of others.
November 2004
Printed in Malaysia
.
