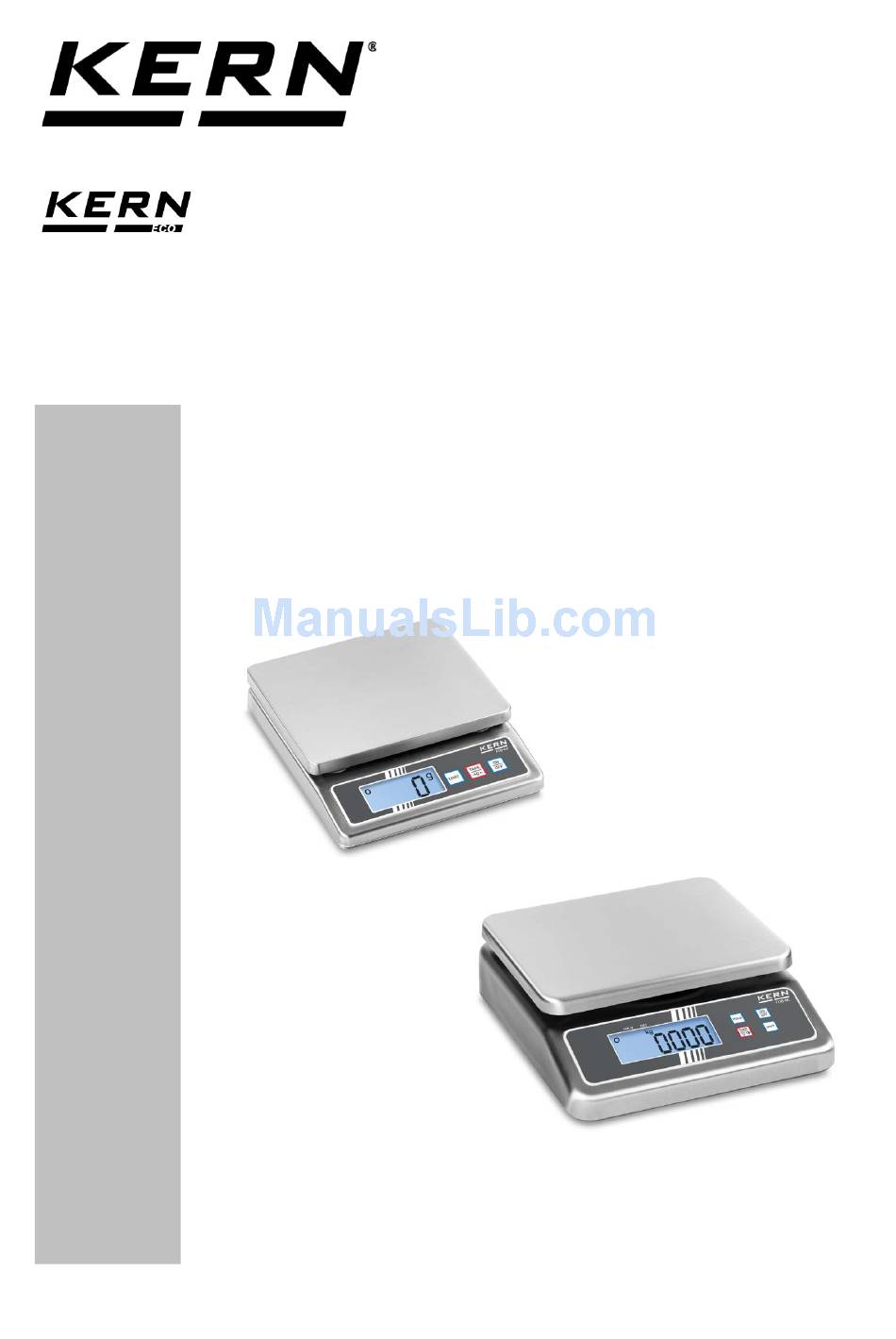

Operating manual
Compact balance
KERN FOB-N
Version 1.0
09/2014
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
FOB-NL
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
FOB-NS
FOB-N-BA-e-1410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOB-N series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KERN FOB-N series

Summary of Contents for KERN FOB-N series

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Compact balance KERN FOB-N Version 1.0 09/2014 FOB-NS FOB-NL FOB-N-BA-e-1410...

  • Page 2: Table Of Contents

    KERN FOB-N Version 1.0 09/2014 Operating manual Compact balance Contents Technical data ....................4 Basic Information (General) ................6 Proper use ..........................6 Improper Use ..........................6 Warranty ............................. 6 Monitoring of Test Resources..................... 7 Basic Safety Precautions ................7 Pay attention to the instructions in the Operation Manual ............
  • Page 3 The menu ...................... 20 Call up menu ..........................20 Navigation in the menu ......................20 Menu overview ......................... 21 8.3.1 Models FOB-NS: ........................21 8.3.2 Models FOB-NL: ........................21 Menu settings ........................... 22 8.4.1 Setting weighing units ....................... 22 8.4.2 Automatic switch-off function „AUTO OFF“...

  • Page 4: Technical Data

    1 Technical data Models „FOB-NS“: KERN FOB 0.5K-4NS FOB 5K-3NS Readability (d) 0.1 g Weighing range (max) 500 g 5000 g Reproducibility 0.1g Linearity ± 0.2 g ± 2 g Weighing Units g, lb, oz, ozt, dwt Recommended adjustment 500 g (M1)
  • Page 5 Models „FOB-NL“: KERN FOB 7K-4NL FOB 10K-3NL FOB 30K-3NL Readability (d) 0.5 g / 1 g 1 g / 2 g 2 g / 5 g Weighing range (max) 5 kg / 7.5 kg 8 kg / 15 kg 16 kg / 30 kg Reproducibility 0.5 g / 1 g...

  • Page 6: Basic Information (General)

    The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 2.3 Warranty Warranty claims shall be voided in case •...

  • Page 7: Monitoring Of Test Resources

    Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.

  • Page 8: Unpacking, Setup And Commissioning

    5 Unpacking, Setup and Commissioning 5.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: •...

  • Page 9: Placing

    5.3 Mains connection (optional) The balance may be operated via the optional mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. 5.4 Battery operation Unscrew battery cover on the bottom of the housing (see figure 1).

  • Page 10: Initial Commissioning

    In the menu you can activate the AUTO-OFF function (see chap. 8.4.2 “Automatic switch-off function“). According to the selected settings, the balance switches automatically off in order to spare the battery. The empty battery is indicated on the display by „LobAt“. Press button change the battery/batteries immediately.
  • Page 11 Procedure when adjusting: Observe stable environmental conditions. A warming up time (see chapter 1; Technical Data) is required for stabilization. Ensure that there are no objects on the weighing plate. Models FOB-NS: Balance display Operation  Switch off the balance ...
  • Page 12 Models FOB-NL: Balance display Operation  Switch off the balance  Press and hold , press 3x at the same  time, release - an internal value is displayed. (example)  Press , "0" is displayed  Put adjustment weight in the centre of the weighing plate, wait for stability display and press ...

  • Page 13: Operating Elements

    6 Operating elements 6.1 Keyboard overview 6.1.1 Models FOB-NS: Button Designation Pressed once and released • Turn on/off [ON/OFF] • Call up adjustment (press and hold button) In menu: • Passing through menu • Taring [TARE] items from top to bottom •...

  • Page 14: Models Fob-Nl

    6.1.2 Models FOB-NL: Button Designation Pressed once and released • Turn on/off [ON/OFF] • Call up adjustment (press and hold button) • Taring In menu: • Passing through menu • Display backlight [TARE] items from top to (press button long bottom time) •...

  • Page 15: Overview Of Display

    6.2 Overview of display 6.2.1 Models FOB-NS: Display Description g, lb, oz, ozt, dwt Display weighing units Stability display 6.2.2 Models FOB-NL: Display Description g, lb, oz, ozt, dwt Display weighing units Stability display HOLD Display hold function Display net weight FOB-N-BA-e-1410...

  • Page 16: Operation

    7 Operation 7.1 Simple weighing Balance display Operation  Start balance by pressing The balance will carry out a self-test. Wait for „0“ display  If the balance should not exactly display "0" despite the relieved weighing pan, press ("L" models) or ("S"...

  • Page 17: Taring

    7.2 Taring The dead weight of any weighing container may be tared away by pressing a button, so that the following weighing procedures show the net weight of the goods to be weighed. Balance display Operation  Deposit weighing vessel. The weight of the container is displayed.

  • Page 18: Hold Function (Only "L" Models)

    7.4 Hold function (only "L" models) The balance has an integrated standstill function (mean value calculation). With this it is possible to weigh unstable samples to be weighed exactly. There are 2 possibilities: Balance display Operation  Start balance by pressing The balance will carry out a self-test.

  • Page 19: Backlight Of The Display (Only "L" Models)

    Balance display Operation  Start balance by pressing The balance will carry out a self-test.  Wait for „0“ display  Press , "HOLD" will appear and a small triangle flashes. During this time put samples to be weighed in place. ...

  • Page 20: The Menu

    8 The menu 8.1 Call up menu „L“-Models: • Switch off the balance • Press and hold and press 3x at the same time, then release both buttons. „S“-Models: The menu is accessed by pressing in weighing mode for approx. 3 seconds. 8.2 Navigation in the menu Button Direction in the...

  • Page 21: Menu Overview

    8.3 Menu overview 8.3.1 Models FOB-NS: not documented 8.3.2 Models FOB-NL: FOB-N-BA-e-1410...

  • Page 22: Menu Settings

    8.4 Menu settings 8.4.1 Setting weighing units Balance display Operation FOB-S:   In weighing mode press button for approx. 3 seconds. „SEt“, followed by „Unit“ is displayed FOB-L:  Switch off the balance Press and hold and press 3x at the same time, then release both buttons.
  • Page 23  Press repeatedly until „Unit“ is displayed  Press , „A.Off“ will be shown  Press , „CAP.“ is displayed  Press , „End“ is displayed  Press to return to weighing mode  Use to change between the set units In order to switch off the units display, proceed as described above and set the selected unit to „Off“.

  • Page 24: Automatic Switch-Off Function „Auto Off" In Stand-By Mode

    8.4.2 Automatic switch-off function „AUTO OFF“ in stand-by mode The balance offers the possibility of the automatic switch-off, when the balance is in stand-by mode. The switch-off time may be selected as follows: Balance display Operation FOB-S:  In weighing mode press ...
  • Page 25  Use to adopt selection, „AOFF“ is displayed  Press , „CAP“ is displayed  Press again, „End“ is displayed  Using the balance returns to weighing mode. The setting is saved. The auto-off function is only possible in battery operation. In mains operation this function is turned off.

  • Page 26: Error Messages

    Spilled weighing goods must be removed immediately. 10.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 10.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.

  • Page 27: Instant Help

    11 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Help: Fault Possible cause The displayed weight does •...
