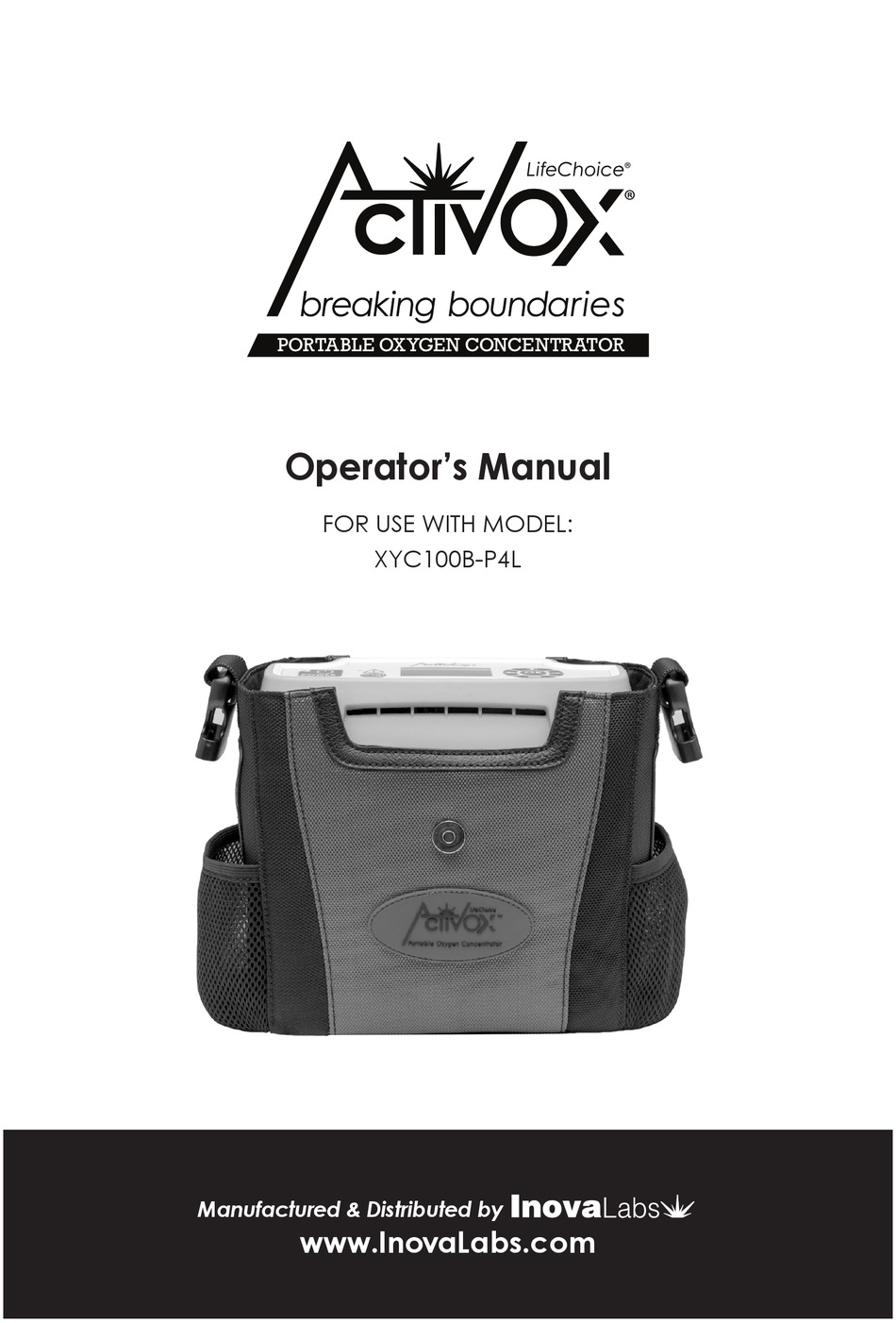

- Page 1 ® ® Operator’s Manual FOR USE WITH MODEL: XYC100B-P4L Manufactured & Distributed by www.InovaLabs.com...
- Page 2 Copyright © 2015 Inova Labs, Inc. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from Inova Labs Inc. Inova Labs Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Application/Indications For Use Symbol Descriptions Warnings Contraindications Adverse Events/Hazards Standard Package Contents User Controls Part Names Operating Instructions Battery Life Timetable Battery Recharge Timetable Attach & Remove Nasal Cannula Instructions Repressurization Technology Operating Procedure Normal Operation Indicators Alarm Indicators Carry Case Configuration Instructions Flying With Your POC... -
Page 4: Introduction
Operation with the DUO2 Stationary Base Concentrator The Activox 4L can be purchased as part of the Inova Labs Activox DUO2 system. The system is composed of an Actiovox 4L POC and the DUO2 stationary base concentrator. -
Page 5: Symbol Descriptions
7. The device should not be used adjacent to or stacked with other equipment other than the the Activox DUO2. 8. When traveling by air, the device and External Battery must be transported as carry-on (not checked) baggage. -
Page 6: Contraindications
CONTRAINDICATIONS 1. The device is not intended to be life-sustaining or life-supporting. 2. In certain circumstances, oxygen therapy can be hazardous. Please seek medical advice before using this device. 3. The device is designed to provide a flow of high purity oxygen up to 4 LPMeq pulse. -
Page 7: Standard Package Contents
STANDARD PACKAGE CONTENTS LifeChoice Activox 4L POC DC Power Supply Model identified on device and packaging labels. See AC Power Supply Standard 7-Foot (2-meter) 4-Way Carry Case Single Lumen Nasal Use as a backpack, shoulder bag, Cannula* waist pack or briefcase... -
Page 8: User Controls
USER CONTROLS Control Panel Navigation Controls Alarm Indicator Power Indicator Power Button Mute Button Display Screen Alarm Indicator: A red LED will illuminate and an audible signal (tone) will sound if there is a change in operating status or a condition occurs that may need response (alarm). -
Page 9: Display Screen
Display Screen Message Field Mute Symbol External Operating Status Power Symbol Field Flow Setting Level INT and EXT Battery Bars PULSE-WAVE Breath Auto Mode Setting Detection Symbol Auto Mode Setting: There are two inhalation sensitivity modes on the device: Active and Rest, which automatically adjust based on your breathing patterns. -
Page 10: Part Names
PART NAMES Charger Port Cannula Nozzle Fitting Control Panel Fan Outlet Vent Fan Inlet Vent External Battery Port Cannula Nozzle Fitting: Connect the nasal cannula to this fitting at the top of the device. Charger Port: Connect the AC or DC Power Supply to this port on the device. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS The LifeChoice Activox POC must be operated and stored in its carry case at all times. BEFORE FIRST USE: 1. Fully charge the device. It can take up to 4 hours to reach a full charge on the Internal Battery. Begin charging by connecting the AC Power Supply to the Charger Port on the device and an electrical outlet. - Page 12 OPERATING INSTRUCTIONS continued 2. AC Power Supply: This power supply allows the device to be powered and charged from a standard 100-240 VAC, 50/60 Hz electrical outlet. When using this option, power from the AC outlet powers the unit and recharges the Internal and/ or External Battery.
- Page 13 OPERATING INSTRUCTIONS continued NOTE: It is recommended to recharge the Internal Battery, even if only partially depleted as often as possible. The Internal Battery cannot be overcharged, so it is okay to leave the device plugged into an external power supply continuously.
-
Page 14: Battery Life Timetable
OPERATING INSTRUCTIONS continued In the event the power supply is interrupted to the device when the AC or DC Power Supply is connected, a two-second audible alarm will sound and the compressors will transition from external to battery power. NOTE: If the POC is powered off and either the AC or DC Power Supply is connected, the internal fans will continue to operate until the temperature inside the unit is sufficiently cooled. -
Page 15: Attach & Remove Nasal Cannula Instructions
ATTACH AND REMOVE NASAL CANNULA INSTRUCTIONS The Cannula Nozzle Fitting on the Activox POC rotates to reduce the risk of a kinked cannula. To ensure proper functioning of the Fitting, refer to the following instructions for correct attachment and removal of the cannula. -
Page 16: Repressurization Technology
REPRESSURIZATION TECHNOLOGY If the unit has not been used for a period of one or more days, it will automatically re-pressurize itself. During this time, you may hear the compressors running for a few seconds. There is no action required on your part, this feature is intended to prolong the life of the device. -
Page 17: Normal Operation Indicators
Internal Battery and the Internal Battery will charge before the External Battery when connected. Connected to Activox DUO2 When the device is connected to the Activox DUO2 stationary base, the Display Screen will show the message “Connected to Activox DUO2”. The device will emit a two second audible tone if the AC or DC Power is interrupted or intentionally unplugged. -
Page 18: Alarm Indicators
ALARM INDICATORS The device will alarm to inform you of conditions that may require your attention or action. Each alarm will trigger: • A repeating audible tone (<1 second ON, <2 seconds OFF) • Illuminated red Alarm Indicator on the Control Panel •... -
Page 19: Carry Case Configuration Instructions
Assistance may be required with this step. 6. Adjust straps as needed. Assistance may be required with this step. FLYING WITH YOUR POC The LifeChoice Activox POC is approved by the FAA for use on commercial aircraft. The FAA-approved POC list shows “Inova Labs LifeChoice Activox.” This approval is listed as a part of the labeling on the bottom panel of the device. -
Page 20: Routine Cleaning And Maintenance
1. Check that the unit has at least 25% (1 bar) charge on the battery or plug into an external power source. Activox 2. With the device off, press and hold down the Power button. The screen display will Serial Number: PF1234 start flashing. -
Page 21: Service Life
The manufacturer recommends that you have an alternative source of supplemental oxygen in the event of power outage, alarm condition or mechanical failure. Although the Activox concentrator will operate 24 hours/7 days per week, daytime/nighttime, (as long as it is charged/... -
Page 22: Specifications
AC Power Supply: Input: 100-240VAC, 50 - 60 Hz; Output: 19VAC, 6.3A DC Power Supply: Input: 11-16VDC, 10A; Output: 19VDC, 6.3A External Battery Power Supply: Battery 12 to16.8 VDC LifeChoice Activox POC Input: 19VDC, 6A Nasal Cannula: 7 ft. (2 m) maximum Environmental Conditions for Use, Storage and Transport Operational Temperature Range: 41°F to 104°F (5°C to 40°C) -
Page 23: Accessories
Accessories, adapters, and cables other than those specified, with the exception of adapters and cables sold by the manufacturer of the medical electrical equipment as replacement parts for internal components, may result in increased emissions or decreased immunity of the Model XYC100B-P4L. ACCESSORY COMPATIBILITY Accessory... -
Page 24: Warranty
WARRANTY LIMITED WARRANTY AND DISCLAIMER (“Limited Warranty”) NOTE: This Limited Warranty provides specific legal rights. The Purchaser may also have other rights which vary from state to state or country to country and in some cases, due to applicable laws, certain limitations or exclusions of this Limited Warranty may not apply. - Page 25 WARRANTY continued accelerates combustion. DO NOT ALLOW SMOKING OR OPEN FLAMES within ten (10) feet (three (3) meters) of these devices while in use. A user’s SMOKING of any kind (including cigarette, cigar, and pipe) while using Product, and evidence that a user has smoked while using the Product, will void all warranties with respect to that Product and related Items.
- Page 26 WARRANTY continued The exterior of the shipping container must clearly display the RMA number which properly identifies the returned Items. The Items must be packaged together with proof of Date of Purchase. Items returned without a proper RMA number and proof of the Date of Purchase shall be refused and returned to Purchaser at Purchaser’s expense.
- Page 27 WARRANTY continued SHALL NOT EXCEED THE PURCHASE PRICE PAID FOR THE ITEMS, REGARDLESS OF THE FORUM AND REGARDLESS OF WHETHER ANY ACTION OR CLAIM IS BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. PURCHASER AGREES AND ACKNOWLEDGES THAT THE ITEMS ARE OF A SIZE, DESIGN AND CAPACITY SELECTED BY ITS MEDICAL PROVIDER.
-
Page 28: Emc Information
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The LifeChoice Activox Portable Oxygen Concentrator Model XYC100B-P4L is intended for use in the electromagnetic environment specified below. The customer or the user of the Model XYC100B-P4L should assure that it is used in such an environment. Immunity Test... - Page 29 Activox Portable Oxygen Concentrator Model XYC100B-P4L ® is intended for use in the electromagnetic environment specified below. The customer or the user of the Model XYC100B-P4L should assure that it is used in such an environment. Immunity Test IEC 60601...
- Page 30 Emissions Test Compliance Electromagnetic Environment - Guidance The Model XYC100B-P4L uses RF energy only for its internal function. Therefore, its RF emissions are Group 1 RF Emissions, CISPR 11 very low and are not likely to cause any interference to nearby electronic equipment.
- Page 31 OWNER’S NOTES...
- Page 32 ® ® Manufactured & Distributed by 3500 Comsouth Drive, Suite 100, Austin, Texas 78744 USA Corporate Office 1.512.617.1700 | www.InovaLabs.com © 2015 Inova Labs Inc. All rights reserved. 12M-400 Rev L September 2015...
