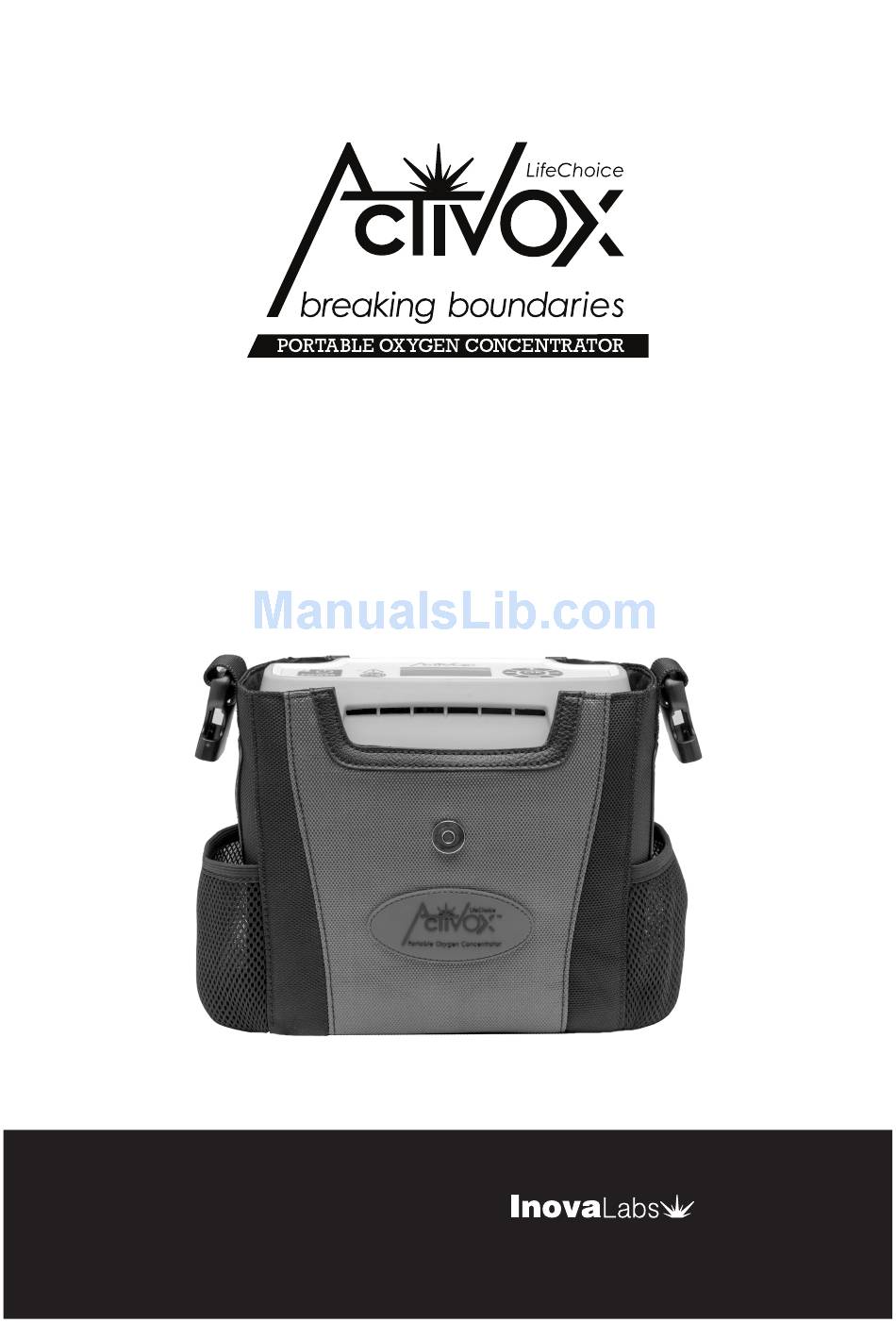

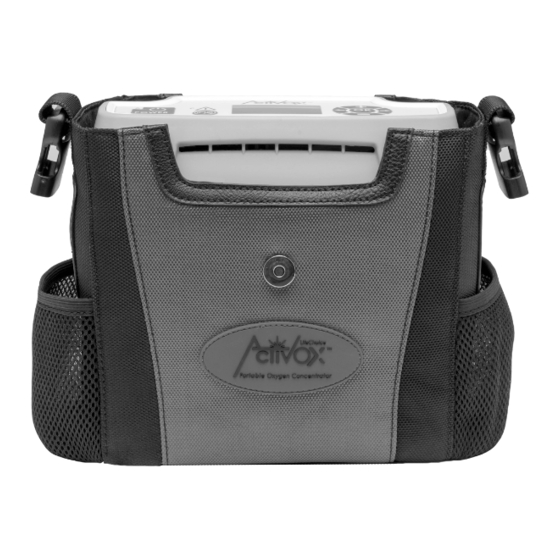

- Page 1 ® ® Operator’s Manual FOR USE WITH MODEL: XYC100B-P4L Manufactured & Distributed by www.InovaLabs.com...
- Page 2 Copyright © 2015 Inova Labs, Inc. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from Inova Labs Inc. Inova Labs Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Application/Indications For Use Symbol Descriptions Warnings Contraindications Adverse Events/Hazards Standard Package Contents User Controls Part Names Operating Instructions Battery Life Timetable Battery Recharge Timetable Repressurization Technology Operating Procedure Normal Operation Indicators Alarm Indicators Carry Case Configuration Instructions Flying With Your POC Routine Cleaning and Maintenance Service Life... -
Page 4: Introduction
It is not life-supporting nor life-sustaining. It may be used continuously in a home, institution or travel environment. The LifeChoice Activox is also portable. This device should be used only when prescribed by a physician. -
Page 5: Symbol Descriptions
SYMBOL DESCRIPTIONS Symbol Description Symbol Description Symbol Description Consult Caution instructions for No smoking Do not No open flame No oil or grease disassemble Temperature Humidity Keep dry limit limitation Compliant with Fragile, handle This side up with care WEEE Date of Class II Manufacturer... -
Page 6: Contraindications
CONTRAINDICATIONS 1. The device is not intended to be life-sustaining or life-supporting. 2. In certain circumstances, oxygen therapy can be hazardous. Please seek medical advice before using this device. 3. The device is designed to provide a flow of high purity oxygen up to 4 LPMeq pulse. -
Page 7: Standard Package Contents
STANDARD PACKAGE CONTENTS LifeChoice Activox 4L POC DC Power Supply Model identified on device and packaging labels. See AC Power Supply Standard 7-Foot (2-meter) 4-Way Carry Case Single Lumen Nasal Use as a backpack, shoulder bag, Cannula* waist pack or briefcase... -
Page 8: User Controls
USER CONTROLS Control Panel Navigation Controls Alarm Indicator Power Indicator Power Button Mute Button Display Screen Alarm Indicator: A red LED will illuminate and an audible signal (tone) will sound if there is a change in operating status or a condition occurs that may need response (alarm). -
Page 9: Display Screen
Display Screen Message Field Mute Symbol External Operating Status Power Symbol Field Flow Setting Level INT and EXT Battery Bars PULSE-WAVE™ Breath Auto Mode Setting Detection Symbol Auto Mode Setting: There are two inhalation sensitivity modes on the device: Active and Rest, which automatically adjust based on your breathing patterns. -
Page 10: Part Names
PART NAMES Charger Port Cannula Nozzle Fitting Control Panel Fan Outlet Vent Fan Inlet Vent External Battery Port Cannula Nozzle Fitting: Connect the nasal cannula to this fitting at the top of the device. Charger Port: Connect the AC or DC Power Supply to this port on the device. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS The LifeChoice Activox POC must be operated and stored in its carry case at all times. BEFORE FIRST USE: 1. Fully charge the device. It can take up to 4 hours to reach a full charge on the Internal Battery. Begin charging by connecting the AC Power Supply to the Charger Port on the device and an electrical outlet. - Page 12 OPERATING INSTRUCTIONS continued 2. AC Power Supply: This power supply allows the device to be powered and charged from a standard 100-240 VAC, 50/60 Hz electrical outlet. When using this option, power from the AC outlet powers the unit and recharges the Internal and/ or External Battery.
- Page 13 OPERATING INSTRUCTIONS continued CHARGING YOUR POC INTERNAL BATTERY CHARGING 1. Connect the device to either an AC or DC Power Supply and corresponding charger to a suitable outlet. 2. Verify that the INT Battery Bar, the External Power Symbol and the message “Charging INT”...
-
Page 14: Battery Life Timetable
OPERATING INSTRUCTIONS continued “BATTERY CHECK” LEDs start flashing, immediately release the buttons. The “BATTERY CHECK” LEDs will flash in sequence as the POC makes communication attempts with the External Battery. If communication is established, the EXT LED will illuminate solid green and the External Battery will begin charging. -
Page 15: Repressurization Technology
REPRESSURIZATION TECHNOLOGY If the unit has not been used for a period of one or more days, it will automatically re-pressurize itself. During this time, you may hear the compressors running for a few seconds. There is no action required on your part, this feature is intended to prolong the life of the device. -
Page 16: Normal Operation Indicators
NORMAL OPERATION INDICATORS During normal operation, the Control Panel and Display Screen should appear as described below: OPERATION DESCRIPTION The word “Active Mode” or “Rest Mode” will appear next to your selected Active or Rest Mode pulse setting. If “Active Mode” is displayed it means your breath rate is Activitated typical for an active user. -
Page 17: Alarm Indicators
ALARM INDICATORS The device will alarm to inform you of conditions that may require your attention or action. Each alarm will trigger: • A repeating audible tone (1 second ON, 2 seconds OFF) sounds • Illuminated red Alarm Indicator on the Control Panel •... -
Page 18: Carry Case Configuration Instructions
6. Adjust straps as needed. Assistance may be required with this step. FLYING WITH YOUR POC The LifeChoice Activox POC is approved by the FAA for use on commercial aircraft. The FAA-approved POC list shows “Inova Labs LifeChoice Activox.” This approval is listed as a part of the labeling on the bottom panel of the device. -
Page 19: Routine Cleaning And Maintenance
ROUTINE CLEANING AND MAINTENANCE The device was designed to minimize the amount of routine maintenance that is required. There are no end-user repairable parts. Aside from the preventative maintenance outlined below, all other maintenance must be performed by qualified service personnel. Fan Inlet Vent Cleaning: There is one inlet vent located on the right side (facing the unit) of the device. -
Page 20: Service Life
The manufacturer recommends that you have an alternative source of supplemental oxygen in the event of power outage, alarm condition or mechanical failure. Although the Activox concentrator will operate 24 hours/7 days per week, daytime/nighttime, (as long as it is charged/... -
Page 21: Specifications
AC Power Supply: Input: 100-240VAC, 50 - 60 Hz; Output: 19VAC, 6.3A DC Power Supply: Input: 11-16VDC, 10A; Output: 19VDC, 6.3A External Battery Power Supply: Battery 12 to16.8 VDC LifeChoice Activox POC Input: 19VDC, 6A Nasal Cannula: 7 ft. (2 m) maximum Environmental Conditions for Use, Storage and Transport Operational Temperature Range: 41°F to 104°F (5°C to 40°C) -
Page 22: Accessories
Accessories, adapters, and cables other than those specified, with the exception of adapters and cables sold by the manufacturer of the medical electrical equipment as replacement parts for internal components, may result in increased emissions or decreased immunity of the Model XYC100B-P4L. -
Page 23: Warranty
WARRANTY LIMITED WARRANTY AND DISCLAIMER (“Limited Warranty”) NOTE: This Limited Warranty provides specific legal rights. The Purchaser may also have other rights which vary from state to state or country to country and in some cases, due to applicable laws, certain limitations or exclusions of this Limited Warranty may not apply. - Page 24 WARRANTY continued accelerates combustion. DO NOT ALLOW SMOKING OR OPEN FLAMES within ten (10) feet (three (3) meters) of these devices while in use. A user’s SMOKING of any kind (including cigarette, cigar, and pipe) while using Product, and evidence that a user has smoked while using the Product, will void all warranties with respect to that Product and related Items.
- Page 25 WARRANTY continued The exterior of the shipping container must clearly display the RMA number which properly identifies the returned Items. The Items must be packaged together with proof of Date of Purchase. Items returned without a proper RMA number and proof of the Date of Purchase shall be refused and returned to Purchaser at Purchaser’s expense.
- Page 26 WARRANTY continued SHALL NOT EXCEED THE PURCHASE PRICE PAID FOR THE ITEMS, REGARDLESS OF THE FORUM AND REGARDLESS OF WHETHER ANY ACTION OR CLAIM IS BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. PURCHASER AGREES AND ACKNOWLEDGES THAT THE ITEMS ARE OF A SIZE, DESIGN AND CAPACITY SELECTED BY ITS MEDICAL PROVIDER.
-
Page 27: Emc Information
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The LifeChoice Activox Portable Oxygen Concentrator Model XYC100B-P4L is intended for use in the electromagnetic environment specified below. The customer or the user of the Model XYC100B-P4L should assure that it is used in such an environment. Immunity Test... - Page 28 Activox Portable Oxygen Concentrator Model XYC100B-P4L ® is intended for use in the electromagnetic environment specified below. The customer or the user of the Model XYC100B-P4L should assure that it is used in such an environment. Immunity Test IEC 60601...
- Page 29 Emissions Test Compliance Electromagnetic Environment - Guidance The Model XYC100B-P4L uses RF energy only for its internal function. Therefore, its RF emissions are Group 1 RF Emissions, CISPR 11 very low and are not likely to cause any interference to nearby electronic equipment.
- Page 30 OWNER’S NOTES...
- Page 31 OWNER’S NOTES...
- Page 32 ® ® Manufactured & Distributed by 3500 Comsouth Drive, Suite 100, Austin, Texas 78744 USA Corporate Office 1.512.617.1700 | www.InovaLabs.com © 2015 Inova Labs Inc. All rights reserved. 12M-400 Rev F April 2015...
