Summary of Contents for KERN FXN-N 3K -3

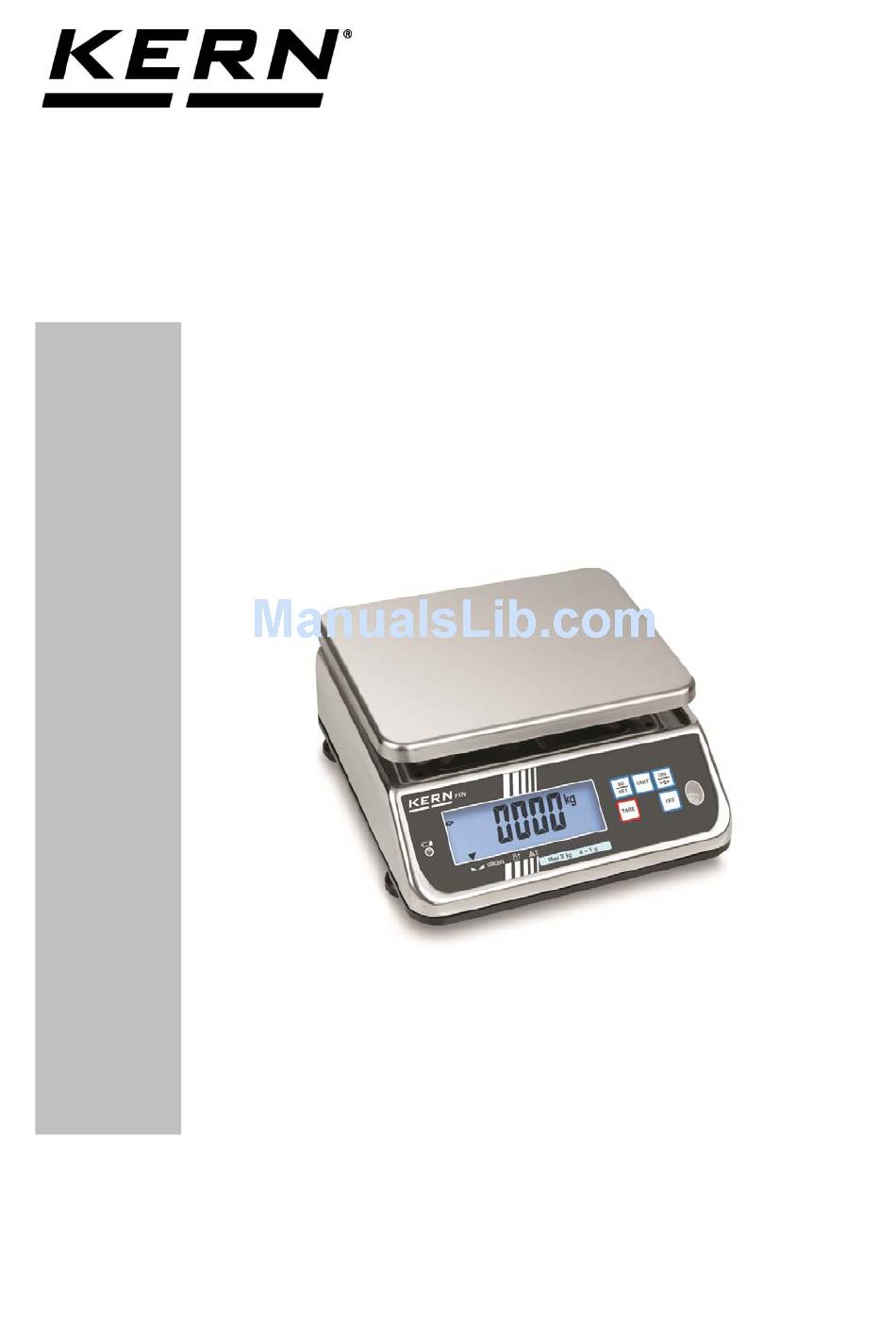

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Compact balance KERN FXN-N Version 1.1 02/2015 FXN-N-BA-e-1511...
-
Page 2: Table Of Contents
KERN FXN-N Version 1.1 02/2015 Operating manual Compact balance Contents Technical data .................... 3 Dimensions..........................4 Appliance overview ..................5 Overview of display ........................ 5 2.1.1 Not verifiable models ......................5 Keyboard overview ......................... 6 Basic Information (General) ..............7 Proper use .......................... -
Page 3: Technical Data
1 Technical data KERN 3K -3 6K -3 10K -3 30K -2 Weighing range (max) 3 kg 6 kg 15 kg 30 kg Readability (d) 10 g Reproducibility 10 g Linearity 10 g 20 g Recommended adjustment 3 kg 6 kg... -
Page 4: Dimensions
1.1 Dimensions FXN-N-BA-e-1511... -
Page 5: Appliance Overview
2 Appliance overview 2.1 Overview of display 2.1.1 Not verifiable models Display Designation Description Zeroing display Should the balance not display exactly zero despite empty scale pan, press the button. The balance will be set to zero after a short standby time. Stability display Scales are in a steady state Net weight display... -
Page 6: Keyboard Overview
2.2 Keyboard overview Button Designation Function ON-button, zero button Switch-on, set to zero OFF-button Switching Off TARE button Tare balance Unit button Switch-over units Switch-over gross weight / net Switch-over button weight FXN-N-BA-e-1511... -
Page 7: Basic Information (General)
In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. FXN-N-BA-e-1511... -
Page 8: Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. All language versions contain a non-binding translation. The original German is binding. -
Page 9: Unpacking, Setup And Commissioning
6 Unpacking, Setup and Commissioning 6.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: ... -
Page 10: Unpacking And Placing
6.2 Unpacking and placing Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. Level balance with foot screws until the air bubble of the water balance is in the prescribed circle. Access to membrane Battery compartment... -
Page 11: Scope Of Delivery
6.2.1 Scope of delivery Serial accessories: Balance Weighing pan Operating manual 4 x 1.5V size D batteries 6.3 Battery operation The operating time of the batteries with background illumination is 200 h, without background illumination 250 h. In menu you can activate the AUTO-OFF function, see chap. - Page 12 Insert 4 x 1.5V size D batteries. Close the battery compartment cover. Move both levers 90° to the right Ensure that the cables are not squeezed. FXN-N-BA-e-1511...
-
Page 13: Initial Commissioning
Info about test weights can be found on the Internet at: http://www.kern-sohn.com Procedure when adjusting: Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. -
Page 14: Adjustment
7.1.1 Adjustment Operation Start balance by pressing Press at the same time in weighing mode. 01 FnC appears Select 02 EC using button Confirm with button The adjustment weight to be used appears. Confirm by pressing the button (the displayed adjustment weight flashes) ... -
Page 15: Operation
8 Operation 8.1 Weighing Start balance by pressing The balance will carry out a self-test As soon as the weight display shows „0.0“ and the triangle symbol above the stability display appears, the scale is ready for weighing. ... - Page 16 The tare weight is saved until it is deleted. Remove the load from the balance and press . The zero display appears and the triangle above the net weight symbol vanishes. Gross weight: Press as long as the weighing container and the object to be weighed are on the weighing plate.
-
Page 17: The Menu
9 The menu 9.1 Navigation in the menu Start balance by pressing In weighing mode press the and the button at the same time. 01 FnC appears Use the button to change between the main menu items. ... -
Page 18: Menu Overview
9.2 Menu overview Menu item Function Access to the settings and functions of the balance. Setting of background lighting Setting Auto-off function Hi / Lo / OK function. (Check weighing) Reset to standard setting Not documented HOLD function Not documented External adjustment FXN-N-BA-e-1511... -
Page 19: Display Background Illumination
9.3 Display background illumination Start balance by Press at the same time in weighing mode. 01 FnC appears Confirm with button FnC 00 appears Use the button to change between the numeric values. Increase the number with button. -
Page 20: Automatic Switch-Off Function Auto-Off
9.4 Automatic switch-off function Auto-Off Start balance by pressing Press at the same time in weighing mode. 01 FnC appears Confirm with button FnC 00 appears Use the button to change between the numeric values. ... -
Page 21: Checkweighing
9.5 Checkweighing In checkweighing an upper and a lower limit value can be established to ensure that the weighed goods are exactly within the established tolerance limits. Start balance by Press at the same time in weighing mode. ... - Page 22 • a 1 = acoustic signal on 0 = acoustic signal off • b 1 = acoustic signal at stable display 0 = acoustic signal at instable display • c 1 = acoustic signal when the weighed material is between the upper and the lower limit value 0 = acoustic signal when the weighed material is outside the both limit values and bigger than 10d...
-
Page 23: Reset To Factory Setting
9.6 Reset to factory setting This function resets all balance settings to factory settings. Start balance by Press at the same time in weighing mode. 01 FnC appears Confirm with button FnC 00 appears Use the button to change between the numeric values. -
Page 24: Hold Function
9.7 Hold function Start balance by Press at the same time in weighing mode. 01 FnC appears Confirm with button FnC 00 appears Use the button to change between the numeric values. Increase the number with button. -
Page 25: Error Messages
10 Error messages Display Description Remedy Zero range exceeded Unload the balance Resetting range has not been Check if the correct weighing reached. plate has been used. Unload the balance and Overload adjust again FXN-N-BA-e-1511... -
Page 26: Instant Help
11 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause The balance is not switched on. The displayed weight does not glow. -
Page 27: Servicing, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 12.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 12.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
