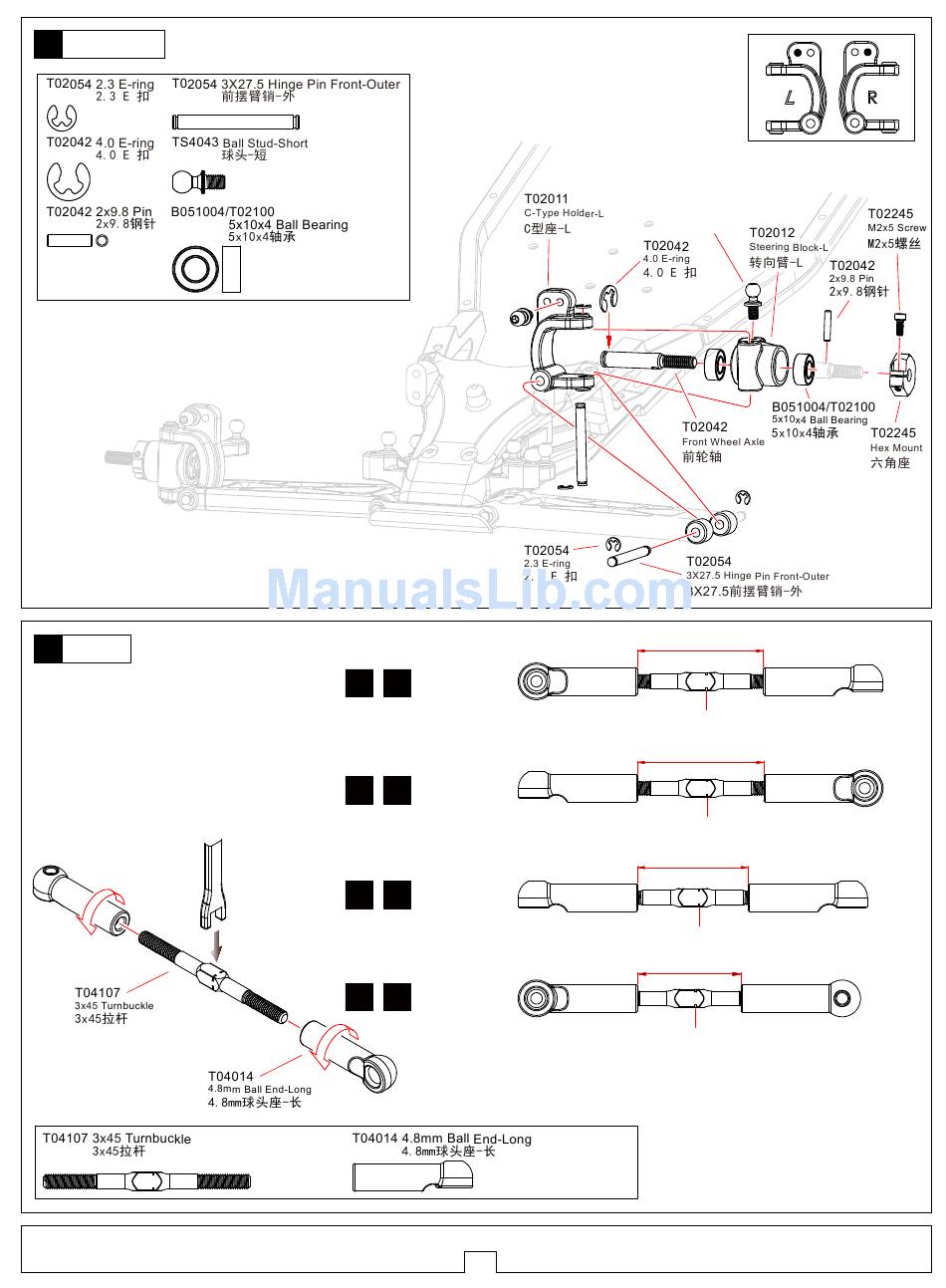

Front Suspension
前悬吊系统
...............8
.............2
.........2
8
Turnbuckle
拉杆
.....................4
........................................4
....................................4
1:1 x1
1:1 x1
4mm
1:1 x2
1:1 x2
...................6
Front Upper-L
前上拉杆-左
Front Upper-R
前上拉杆-右
Steering Tip
转向拉杆
Rear Upper
后上拉杆
..................................12
4
TS4043
Ball Stud-Short
球头-短
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx 24mm
大约24mm
▲Projection.Note direction
注意方向
approx 22.5mm
大约22.5mm
▲Projection.Note direction
注意方向
