Teac CD-W552G Quick Installation Manual

The TEAC CD-W552G is a modern high performance
CD-R / CD-RW drive.
Read - Speed
52 x CD-ROM
Write - Speed
52 x CD-R
32 x CD-RW
Caution:
Use of controls
performance of procedures other than those
specified herein may result in hazardous
radiation exposure.
If the protective housing of the device listed
above is opened without the consideration of
the appropriate processing, serious injuries
may result caused by the effect of the laser
beam.
Components
Drive, Quick Installation Guide;
Kit version only: 4 mounting screws M3x5mm, 40-pin
IDE data cable, audio cable.
The kit version can be identified if the product name
ends with the letter "K" or "Kit".
System requirements
Your Drive supports all major operating systems (with
the exception of Windows 3.1x) and all major hardware
platforms. To get
recommended to use a system environment which's
computing power is equivalent to an IBM compatible
PC with a Pentium II CPU with 300MHz clock frequency
or more, 64MByte RAM or more and a fixed disk with
an access time of 12ms or less.
Important:
To use the Drive, an IDE (ATAPI) controller is
required. The necessary drivers are shipped
with the corresponding controller card or they
are available from the manufacturer of the
controller.
Please do not install your Drive near sources
of radiating heat like hard disks.
TEAC CD-W552G Drive
Quick Installation Guide
or adjustments
the full performance
Drive Installation Directions
There are three possible positions for installation:
Horizontal installation with the eject button to the right,
and vertical installation in both possible directions. The
installation position is not allowed to be tilted more than
5 degrees out of the vertical or 10 degrees out of the
horizontal position. When the drive is vertical mounted
an 80mm disc cannot be played.
Note:
Please use for the installation the fixing holes in
or
the sides or on the bottom of the drive.

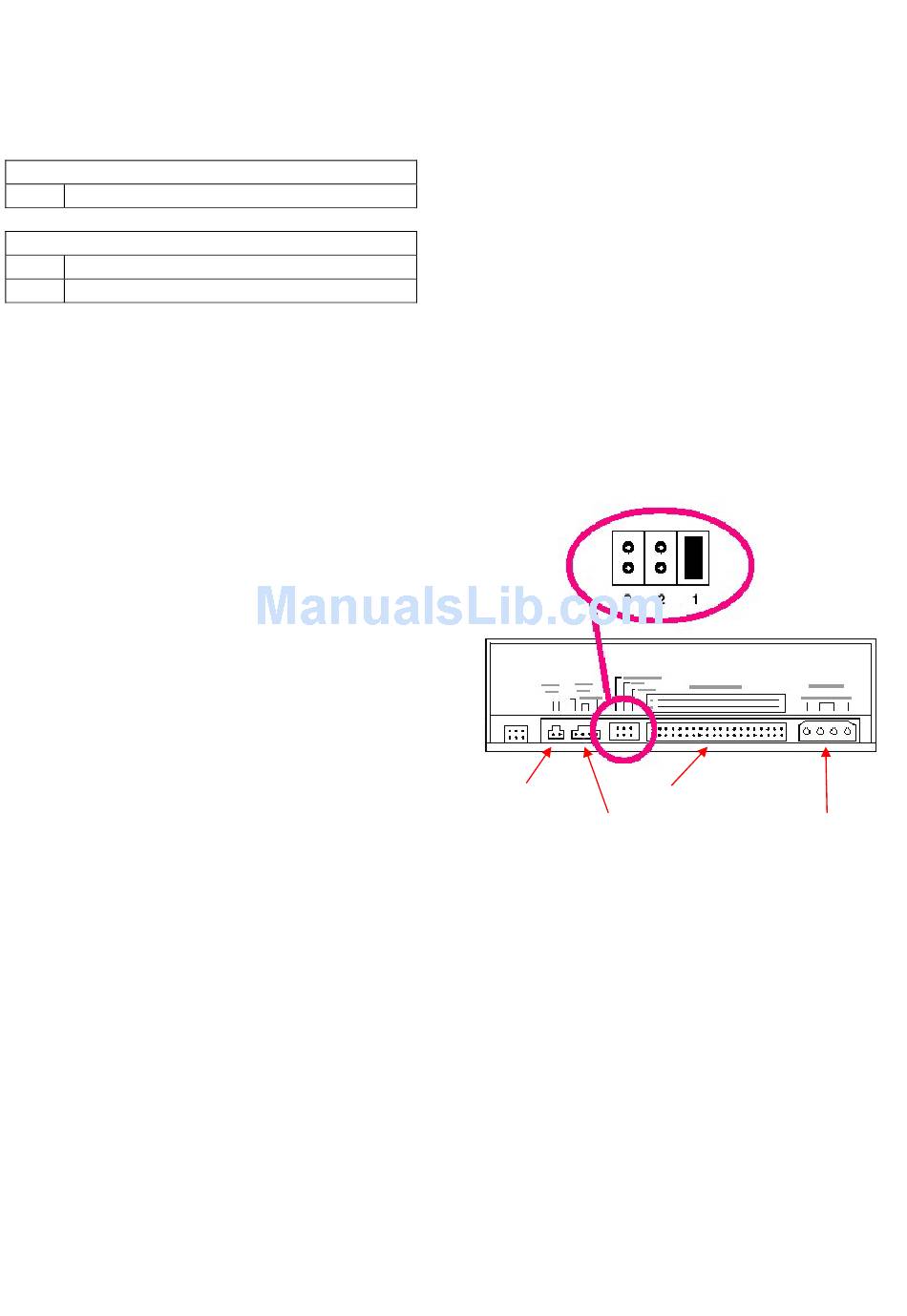

Jumpers for IDE Configuration
The strap (jumper) is factory-preset as shown below:
Digital Audio Output
it is
The Drive can be operated in the modes Cable Select
(3), Master (1) or Slave (2).
Important:
During setting the mode be sure to switch
off respectively disconnect any voltages
connected
"Installation and Connection").
40-pin IDE Cable Connector
Analog Audio Output
to the drive (see
Power Connector
section
