3DE-7887

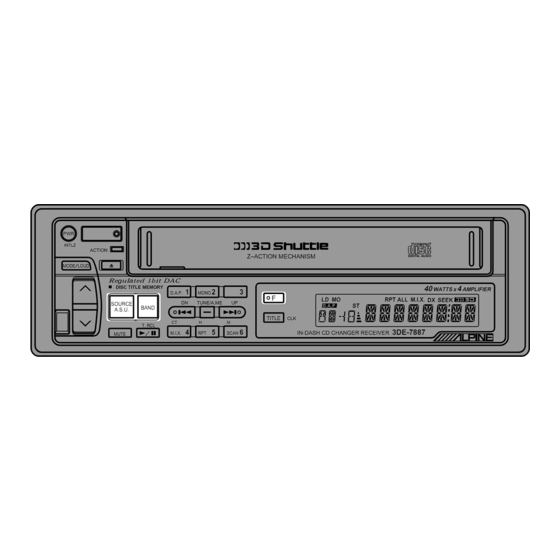

FM/AM In-Dash CD Changer Receiver
• OWNER'S MANUAL
Please read this manual to maximize your
enjoyment of the outstanding performance and
feature capabilities of the equipment, then retain
the manual for future reference.
• MODE D'EMPLOI
Veuillez lire ce mode d'emploi pour tirer
pleinement profit des excellentes performances et
fonctions de cet appareil, et conservez-le pour
toute référence future.
• MANUAL DE OPERACION
Lea este manual, por favor, para disfrutar al
máximo de las excepcionales prestaciones y
posibilidades funcionales que ofrece el equipo,
luego guarde el manual para usarlo como
referencia en el futuro.
PWR
INTLZ
ACTION
MODE/LOUD
Re g ulated 1bit DAC
DISC TITLE MEMORY
SOURCE
A.S.U.
MUTE
40W x 4
Z–ACTION MECHANISM
1
2
3
D.A.P.
MONO
F
LD
MO
DN
TUNE/A.ME
UP
D.A.P
BAND
TITLE
CLK
CT
H
M
T. RCL
4
5
6
IN-DASH CD CHANGER RECEIVER
M.I.X.
RPT
SCAN
Español
R
40
4
WATTS x
AMPLIFIER
RPT
ALL
M.I.X.
DX
SEEK
ST
3DE-7887
1
