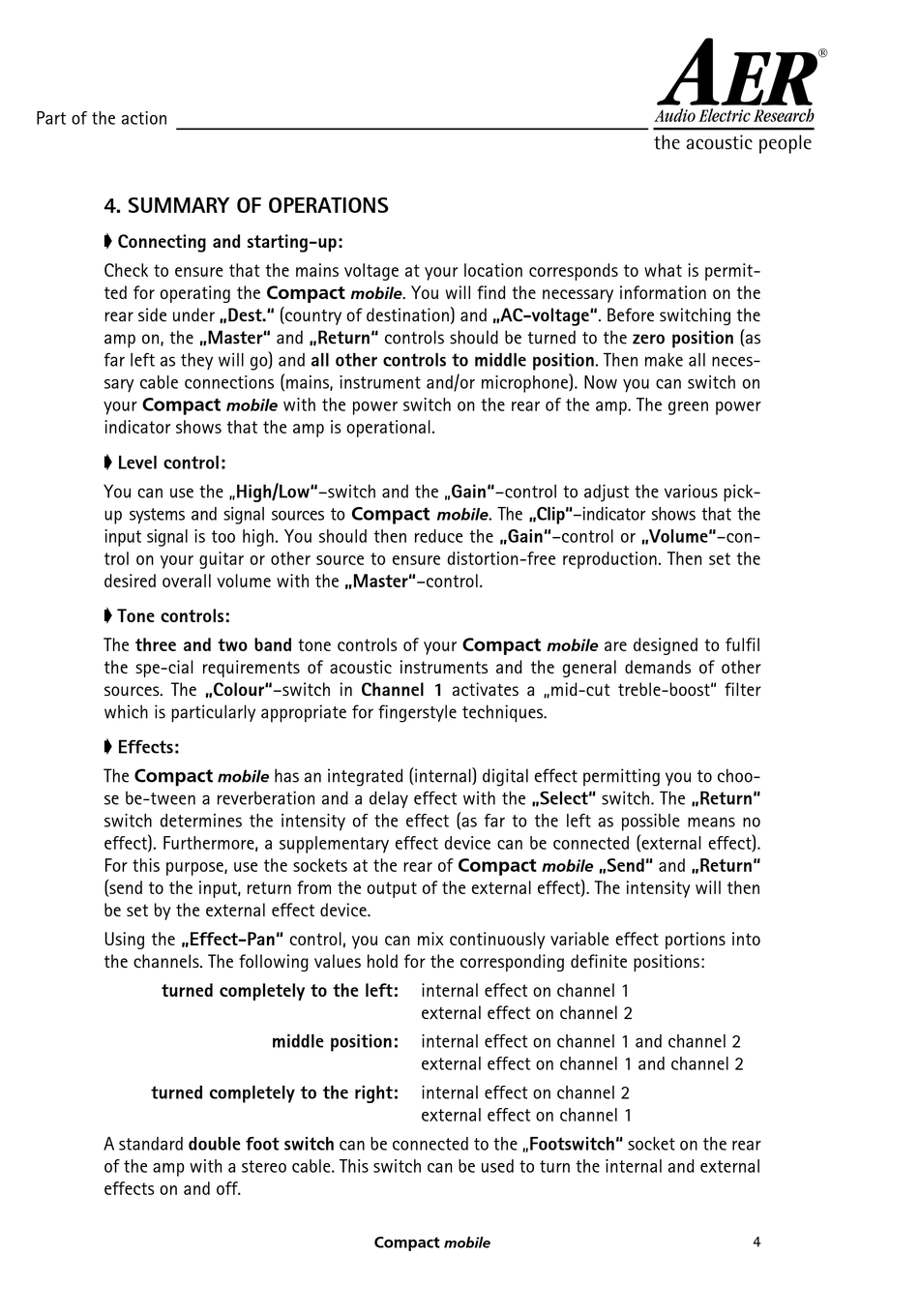

4. SUMMARY OF OPERATIONS
Connecting and starting-up:
Check to ensure that the mains voltage at your location corresponds to what is permit-
ted for operating the Compact
rear side under „Dest." (country of destination) and „AC-voltage". Before switching the
amp on, the „Master" and „Return" controls should be turned to the zero position (as
far left as they will go) and all other controls to middle position. Then make all neces-
sary cable connections (mains, instrument and/or microphone). Now you can switch on
your Compact
indicator shows that the amp is operational.
Level control:
You can use the „High/Low"–switch and the „Gain"–control to adjust the various pick-
up systems and signal sources to Compact
input signal is too high. You should then reduce the „Gain"–control or „Volume"–con-
trol on your guitar or other source to ensure distortion-free reproduction. Then set the
desired overall volume with the „Master"–control.
Tone controls:
The three and two band tone controls of your Compact
the spe-cial requirements of acoustic instruments and the general demands of other
sources. The „Colour"–switch in Channel 1 activates a „mid-cut treble-boost" filter
which is particularly appropriate for fingerstyle techniques.
Effects:
The Compact
se be-tween a reverberation and a delay effect with the „Select" switch. The „Return"
switch determines the intensity of the effect (as far to the left as possible means no
effect). Furthermore, a supplementary effect device can be connected (external effect).
For this purpose, use the sockets at the rear of Compact
(send to the input, return from the output of the external effect). The intensity will then
be set by the external effect device.
Using the „Effect-Pan" control, you can mix continuously variable effect portions into
the channels. The following values hold for the corresponding definite positions:
turned completely to the left:
turned completely to the right:
A standard double foot switch can be connected to the „Footswitch" socket on the rear
of the amp with a stereo cable. This switch can be used to turn the internal and external
effects on and off.
mobile
with the power switch on the rear of the amp. The green power
mobile
has an integrated (internal) digital effect permitting you to choo-
mobile
middle position:
Compact
. You will find the necessary information on the
. The „Clip"–indicator shows that the
mobile
mobile
mobile
internal effect on channel 1
external effect on channel 2
internal effect on channel 1 and channel 2
external effect on channel 1 and channel 2
internal effect on channel 2
external effect on channel 1
