Part of the action

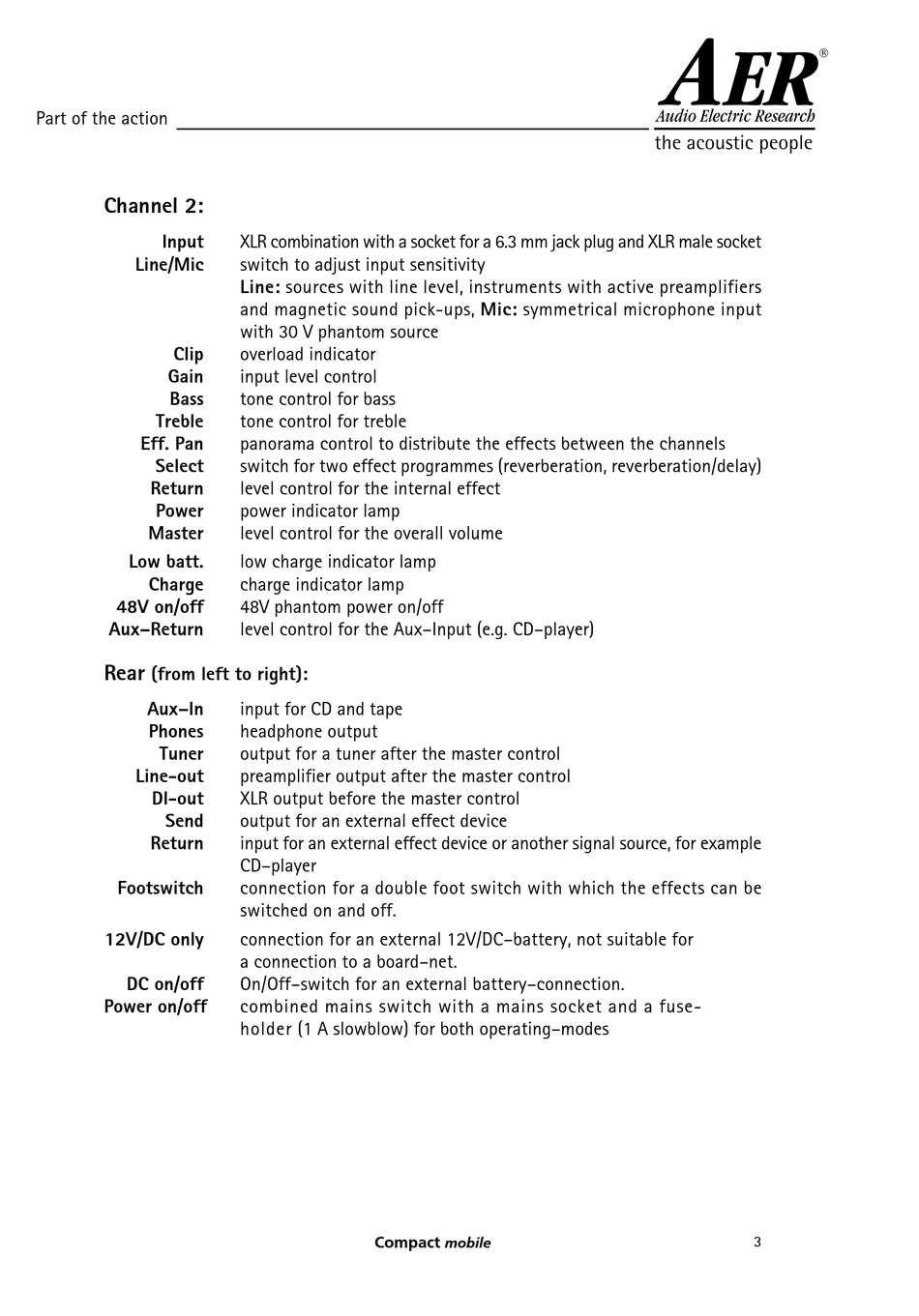

Channel 2:
Input
Line/Mic
Clip
Gain
Bass
Treble
Eff. Pan
Select
Return
Power
Master
Low batt.
Charge
48V on/off
Aux–Return
Rear
(from left to right):
Aux–In
Phones
Tuner
Line-out
DI-out
Send
Return
Footswitch
12V/DC only
DC on/off
Power on/off
XLR combination with a socket for a 6.3 mm jack plug and XLR male socket
switch to adjust input sensitivity
Line: sources with line level, instruments with active preamplifiers
and magnetic sound pick-ups, Mic: symmetrical microphone input
with 30 V phantom source
overload indicator
input level control
tone control for bass
tone control for treble
panorama control to distribute the effects between the channels
switch for two effect programmes (reverberation, reverberation/delay)
level control for the internal effect
power indicator lamp
level control for the overall volume
low charge indicator lamp
charge indicator lamp
48V phantom power on/off
level control for the Aux–Input (e.g. CD–player)
input for CD and tape
headphone output
output for a tuner after the master control
preamplifier output after the master control
XLR output before the master control
output for an external effect device
input for an external effect device or another signal source, for example
CD–player
connection for a double foot switch with which the effects can be
switched on and off.
connection for an external 12V/DC–battery, not suitable for
a connection to a board–net.
On/Off–switch for an external battery–connection.
combined mains switch with a mains socket and a fuse-
holder (1 A slowblow) for both operating–modes
Compact
mobile
A
3
