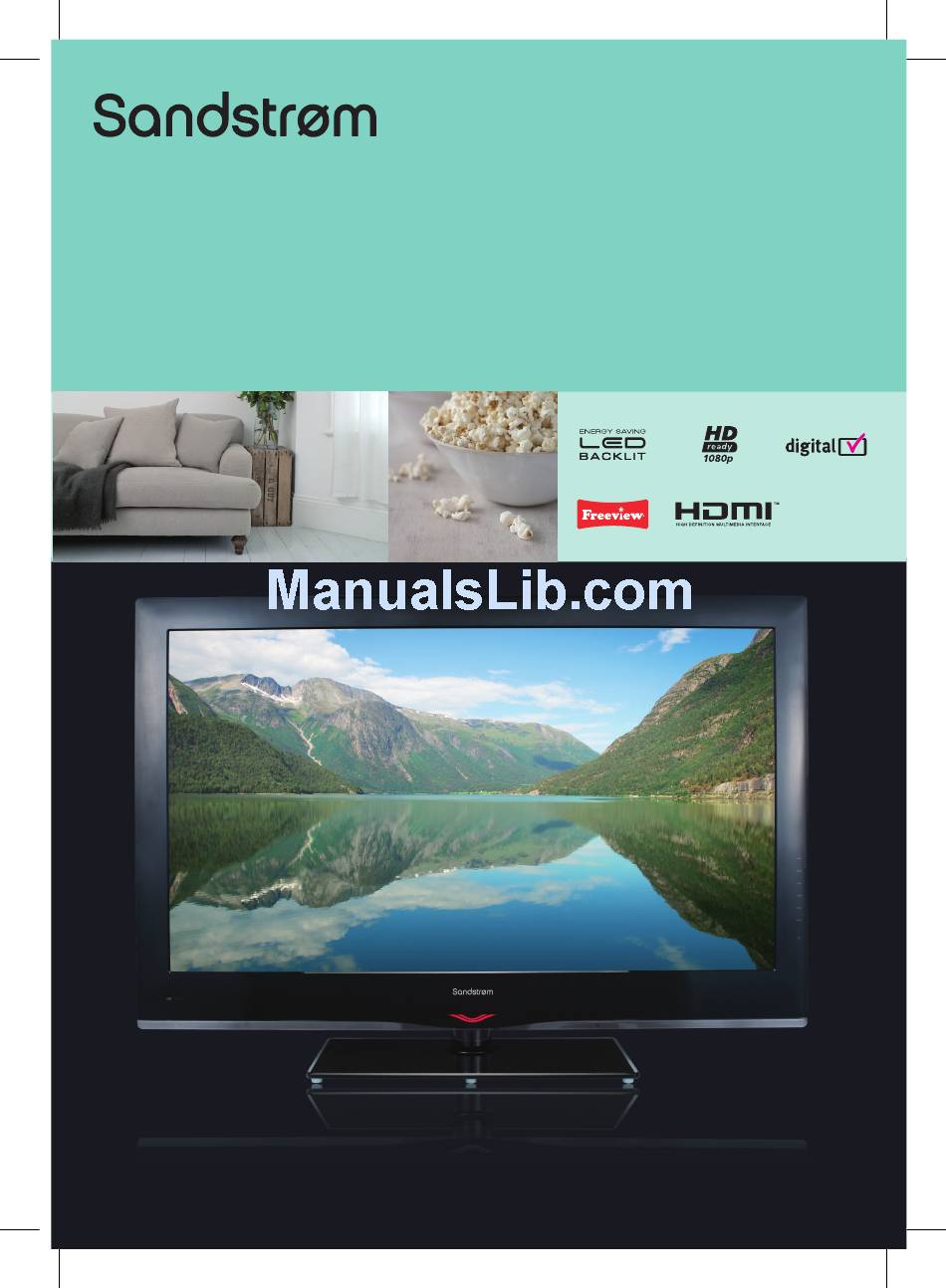

Page 1: Instruction Manual

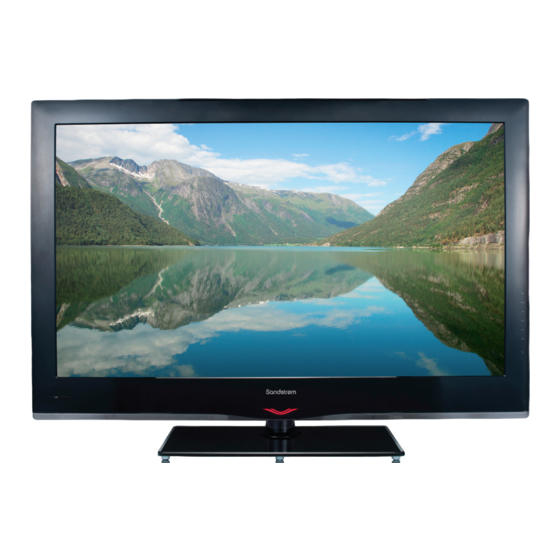

Instruction Manual 40” / 46” HD Ready 1080p LED Backlit LCD TV S40LDIB10 / S46LDIB10... -
Page 3: Table Of Contents
Contents Unpacking the TV ........................................3 Preparation ....................................3 Installing / Removing the Base Stand ................................4 Front View and Controls .......................................5 Rear View and Sockets ......................................6 Installing Batteries in the Remote Control ..............................7 Remote Control Operation Range ..................................7 Remote Control ........................................8 Connections .................................... - Page 4 Teletext (TV Mode) ......................................32 − To Turn on Teletext Function ................................32 Digital Teletext (DTV Mode) ..................................... 33 − Teletext within Digital Service ................................33 EPG (Electronic Programme Guide) (DTV Mode) ............................. 33 − Switch On/Off EPG ....................................33 −...
-
Page 5: Unpacking The Tv
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: TV Base Screws x 4 S40LDIB10 part number:1062367 part number 1044008 S46LDIB10 part number:1062617 CH List... -
Page 6: Installing / Removing The Base Stand
Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack. -
Page 7: Front View And Controls
Front View and Controls Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates red when the TV is in standby mode and flashes for a few seconds when POWER LED you turn on the TV. -
Page 8: Rear View And Sockets
Rear View and Sockets COMMON INTERFACE ANT 75 Ω 5V 50mA/Output Item Description MAINS CABLE Connect the mains cable to the mains socket. Connect to a VCR, DVD Player, or other AV devices with SCART output socket by using the SCART SCART adapter cable provided. -
Page 9: Installing Batteries In The Remote Control
Installing Batteries in the Remote Control Slide the back cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. -
Page 10: Remote Control
Remote Control 1 Transmission Indicator Illuminates red when you press a button. TV/DTV Source Switch the TV between on and standby mode. 3 TV/DTV A short-cut to switch the input source between TV and DTV. 4 Source Select among the different input signal sources: DTV / TV / SCART / AV / Component / VGA / HDMI1 / HDMI2 / HDMI3 / HDMI4 / DMP. - Page 11 21 Radio / Browse A short-cut switch to digital radio channels directly. TV/DTV Source (DTV only) To browse photos in thumbnail view. (DMP mode) Rotate Rotate the picture clockwise by 90°. Lang. / Page up Change the audio language or audio channel. (DTV mode) To skip to previous page.
-
Page 12: Connections
Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connections procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete. -
Page 13: Connecting A Computer With Dvi To Hdmi Adapter Or Cable
Connecting a Computer with DVI to HDMI Adapter or Cable Audio Cable (not included) DVI to HDMI Adapter / Cable (not included) Computer Use a DVI to HDMI adapter or cable to connect the TV’s DVI / HDMI1 input socket to a computer's DVI output socket. Use an audio cable to connect the TV's DVI AUDIO input socket to the computer's audio output socket. -
Page 14: Connecting An Av Device With Component (Ypbpr) Cable
Connecting an AV Device with Component (YPbPr) Cable Pr/Cr COMPONENT Pr/Cr Pb/Cb Component Cable (not included) Blu-ray Player / DVD Player / Pb/Cb Recorder Game Console Red (R) Red (R) Red (R) Set-top Box White (L) White (L) White (L) Earphone to Video Camera Audio Cable... -
Page 15: Connecting An Av Device With Composite Cable
Connecting an AV Device with Composite Cable Game Console DVD Player / Recorder Yellow (VIDEO) Yellow (VIDEO) AV Cable (not included) White (L) White (L) White (L) Video Camera Set-top Box Red (R) Red (R) Red (R) Earphone to Audio Cable (included) Satellite Receiver Use the supplied earphone to audio cable and an AV cable to connect the TV’s AUDIO(L/R)/VIDEO input sockets to an external... -
Page 16: Connecting A Usb Storage Device
Connecting a USB Storage Device USB Cable (not included) Portable Adapter Hard Disk Switch off the TV before connecting any USB storage device. Connect your USB storage device to the USB port of your TV. I/O POWER ON/OFF switch at the bottom of the Plug the connected devices into the mains socket before switching on the Press the button to turn on your TV. -
Page 17: Turning The Tv On For The First Time
Initial Setup Turning the TV On for the First Time Connect the mains cable to the mains socket after you have completed all the connections. Switch on the I/O POWER ON/OFF switch at the bottom of the TV. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV. -
Page 18: Selecting The Input Source
Press the button to highlight Country and then press the buttons to select the country where you will operate the TV. I n s t a l l a t i o n G u i d e Mode Setting Home Mode Language English... -
Page 19: Channel Selection
Channel Selection buttons on the remote control repeatedly or the 0-9 • Press the buttons to select the channel. Alternative In DTV mode, press the CH List button to display the Channel List. Press the buttons to select a channel and then press the OK button to view the selected channel. -
Page 20: Using The Features
Using the Features Customising the Channel Setting (TV, DTV or Radio Mode) Auto Install Use this to automatically find and store all available channels. This is normally recommended if some channels have been added/ removed by the broadcaster or you have moved house. Press the Menu button and then press the buttons to select the... -
Page 21: Dtv Manual Install
DTV Manual Install Allows you to make manual fine tuning adjustments of the channel under DTV mode. Press the Menu button and then press the buttons to select the Channel menu. Press the button to select DTV Manual Install and then press the OK button or the button to confirm. -
Page 22: Programme Edit
Programme Edit Allows you to edit TV programmes in the Channel List. Press the Menu button and then press the buttons to select the Channel menu. Press the button to select Programme Edit and then press the OK button or the button to confirm. -
Page 23: Ci (Common Interface) (Dtv Mode)
CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider. -
Page 24: Customising The Picture Setting
Customising the Picture Setting Allows you to set your preferred picture mode. Menu button and then press the buttons to select the Picture menu. Press the P i c t u r e Picture Mode Standard Brightness Contrast Colour Sharpness Tint Select Adjust... -
Page 25: Customising The Sound Setting
Aspect Ratio Zoom This selection will allow you to view the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped. Smart This selection is similar to 16:9 mode, but shows more Zoom of the horizontal sides and clips off a little from the top and bottom. -
Page 26: Customising The Screen Settings (Vga Mode)
Customising the Screen Settings (VGA Mode) Allows you to adjust the computer's desktop content. Menu button and then press the Press the buttons to select the Screen menu. S c r e e n Press the buttons to highlight an individual screen Position option. Position Clock Press the... -
Page 27: Subtitle Language (Dtv Mode)
Press the buttons to select the primary audio language and then press button to select the secondary audio language. Press the button Function to select the close and then press the OK button to return to the previous Language English menu. -
Page 28: Hard Of Hearing
Hard of Hearing Shows information for the hearing-impaired in some programmes. (For digital channels only if available.) Menu button and then press the Press the buttons to select the Function menu. Function Press the button to select Hard of hearing and then press the buttons to select On / Off. -
Page 29: Blue Screen
Blue Screen Allows the blue background to turn On / Off during weak or no signal conditions. Menu button and then press the Press the buttons to select the Function menu. Function Press the button to select Blue Screen and then press the buttons to select On / Off. -
Page 30: Parental Control
Clock The clock time will be set automatically when receiving a digital signal (Auto Sync set to Auto). If a digital signal is not received then you may manually set the clock time (Auto Sync set to Manual). You must set the time correctly before using Sleep Timer function. Sleep Timer The sleep timer automatically switches the TV to standby after the preset time has elapsed. -
Page 31: Block Programme
Change Password Press the Menu button and then press the buttons to select the Function menu. Function button to select the Parental Control and then press the OK Press the button or the button. Aerial Power Press the 0-9 buttons to enter the password to enter the Parental Control sub-menu. -
Page 32: Factory Reset
A Block Channel List will pop up. Press the buttons to select a channel. Block Programme Press the GREEN button on the remote control to block the channel. Press the GREEN button again to unblock. Press the Menu button to return to the previous menu. Exit button to exit the menu. -
Page 33: Display Area
Display Area Select the display mode. (HDMI Mode). Menu button and then press the Press the buttons to select the Function menu. F u n c t i o n Press the button to select Display Area and then press the buttons to Display Area Zoom... -
Page 34: Teletext (Tv Mode)
Teletext (TV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. -
Page 35: Digital Teletext (Dtv Mode)
Digital Teletext (DTV Mode) Some programmes are broadcast with digital teletext and special services, these can be identified in the Info screen when "MHEG" is displayed. Subtitles will vanish while the digital teletext is displayed. Teletext within Digital Service CH List button to display the Channel List. Press the In DTV mode, press the buttons and then press the OK button to select the teletext channel. -
Page 36: View A Programme
View a Programme Press the buttons to select the desired channel and the buttons to view programme schedule. Button Functions in a 7 Days Guide Remote Control Button Function Press the GREEN button to view the preset SCHEDULE LIST reminders in the Schedule List. 01 Jul 2004 03: 00 Title Time Date... -
Page 37: Photos
Using the Features via USB Port Photos Source button to display the Input Source List. Press the Press the buttons to select DMP and then press the OK button or the button to enter the DMP menu. MOVIE TEXT PHOTO MUSIC buttons to select Photo and then press the OK button to Press the... -
Page 38: Movie
Movie Source button on the remote control to display the Input Source Press the List. Press the buttons to select DMP and then press the OK button or button to enter the DMP menu. PHOTO MUSIC MOVIE TEXT buttons to select Movie and then press the OK button to Press the \(2)\ enter the movie sub-directory. -
Page 39: Maintenance
Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the I/O POWER ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. Use a soft dry cloth to wipe away the dust from the screen and surfaces. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. - Page 40 The audio function does not work. • Press the buttons on the right side of the front panel or VOL buttons on the remote control. Picture OK but no sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No output from one of the speakers Balance settings in the Sound menu.
-
Page 41: Display Modes
Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr Mode Resolution Vertical Frequency (Hz) -
Page 42: Specification
Specification Model S40LDIB10 S46LDIB10 Panel System 40 inch LCD panel 46 inch LCD Panel 1920 pixels (horizontal) x 1920 pixels (horizontal) x Display Resolution 1080 pixels (vertical) 1080 pixels (vertical) Television System PAL I/BG/DK, SECAM L/BG/DK PAL I/BG/DK SEACAM L/BG/DK... -
Page 43: Safety Warnings
Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. - Page 44 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level.
- Page 45 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number S40LDIB10: 1062367 TV Base S46LDIB10: 1062617 Screws x 4 1044008 Remote Control 1065888 AAA Batteries x 2 1028333...
