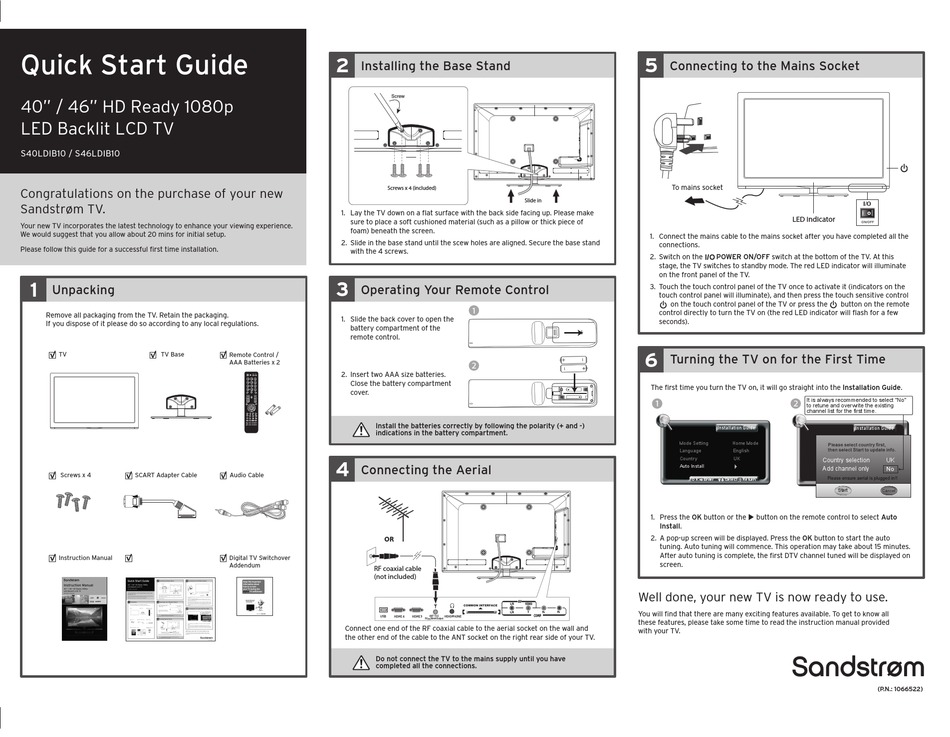

Quick Start Guide
40" / 46" HD Ready 1080p
LED Backlit LCD TV
S40LDIB10 / S46LDIB10
Congratulations on the purchase of your new
Sandstrøm TV.
Your new TV incorporates the latest technology to enhance your viewing experience.
We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
1
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to any local regulations.
TV TV Base
Screws x 4 SCART Adapter Cable
Instruction Manual
2
Installing the Base Stand
Screws x 4 (included)
1. Lay the TV down on a flat surface with the back side facing up. Please make
sure to place a soft cushioned material (such as a pillow or thick piece of
foam) beneath the screen.
2. Slide in the base stand until the scew holes are aligned. Secure the base stand
with the 4 screws.
3
Operating Your Remote Control
1. Slide the back cover to open the
battery compartment of the
remote control.
Remote Control /
AAA Batteries x 2
2. Insert two AAA size batteries.
TV/DTV Source
1 2 3
Close the battery compartment
4 5 6
7 8 9
cover.
Recall Recall 0 Info
FAV Picture Sound
VOL CH
Menu
EPG
OK
CH List
Still Zoom Exit
Browse Page up Page down
Radio Rotate Lang. Subtitle
Play/Pause Stop
DMP PVR
Text Size Reveal Cancel Install the batteries correctly by following the polarity (+ and -)
Sleep
Hold Index Sub.Code Mix
indications in the battery compartment.
4

Connecting the Aerial

Audio Cable
OR
Digital TV Switchover
Addendum
RF coaxial cable
(not included)
Connect one end of the RF coaxial cable to the aerial socket on the wall and
the other end of the cable to the ANT socket on the right rear side of your TV.
Do not connect the TV to the mains supply until you have
completed all the connections.
Slide in
1
2
COMMON INTERFACE
ANT 75 Ω
5V 50mA/Output
5
Connecting to the Mains Socket
To mains socket
LED indicator
1. Connect the mains cable to the mains socket after you have completed all the
connections.
2. Switch on the I/O POWER ON/OFF switch at the bottom of the TV. At this
stage, the TV switches to standby mode. The red LED indicator will illuminate
on the front panel of the TV.
3. Touch the touch control panel of the TV once to activate it (indicators on the
touch control panel will illuminate), and then press the touch sensitive control
on the touch control panel of the TV or press the
control directly to turn the TV on (the red LED indicator will flash for a few
seconds).
6

Turning the TV on for the First Time

The first time you turn the TV on, it will go straight into the Installation Guide.
It is always recommended to select "No"
1 2
to retune and overwrite the existing
channel list for the first time.
I n s t a l l a t i o n G u i d e
Mode Setting Home Mode
Mode Setting
Language English Language
Country UK
Country
Auto Install
Auto Install
OK Enter Select Return
1. Press the OK button or the  button on the remote control to select Auto
Install.
2. A pop-up screen will be displayed. Press the OK button to start the auto
tuning. Auto tuning will commence. This operation may take about 15 minutes.
After auto tuning is complete, the first DTV channel tuned will be displayed on
screen.
Well done, your new TV is now ready to use.
You will find that there are many exciting features available. To get to know all
these features, please take some time to read the instruction manual provided
with your TV.
I/O
button on the remote
I n s t a l l a t i o n G u i d e
Home Mode
English
Country selection UK UK
Add channel only
Please ensure aerial is plugged in!!
Select Adjust Return
Start
(P.N.: 1066522)
