Reloop IQ2+ Operation Manual page 24

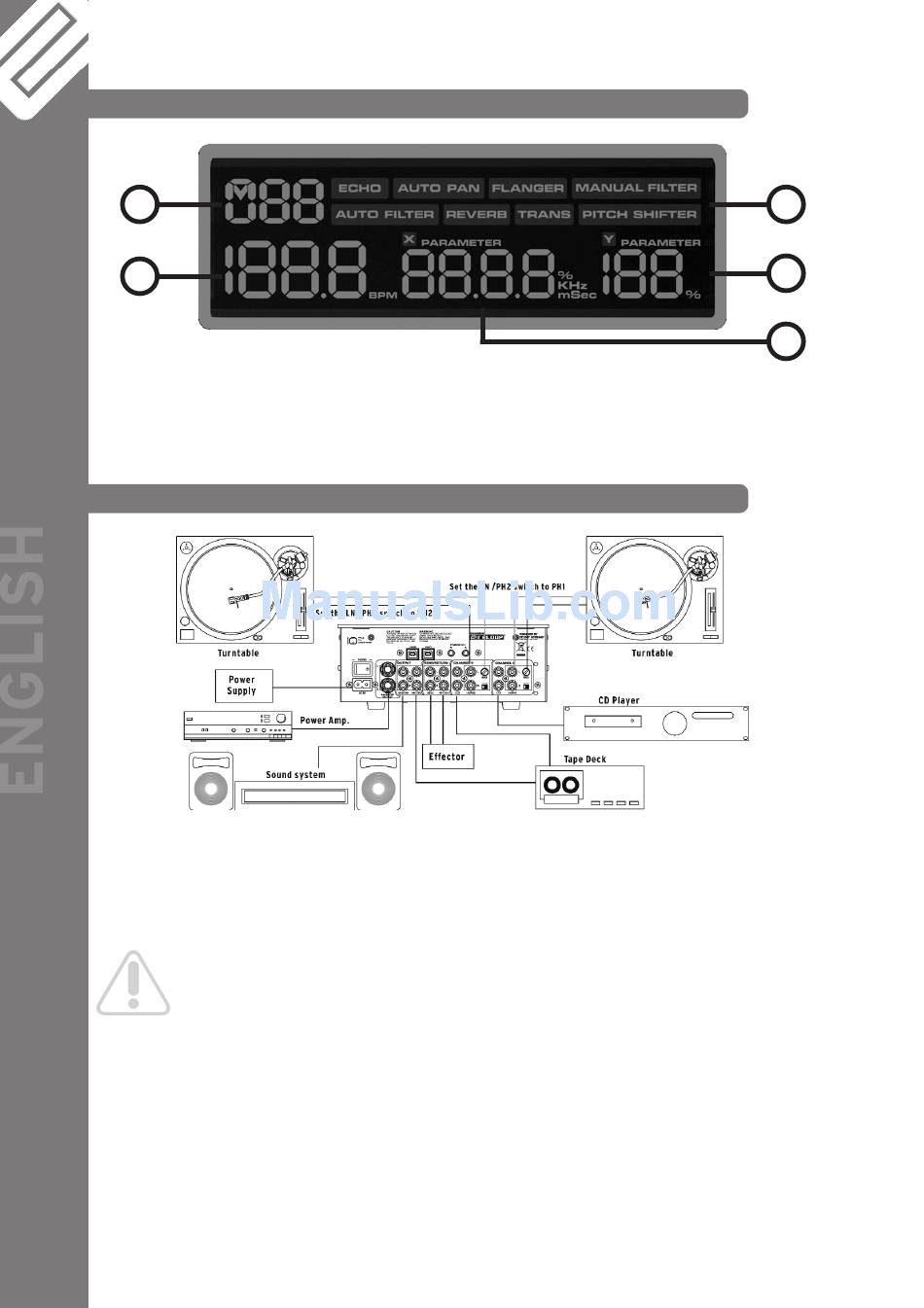

DESIGNATIONS LCD INFO DISPLAY -13-
I
II
I...............Channel assignment indicator
II..............BPM indicator
III.............X parameter indicator
IV.............Y parameter indicator
V..............Effect selection indicator
CONNECTIONS
1.
ATTENTION!
Please always make sure that the device is turned off when using the
phono/line switches -30-.
2. Connect the grounding cables of your turntables with the GND grounding
3. Connect your microphone to the microphone input -39-.
4. Connect your headphones via the headphones input 1 -44- (6.3 mm jack).
24
Connect your line sources (CD players, MD players, etc.) and your turntables
via the inputs for channels A + B -31-. If you wish to connect turntables to the
phono inputs make sure to put the phono/line switch(es) -30- to the "PH"
position; when connecting line sources to these inputs you have to put the
phono/line switch(es) -30- to the "LN" position.
screws of your mixer -29-.
Alternatively or if required you can connect a second pair of headphones
with the headphones input 2 -45- (3.5 mm jack).
V
IV
III
