DPXH46GACC/WW—GE Profile

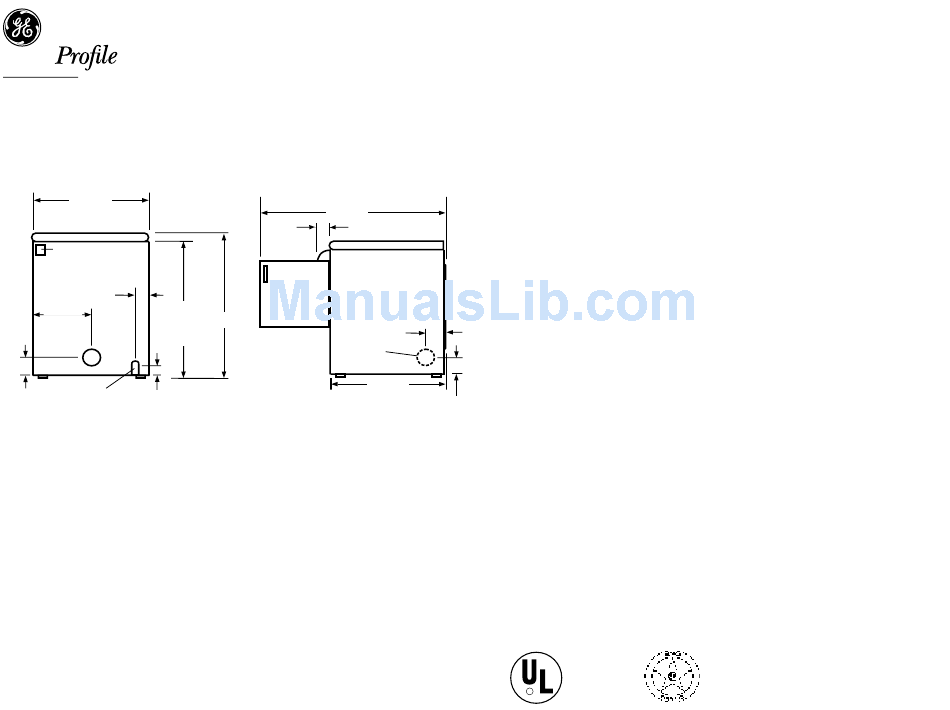

Dryer Dimensions (in inches)
26-7/8
Electric
Connection
2-9/16
Under
13-9/16
Counter
34-5/8"
3-3/4
1
3/16"
Gas Pipe Connection
REAR VIEW
Specification Revised 2/02
Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
47-1/2
3/4
36
4-3/8
Door Open
90°
Optional
Vent Knockout
25-3/4
SIDE VIEW
Exhaust Options:
When viewed from the front of the unit, exhaust 3-way via rear, right and bottom. Dryer is
shipped exhausted to the rear. Alternate exhausting knockouts are supplied.
Gas Dryer Electric Rating: 120V, 60Hz, 6A
An individual properly-grounded branch circuit, with a three-prong grounding-type receptacle,
protected by a 15 or 20 amp circuit breaker or a time-delay fuse is required.
Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas supply
requires a conversion kit. Check installation instructions for correct kit and have a qualified
gas technician install a conversion kit. See dryer ducting information for proper installation.
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible
when dryer is mounted in position.
4-3/4
Installation Information: For complete information, see installation instructions packed
with your dryer.
