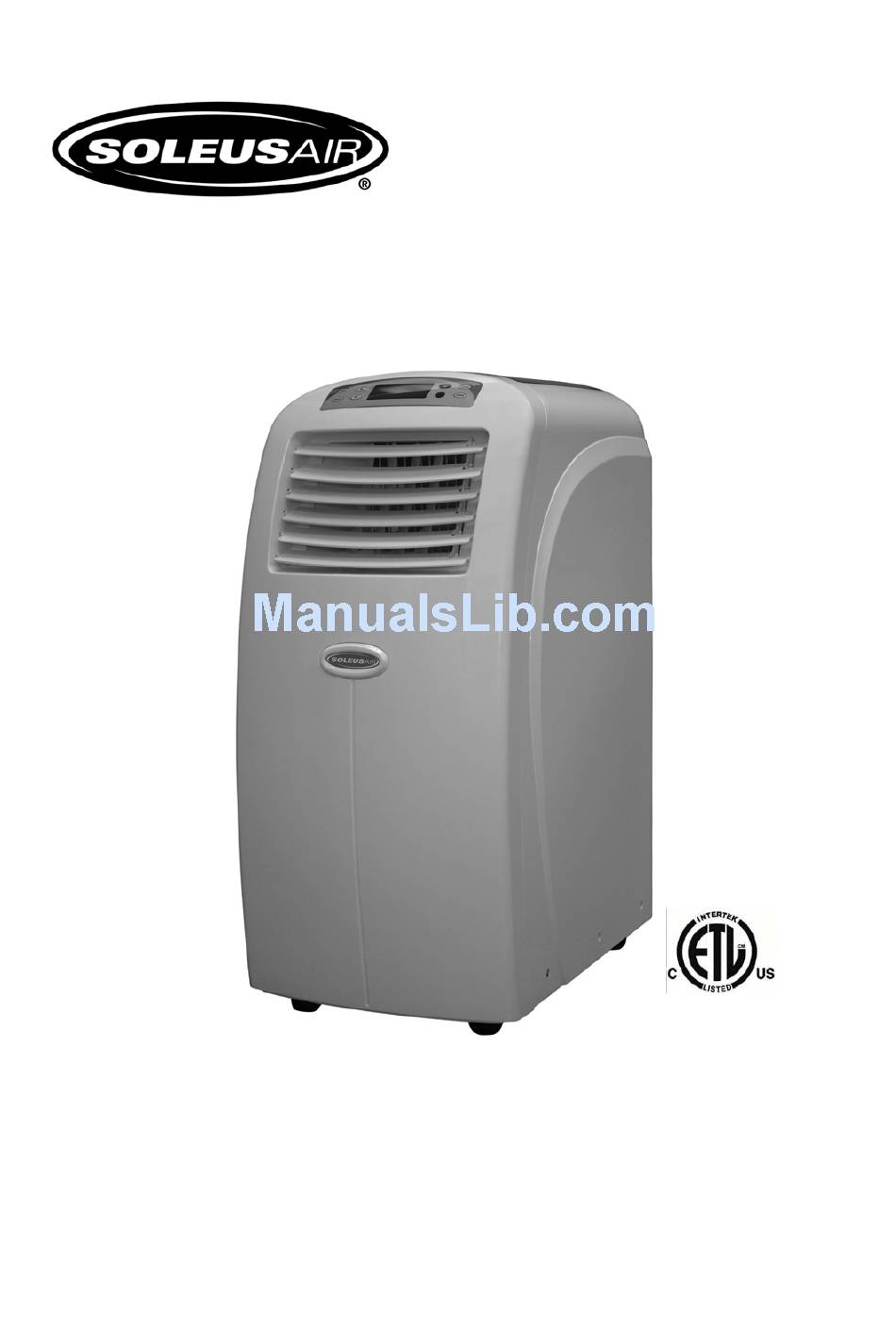

- Page 1 Portable Air Conditioner, Dehumidifier,Heater and utilizing Heat Pump Technology OWNER'S MANUAL KY-34 Sales Inquiries: 800-934-9194 Model # 3046364 Please read owner’s manual carefully before operating unit.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION................................3 IMPORTANT SAFEGUARDS ............................4 LCDI POWER CORD AND PLUG..........................5 PRODUCT DIAGRAM ..............................6 INSTALLATION................................7 CONTROL PANEL AND MULTI-COLOR DISPLAY ....................9 CONTROL PANEL FUNCTIONS ..........................10 OPERATION USING THE CONTROL PANEL ......................10 COOLING.................................. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Soleus Air KY-34 14,000 BTU Portable Air Conditioner and Heater. This unit is designed to improve indoor living and working comfort by providing cooling, dehumidifying, heating, and ventilation with minimal installation. This multi-functional unit operates as an air conditioner, dehumidifier, heater, and fan. Unlike traditional portables, there is no bucket to empty. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before installing and using your portable air conditioner and heater, it is important that you read this owner’s manual carefully. Store this manual in a safe place for future reference. This instruction manual is used for guidance and does not form part of a contract. It reserves the right to make technical changes without prior notice. -
Page 5: Lcdi Power Cord And Plug
3. Press RESET button for use If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 6: Product Diagram
PRODUCT DIAGRAM FRONT A. Control panel B. Vertical air louvers C. Air outlet D. Horizontal air louvers E. Casters F. Cable (power cord and plug) BACK A. Hot air outlet grill B. Lower air inlet grill ACCESSORIES Flexible exhaust hose with adapters •... -
Page 7: Installation
INSTALLATION SELECTING THE LOCATION Place the unit in a flat location where the air outlets are not obstructed. Place the unit at least 20” (50cm) away from a wall or other obstacle. MOUNTING THE EXHAUST HOSE Slide the square end of the exhaust duct over the hot air outlet on the back of the unit. - Page 8 WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows. However, it may be necessary to modify some aspects of the installation process for certain window types. 1. Open the window or sliding door and adjust the length of the window kit to fit the opening.
-
Page 9: Control Panel And Multi-Color Display
CONTROL PANEL AND MULTI-COLOR DISPLAY CONTROL PANEL FAN SPEED During the modes of cooling, heating and fanning, press this button to choose high, medium or low fan Button speed. In dehumidifying mode, this button is inoperable. SWING Button Press this button to oscillate the vertical louvers or to stop oscillation. ∨... -
Page 10: Control Panel Functions
CONTROL PANEL FUNCTIONS ON/OFF BUTTON Starts or stops the unit. MODE BUTTON Press to select the operating mode: Fan Mode Air Conditioning Mode Heating Mode Dehumidifying Mode Auto Mode FAN BUTTON Press to select the fan speed: High, Medium, and Low. The fan speed can be visually distinguished by the number of the digital air segments (follow arrow above) flow out from the windmill fan image on the multi-color display. -
Page 11: Dehumidifying
the lowest and the fan speed at the highest. Reducing the length of the exhaust hoses, insulating the exhaust hoses, and keeping direct sunlight to a minimum will also improve the cooling efficiency. DEHUMIDIFYING 1. Properly install the exhaust hoses. 2. -
Page 12: Sleep Mode
SLEEP MODE (This mode can only be programmed from the remote control.) 1. The air conditioner will need to be in operation. 2. Press the Sleep button. The “ ” icon appears on the multi-color display. 3. The fan motor runs at low speed. °... - Page 13 WATER DRAINAGE When the unit is in cooling mode, unwanted water is extracted from the air. Most of this water is used to cool the unit and make it run more efficiently. When the unit is used in extremely humid environments, water will collect in a water container at the bottom of the unit.
-
Page 14: Maintenance
MAINTENANCE Always turn off and unplug the unit before cleaning to avoid electrical shock. CLEANING THE HOUSING Wipe the surface of the unit with a soft, damp cloth. Do not use abrasive chemicals or detergents to clean the surface of the unit, as the unit may become scratched or damaged. -
Page 15: Troubleshooting
TROUBLESHOOTING Before seeking repair or service, please check the following: PROBLEM POSSIBLE CAUSE REMEDY Is the unit plugged in? Securely plug the power cord into the wall outlet. Is the main power supply on? Reestablish the main power supply. Unit does not operate or only runs in fan mode. -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL PH1-14R-03 PH1-10R-03 KY-34 Cooling Capacity 14,000 BTU/Hr 12,000 BTU/Hr 10,000 BTU/Hr Heating Capacity 14,200 BTU/Hr 12,200 BTU/Hr 10,200 BTU/Hr Dehumidifying Capacity 65 pts/day 63 pts/day 60 pts/day Cooling 1390 W 1340 W 1180 W Power Consumption Heating... -
Page 17: Warranty
WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air KY-34 to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
