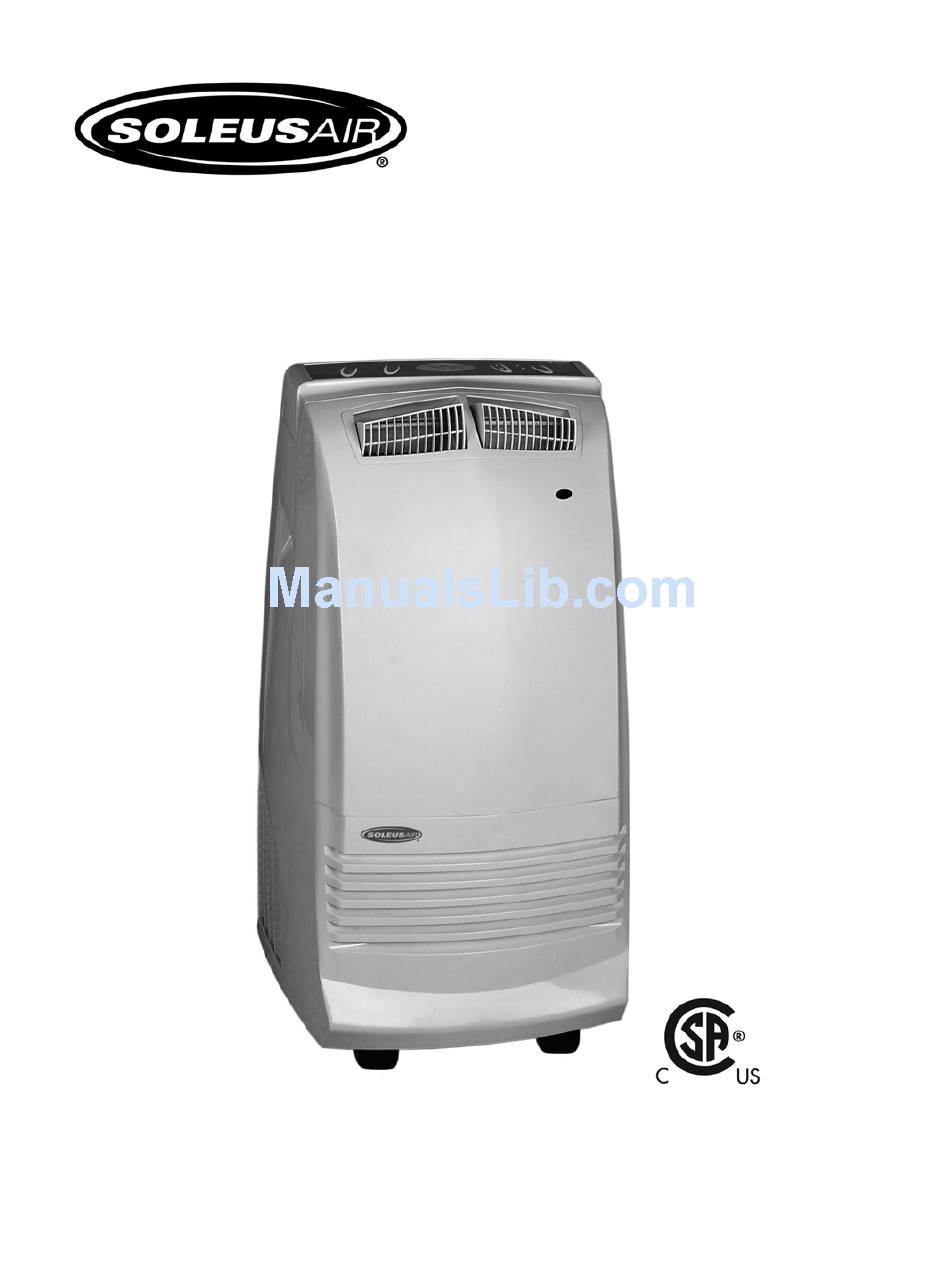

Page 1: Air Conditioner
12,000 BTU Evaporative Portable Air Conditioner Owner’s Manual Model # KY-32E Please read owner’s manual carefully before operating the unit. -
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Table of Contents …………….………………………………………………………………………2 Introduction ……………………………………….…………………………………………...3 Important Safeguards ……………………………………………………………………………….. 4 LCDI Power Cord and Plug…………………………………………………………………………. 5 Package Contents …………………………………………………………………………………….6 Parts Diagram ………………………………………………………………………………………...6 Assembly Requirements ……………………….……………………………………………………..8 Control Panel and LCD Screen……………………………………………………………………… 9 Operation Using the Control Panel………………………………………………………………...11 Operation Using the Remote Controller………………………………………………………….…...12 Optional Water Drainage ……………………………………………………………………………..14 Proper Care and Maintenance…………………………………………………………………………15... -
Page 3: Introduction
The condensate water is evaporated and removed through the exhaust duct along with warm exhaust air. At 12000 BTUs the KY-32E is one of the most powerful portable air conditioners on the market. In addition, the high speed motor allows for operation in high temperatures Soleus Air “Smart Chip”... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before installing and using the portable air conditioner, please read this Owner’s manual carefully. 1. Never use or store gasoline or other flammable vapor or liquid near this unit. 2. Maintain at least 20” (50cm) clearance space around all side of the unit. Do not obstruct air inlet or outlet grilles. -
Page 5: Lcdi Power Cord And Plug
3. Press RESET button for use If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 6: Package Contents
PACKAGE CONTENTS 1. Portable Air Conditioner 2. Air Exhaust Duct 3. Exhaust Duct Window Kit Adapter 4. Remote Control 5. AAA Batteries (2) 6. Window Kit - 3 Sliding Panels 7. Window Kit Fastener Screws (4) 8. Continuous Drainage Tube 9. -
Page 7: Rear View
REAR VIEW WINDOW KIT EXHAUST DUCT... -
Page 8: Assembly Requirements
ASSEMBLY REQUIREMENTS EXHAUST DUCT When you use the unit as an air conditioner, the hot exhaust air and evaporated condensate water must be vented out of the room. The exhaust duct and venting kit serves this purpose. NOTE: The exhaust duct and venting kit should not be used while the unit is operated in dehumidification, or fan mode. -
Page 9: Window Kit Installation
NOTE: In order to achieve maximum room cooling efficiency, the exhaust duct should remain as short and straight as possible. To further shorten the exhaust hose, first unthread either exhaust duct adapter clockwise to remove it. Then cut the hose to desired length. It is not recommended to increase the manufacturer’s length of the exhaust hose. -
Page 10: Control Panel Functions
CONTROL PANEL FUNCTIONS 1. Power On/Off Control Starts or stops the unit. 2. Temperature Setting Control Select the desired temperature setting by pressing either the▲▼ buttons. It is recommended to set the temperature before selecting the Mode Control. 3. Mode Control Select the functions of the unit for: Air Conditioning Mode Dehumidifying Mode... -
Page 11: Lcd Display
DEHUMIDIFIER OPERATION 1. If exhaust duct is attached, remove it from the rear of the air conditioner. 2. Plug the Power Cord to the power outlet. -
Page 12: Fan Operation
4. Press the Fan Button to select Low, Medium or, High speed. OPERATION USING REMOTE CONTROLLER The remote control provided with the unit operates this portable air conditioner. The remote control uses (2) AAA batteries (provided). Install the batteries before using the remote controller. -
Page 13: Cooling Operation
SETTING THE CLOCK 1. Press 1/0 button to turn on the remote control. 2. Press the Hr and Min buttons until the LCD displays the correct time. 3. Press the Send button to set time. COOLING OPERATION 1. Press the 1/0 button to turn on the remote control. 2. -
Page 14: Optional Water Drainage
OPTIONAL WATER DRAINAGE When operating the air conditioner in cooling or dehumidifying mode under normal conditions, the condensation water is automatically evaporated from an internal drip pan out through the exhaust duct. Under extremely high humidity conditions, the water in the drip pan may reach a level that triggers a shut-off mechanism. The compressor and fan will turn off and the water must be drained via one of the following two methods. -
Page 15: Manual Drainage
When the unit is operating in manual drainage mode, excess condensation in the drip pan will rise until it reaches a predetermined level, at which time the air conditioner will signal a warning (E4 on LCD) and shut off. To drain the excess condensation, turn off the air conditioner, remove the drain plug and allow water to drip into an external pan or drainage tubing. -
Page 16: Troubleshooting
CASE 1. Avoid direct exposure to sunlight as case color may fade. 2. Clean surface area with a damp cloth. Dry with a soft towel. 3. Vacuum grill inlets with a soft brush attachment. NOTE: Do not use abrasive cleaning products on the case. STORING THE UNIT FOR AN EXTENDED PERIOD OF TIME OR TRANSPORTING 1. -
Page 17: Technical Specifications
NET WEIGHT DIMENSIONS PACKAGE ASSEMBLED REFRIGERANT HIGH SIDE PRESSURE LOW SIDE PRESSURE CONTACT INFORMATION Contact Customer Service For: KY-32E 12,000 BTU/HR 95 PINTS/DAY 1300 W 170 CFM 115 V / 60 HZ 12 AMP COOLING <56 db(A) 61 F -95 F 99 lbs 21 x 19 x 45 ½... -
Page 18: One-Year Limited Warranty
United States or Canada. If the air conditioner exhibits a defect in normal use, Soleus Air International Inc. will, at its option, either repair or replace it, free of charge within a reasonable time after the air conditioner is returned during the warranty period.
