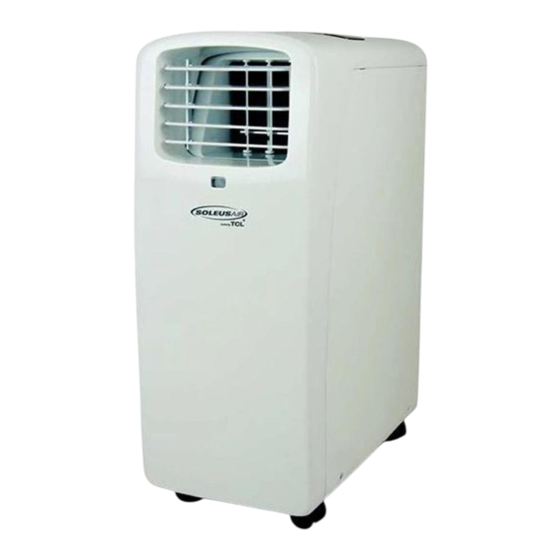

- Page 1 8,000/10,000/12,000 BTU Portable Air Conditioner Operating Instructions Model No.: Model No.: PS12-03 PS08-01 Ref: PS10-01 KY120 Ref: KY80 KY100 3119233 V160310...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Package Contents
of the unit. If the environment temperature is higher than the max operating temperature or lower than the minimum operat- ing temperature, the air conditioner may not work properly. PS08-01 PS10-01 PS12-03 MODEL NUMBER (Ref: KY80) (Ref: KY100) -
Page 4: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value. -
Page 5: Led Light
ALTERNATIVE LCDI POWER CORD AND PLUG WITH LED LIGHT This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. -
Page 6: Product Diagram
PRODUCT DIAGRAM 1. Air Outlet Grill 2. Control Panel 3. Casters 4. Air Intake Grill 5. Remote Control Sensor 6. Air Filter 7. Carry Handle 8. Air Exhaust Hose Discharge Opening 9. Condensation Drain Hole 10. Power Cord 11. Exhaust Hose 12. -
Page 7: Parts & Assembly
PARTS & ASSEMBLY PARTS ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. When the unit is operating in fan mode no outdoor air exchange takes place. -
Page 8: Window Kit Installation
Hose. DO NOT use an extension cord with your Portable Air Conditioner. Note: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for Soleus Air single hose Portable Air Conditioners. - Page 9 WINDOW KIT ASSEMBLY GUIDE SCREW PANEL SCREW 1.Parts: A) Panel B) Panel with one exhaust hose opening C) Panel without exhaust hose opening D) Pins to lock window kit in place 2. Assembly: Slide Panel B and C into Panel A and size to window width. Win- dows sizes vary.
-
Page 10: Control Panel Buttons
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL Fan Mode Sleep Mode Indicator Indicator POWER Decrease Increase Auto ON/OFF Fan Speed Temperature Temperature Mode Button Indicator Button Button Indicator Airflow Auto-Swing Button Mode Selection Button Dehumidifier Air Conditioner Timer Mode Mode Indicator Fan Mode... -
Page 11: Remote Control
OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL LCD DISPLAY POWER BUTTON MODE BUTTON TIMER/TEMP INCREASE TIMER BUTTON TIMER/TEMP DECREASE SLEEP BUTTON FAN SPEED °C /°F BUTTON SWING BUTTON THIS BUTTON DOES NOT HAVE A FUNCTION * Remote Colors may differ from the image above. - Page 12 REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - If the unit is already on, press the POWER button on the remote while pointing the remote away from the unit. This will turn the remote on. If the unit is off, now press the POWER button once to manually turn the unit on.
-
Page 13: Operating The Unit
7) SWING - To turn on oscillation, press the SWING button on the remote control when the unit is in air conditioner mode, fan mode, and dehumidifier mode. The remote control will show an arrow ► by to the “SWING” icon on the remote control LCD display. Once you press SWING, the louvers on the unit will oscillate left and right. -
Page 14: Condensate Evaporation
Auto Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8 ). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button. 4) Press the MODE button until the Auto mode indicator appears on the control panel display. NOTE: During Auto mode, the unit operates in Fan mode when the room temperature is below 73˚F, and Air Conditioner mode when the room temperature is above 73˚F. -
Page 15: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION • Plug unit in. • Unit is not plugged in. • Check electric breaker box for a Air conditioner does not • No electric current to outlet. trip. power on • Internal safety device has tripped. •... -
Page 17: Self-Diagnosis
SELF-DIAGNOSIS SYSTEM MALFUNCTION CODES SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display. -
Page 18: This Warranty Does Not Cover
One Year Limited Warranty Soleus Home Comfort warrants the accompanying Soleus Air Portable Air Conditioner to be free of defects in ma- terial and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
