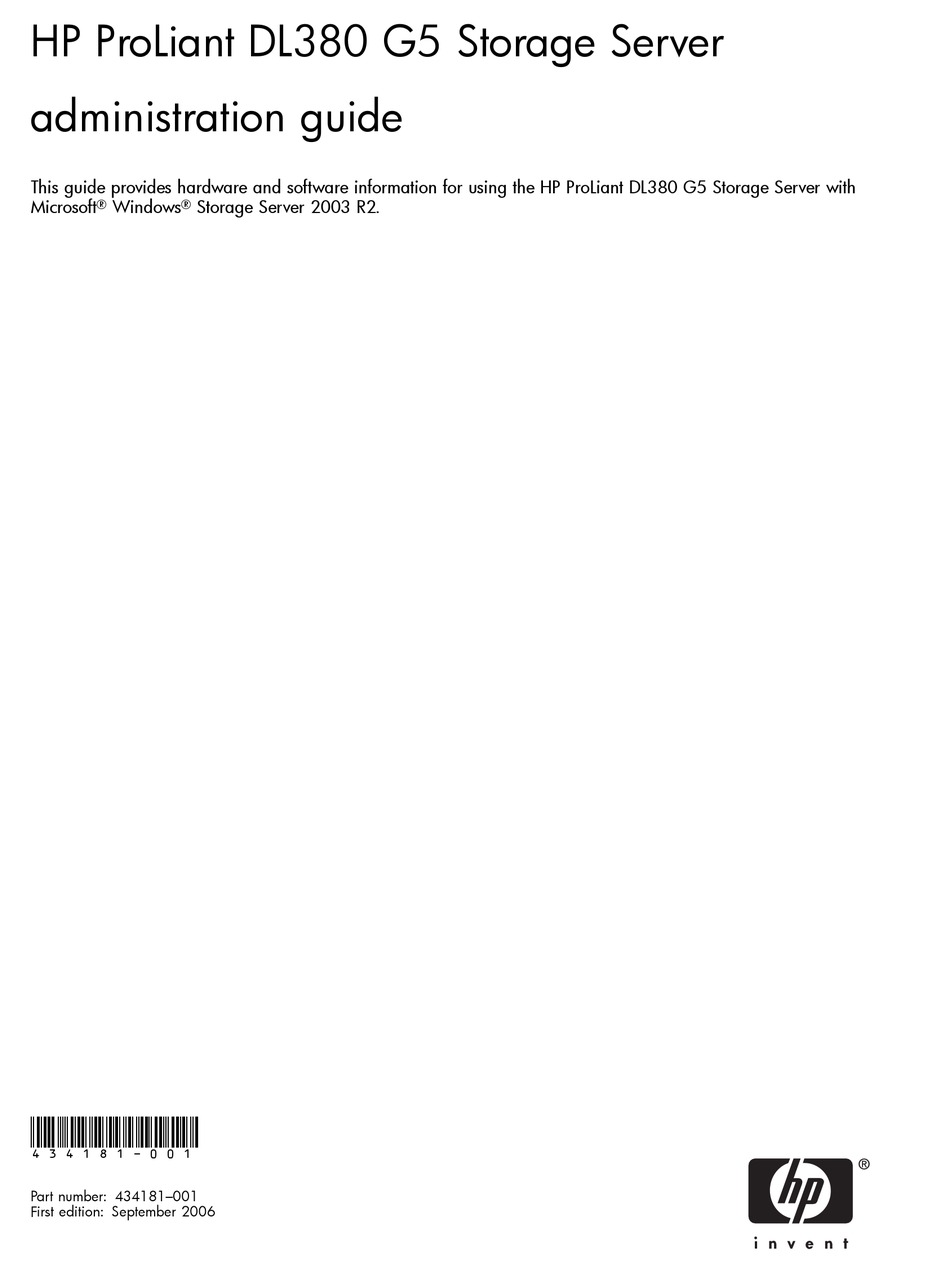

Page 1 HP ProLiant DL380 G5 Storage Server administration guide This guide provides hardware and software information for using the HP ProLiant DL380 G5 Storage Server with Microsoft Windows Storage Server 2003 R2. ® ® 434181-001 Part number: 434181–001 First edition: September 2006...
Page 2 Hewlett-Packard. The information contained in this document is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting as additional warranty.
Page 3: Table Of Contents
........HP technical support ........
Page 4 Windows SharePoint Services ......HP Storage Server Management Console ......
Page 5 New or improved HP print server features ......HP Web Jetadmin ........
Page 6 HP Jetdirect ﬁrmware ....... . Printer server scalability and sizing ......
Page 7 Using Cluster Administrator remotely ......The HP Storage Server Management Console .....
Page 8 ....HP Network Conﬁguration Utility .......
Page 9 ........Index ......HP ProLiant DL380 G5 Storage Server...
Page 10 40 Microsoft Print Management Console ......41 HP Web Jetadmin ....... . .
Page 11 60 HP Network Conﬁguration Utility Properties dialog box, before teaming ..61 HP Network Conﬁguration Utility Properties dialog box, after teaming ...
Page 12 Tables 1 Document conventions ....... . 2 Component comparison between editions .
Page 13: About This Guide
HP ProLiant DL380 G5 2 TB SATA Storage Server • HP ProLiant DL380 G5 SAN Attach Storage Server This guide is available on the HP web site and is also provided as a PDF printable document on the HP ProLiant Storage Server documentation CD. Intended audience This book is intended for use by technical professionals who are experienced with the following: •...
Page 14: Document Conventions
Provides clarifying information or speciﬁc instructions. NOTE: Provides additional information. TIP: Provides helpful hints and shortcuts. Getting help If you still have a question after reading this guide, contact an HP authorized service provider or access our web site: http://www.hp.com. About this guide...
Page 15: Hp Technical Support
Detailed, speciﬁc questions For continuous quality improvement, calls may be recorded or monitored. HP Subscriber’s Choice HP strongly recommends that customers sign up online using the Subscriber’s choice web site at http://www.hp.com/go/e-updates. • Subscribing to this service provides you with e-mail updates on the latest product enhancements, newest versions of drivers, and ﬁrmware documentation updates, as well as instant access to...
Page 16 To make comments and suggestions about product documentation, please send a message to storagedocs.feedback@hp.com. All submissions become the property of HP. About this guide...
Page 17: The Hp Storage Server Solution
, Linux, Novell, or Macintosh variant. ® The HP ProLiant Storage Server family of products includes enterprise class, as well as remote ofﬁce or small to medium business class solutions that provide reliable performance, manageability, and fault tolerance. Each HP ProLiant Storage Server has been speciﬁcally designed to function as a network attached storage server.
Page 18: Fibre Channel Technology
Data with the highest requirements is stored in the ﬁrst tier, on the SCSI or Fibre Channel disks. • The second tier stores near-online or infrequently accessed data (such as disk-to-disk backup copies) on Serial ATA disks. • The third tier comprises tape-based backup copies or data archived on optical media. The HP storage server solution...
Page 19: Iscsi Technology
Server 2003 R2 solutions are preconﬁgured, they can be deployed out of the box in a short time, and the HP Storage Server Management Console makes management easy. Windows Storage Server 2003 R2 integrates with existing infrastructures, so enterprises can make full use of commonly-used network...
Page 20: Comparison Between Editions Of Windows Storage Server 2003 R2
Windows Storage Server 2003 R2. An entry marked with an X designates a feature that is either pre-installed or available. An entry with a U designates a feature that is unavailable in that edition. The HP storage server solution...
Page 21: Component Comparison Between Editions
Yes (with license) Transportable snapshots Printers Up to 5 Unlimited Unlimited Component is not preinstalled, but is available. Connection to SCSI tape backup permitted iSCSI initiator Workgroup Edition to Standard Edition upgrade is available HP ProLiant DL380 G5 Storage Server...
Page 22: Storage Server Roles
• Quick and easy way to add print capacity without affecting the general purpose server. • With a host network printer management application (for example, Microsoft PMC or HP Web JetAdmin) • Network printing services for a variety of client operating systems: •...
Page 23: Environment Scenarios
The storage server obtains user account information from the domain controller when deployed in a domain environment. The storage server itself cannot act as a domain controller, backup domain controller, or the root of an Active Directory tree as these functions are disabled in the operating system. HP ProLiant DL380 G5 Storage Server...
Page 24 The HP storage server solution...
Page 25: Storage Server Speciﬁcations And Image Conﬁgurations
DL380 G5. gl0069 Systems Insight Display DVD+R/RW drive Video connector Hard drive bays USB connectors (2) Quick release levers (2) Figure 2 Front panel components HP ProLiant DL380 G5 Storage Server...
Page 26: Front Panel Controls And Indicators
gl0070 Figure 3 Front panel controls and indicators Table 3 Front panel controls and indicators Item Description Status UID LED button Blue = Activated Flashing = System being remotely managed Off = Deactivated Internal health LED Green = Normal Amber = System degraded. To identify components in degraded state, see "System Insight Display LEDs"...
Page 27: Systems Insight Display Leds
Green = Protection enabled Amber = Memory failure occurred Flashing amber= Memory conﬁguration error All other LEDs Off = Normal Amber = Failure NOTE: The HP Systems Insight Display LEDs represent the system board layout. HP ProLiant DL380 G5 Storage Server...
Page 28: Rear Panel
Rear panel Figure 5 Figure 6 show components, controls, and indicators, located at the rear of the DL380 G5. gl0072 Item Description Color — Expansion slot 1, populated with Smart Array P400 RAID controller — Expansion slot 2 — Expansion slot 3 —...
Page 29: Rear Panel Controls And Indicators
Table 5 PCI expansion slot deﬁnitions Item Mixed PCIe/PCI-X x4, slot 1, bus A (populated with HP Smart Array P400 RAID controller) x4, slot 2, bus B x8, slot 3, bus C 64-bit/133-MHz, slot 4, bus D 64-bit/133-MHz, slot 5, bus D...
Page 30: System Board Components
System board components Figure 5 shows components located on the DL380 G5 system board. gl0074 Fan board connector System battery PCI riser cage connector Processor power module 1 Fan 4 connector Processor power module 2 Fan 2 connector Power supply backplane connector Fan 3 connector PCIe slot 1 Fan 1 connector...
Page 31: Modular Smart Array 20
MSA20 enclosure. gl0060 Mounting bracket covers (bezel ears) Drive bay Figure 8 MSA20 front view MSA20 rear view Figure 9 shows components, controls, and indicators located at the rear of the DL100 G2. HP ProLiant DL380 G5 Storage Server...
Page 32: Msa20 Drive
kc_002b Arrow buttons (future use) Enclosure ID display—Indicates the box ID number assigned to the enclosure during drive conﬁguration. Unit identiﬁcation button—Causes the blue LED on all drives in the enclosure to illuminate. Enclosure Monitor Status LED—Glows green to indicate that the enclosure monitor (Global Service Indicator, or GSI) is functional.
Page 33: Msa20 Drive (In Carrier)
This LED also illuminates when the drive, or an array containing the drive, is selected in a management application such as the HP Array Conﬁguration Utility (ACU). The amber LED on a drive illuminates when the drive has failed, or is predicted to fail in the near future.
Page 34: Modular Smart Array 30 Front View
Table 8 Interpreting the drive status LEDs Meaning Online LED Fault/ID LED (green) (amber/blue) On, off, or ﬂashing Alternating between The drive has failed, or a predictive failure alert* has amber and blue been received for this drive. It has also been selected by a management application.
Page 35: Msa30 Rear View
MSA30 rear view Figure 12 shows the components located at the rear of the MSA30. gl0076 Environmental Monitoring Unit (EMU) Power supply units I/O module (single-port or dual-port) Blowers Figure 12 MSA30 rear view HP ProLiant DL380 G5 Storage Server...
Page 36: Msa30 Ultra320 I/O Module
MSA30 Ultra320 I/O module Figure 13 shows the components located on the MSA30 Ultra320 I/O modules. U320 gl0077 Release latch Status LEDs, with Ultra320 designator SCSI bus A connector, single-port module Figure 13 MSA30 Ultra320 I/O module MSA30 Environmental Monitoring Unit Figure 14 shows the indicator located on the MSA30 Environmental Monitoring Unit (EMU).
Page 37: Storage Server Conﬁgurations
2 GB (2 x 1 GB) PC2–5300 Fully Buffered DIMMs Operating system Windows Storage Server 2003 R2 Enterprise Edition None External storage 2U rack Form factor Table 10 shows hardware commonality between DL380 G5 models. HP ProLiant DL380 G5 Storage Server...
Page 38: Factory Image
One iLO 2 with dedicated network port Factory image The ProLiant DL380 G5 Storage Servers are preconﬁgured at the factory for the operating system only. Additional conﬁguration is needed for the creation of data drives. Depending on the type of storage server, storage conﬁguration can involve local storage conﬁguration using the HP Array Conﬁguration...
Page 39: Dl380 G5 Hardware Raid
5 GB across physical drive 0, ERASE NOTE: In the HP Array Conﬁguration Utility (ACU), logical disks are labeled 1 and 2. In Disk Manager, logical disks are displayed as 0 and 1. The ACU user guide is available for download at http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00294139/c00294139.pdf. For HP Smart Array conﬁguration information, the P400 controller user guide can be obtained from...
Page 40: Default Boot Sequence
The MSA30 storage enclosure for the DL380 G5 1.2 TB Storage Server is conﬁgured for hardware RAID fault tolerance using the HP Smart Array 6402 RAID Controller. The SCSI HDDs are hot-pluggable and hot-swappable. Default boot sequence The BIOS supports the following default boot sequence:...
Page 41: Remote Access, Monitoring, And Set Up Completion
Knowing the serial number of the storage server or its IP address, you can log in to a network port. Instructions for setting up Remote Browser are explained in the HP ProLiant Storage Server installation guide that is provided with the server.
Page 42: Logging Off And Disconnecting
(-). For example: 192.100.0.1 Log in to the storage server with a valid user name and password. The default user name is administrator and the default password is hpinvent. The HP ProLiant Storage Server Management console is displayed automatically.
Page 43: Sessions Information
Administrators may want to add users, change SNMP trap destinations, or change networking settings. Refer to the HP Integrated Lights-Out 2 User Guide for information about changing these settings. To obtain this guide, go to http://www.hp.com/support/manuals, navigate to the servers section, and select Server management.
Page 44 • Activating iLO 2 Advanced features using a license key— The Remote Console feature of iLO 2 requires a license key. The key is included with the storage server inside the Country Kit. Refer to the iLO 2 Advanced License Pack for activation instructions. •...
Page 45: Storage Management Overview
Each of these elements is composed of the previous level’s elements. Storage management example Figure 17 depicts many of the storage elements that one would ﬁnd on a storage device. The following sections provide an overview of the storage elements. HP ProLiant DL380 G5 Storage Server...
Page 46: Physical Storage Elements
Physical Disks Single Server Cluster Implementation RAID Arrays Storage Elements Logical Drives Selective Storage Presentaion Visible Disks Logical Partitioning Storage Elements NTFS Volumes File \Engineering \Users \Sales \Engineering \Users \Sales \Customers File Folders System \Marketing \Marketing Elements from 02/10/03 09:30 \snapshot.0 from 02/10/03 09:30 \snapshot.0 Shadow Copy Shadow Copies...
Page 47: Arrays
19, failure of any hard drive leads to failure of all logical drives in the same array, and hence to data loss. To protect against data loss from hard drive failure, storage servers should be conﬁgured with fault tolerance. HP recommends adhering to RAID 5 conﬁgurations. HP ProLiant DL380 G5 Storage Server...
Page 48: Online Spares
The table below summarizes the important features of the different kinds of RAID supported by the Smart Array controllers. The decision chart in the following table can help determine which option is best for different situations. Table 12 Summary of RAID methods RAID 0 RAID 1+0 RAID 5...
Page 49: Partitions
File system elements are composed of the folders and subfolders that are created under each logical storage element (partitions, logical disks, and volumes). Folders are used to further subdivide the available ﬁle system, providing another level of granularity for management of the information space. HP ProLiant DL380 G5 Storage Server...
Page 50: File Sharing Elements
VSS can only use volumes that are NTFS formatted. Also, quota management is possible only on NTFS. Clustered server elements Select storage servers support clustering. The HP ProLiant storage server supports several ﬁle sharing protocols, including DFS, NFS, FTP, HTTP, and Microsoft SMB. Only NFS, FTP, and Microsoft SMB are cluster-aware protocols.
Page 51: File Server Management
RDC detects insertions, removals, and rearrangements of data in ﬁles, enabling DFS Replication to replicate only the deltas (changes) when ﬁles are updated. The HP Storage Server Management Console provides access to DFS management tasks. HP ProLiant DL380 G5 Storage Server...
Page 52: Storage Manager For Sans
Figure 21 HP Storage Server Management Console, DFS Management For more information on DFS, refer to the online help. A Microsoft document titled Overview of the Distributed File System Solution in Microsoft Windows Server 2003 R2 is available for download http://www.microsoft.com/downloads/details.aspx?familyid=5E547C69-D224-4423-8EAC-...
Page 53: File Server Resource Manager
Open Files File services management Information about the storage server in a SAN environment is provided in the HP ProLiant Storage Server SAN Connection and Management document located on the storage server documentation CD, or the latest update is available from the HP web site at http://www.hp.com/support/manuals. Under the storage section, click NAS and then select your product.
Page 54: Storage Management Utilities
Conﬁguring additional storage involves creating arrays, logical disks, and volumes. Table 13 shows the general task areas to be performed as well as the utilities needed to conﬁgure storage for an HP Smart Array-based storage server. Table 13 Tasks and utilities needed for storage server conﬁguration...
Page 55: Array Conﬁguration Utility
Select Start > Programs > HP Management Tools > Array Conﬁguration Utility. If the Execution Mode for ACU is set to Remote Mode, log in to the HP System Management Homepage. The default user name is administrator and the default password is hpinvent.
Page 56: Disk Management Utility
Log in to the HP System Management Homepage. The default user name is administrator and the default password is hpinvent. Click Array Conﬁguration Utility on the left side of the window. The ACU opens and identiﬁes the controllers that are connected to the system.
Page 57: Guidelines For Managing Disks And Volumes
The largest disk that Windows Storage Server 2003 can accommodate from a storage system is 2 TB. • HP does not recommend spanning array controllers with dynamic volumes. • Use meaningful volume labels with the intended drive letter embedded in the volume label, if possible.
Page 58: Scheduling Defragmentation
Only basic disks can be formatted as FAT or FAT32. Scheduling defragmentation The following information applies to all models of the HP ProLiant storage server. Defragmentation is the process of analyzing local volumes and consolidating fragmented ﬁles and folders so that each occupies a single, contiguous space on the volume. This improves ﬁle system performance.
Page 59: Adding Storage
If you choose host presentation during virtual disk creation, the management agent cannot complete any other task until that virtual disk is created and presented. Therefore, HP recommends that you wait until a virtual disk is created before presenting it to a host.
Page 60: Expanding Storage Using The Array Conﬁguration Utility
On the storage server, open Device Manager, right-click on the EVA LUN and select Scan for hardware changes. Open a command prompt and run DiskPart.exe. List the current volumes of the system (List Volumes). Select the volume to be extended (select volume X). Extend the volume (extend [size=n]).
Page 61: Extending Storage Using Windows Storage Utilities
The DiskPart utility allows the administrator to manage disks at the command line level. Use the utility to perform disk-related tasks at the command line as an alternative to using Disk Management. Guidelines for extending a basic volume: HP ProLiant DL380 G5 Storage Server...
Page 62: Volume Shadow Copies
• Use the DiskPart utility. • To extend a basic volume, it must be formatted NTFS. • You can only extend a basic volume onto the same disk. • You can only extend a basic volume if it is followed by contiguous unallocated space. Complete help is available from the Windows Storage Server 2003 desktop by selecting Start >...
Page 63: Shadow Copy Planning
ﬁles that are being copied, as well as the frequency of changes between copies. For example, 100 ﬁles that only change monthly require less storage space than 10 ﬁles that change daily. If HP ProLiant DL380 G5 Storage Server...
Page 64: Identifying The Storage Area
the frequency of changes to each ﬁle is greater than the amount of space allocated to storing shadow copies, no shadow copy is created. Administrators should also consider user expectations of how many versions they will want to have available. End users might expect only a single shadow copy to be available, or they might expect three days or three weeks worth of shadow copies.
Page 65: Determining Creation Frequency
G:\data\users is shared as \\server1\users. In this example, users can access previous versions of \\server1\data and \\server1\users but not \\server1\data\users. Managing shadow copies The vssadmin tool provides a command line capability to create, list, resize, and delete volume shadow copies. HP ProLiant DL380 G5 Storage Server...
Page 66: The Shadow Copy Cache File
The system administrator can make shadow copies available to end users through a feature called “Shadow Copies for Shared Folders.” The administrator uses the Properties menu (see Figure 24) to turn on the Shadow Copies feature, select the volumes to be copied, and determine the frequency with which shadow copies are made.
Page 67: Enabling And Creating Shadow Copies
After the ﬁrst shadow copy is created, it cannot be relocated. Relocate the cache ﬁle by altering the cache ﬁle location under Properties prior to enabling shadow copy. See "Viewing shadow copy properties" on page 68. HP ProLiant DL380 G5 Storage Server...
Page 68: Viewing A List Of Shadow Copies
Viewing a list of shadow copies To view a list of shadow copies on a volume: Access Disk Management. Select the volume or logical drive, then right-click on it. Select Properties. Select Shadow Copies tab. All shadow copies are listed, sorted by the date and time they were created. NOTE: It is also possible to create new shadow copies or delete shadow copies from this page.
Page 69: Managing Shadow Copies From The Storage Server Desktop
No additional software is required to enable UNIX users to independently retrieve previous versions of ﬁles stored on NFS shares. NOTE: Shadow Copies for Shared Folders supports retrieval only of shadow copies of network shares. It does not support retrieval of shadow copies of local folders. HP ProLiant DL380 G5 Storage Server...
Page 70: Smb Shadow Copies
NOTE: Shadow Copies for Shared Folders clients are not available for HTTP, FTP, AppleTalk, or NetWare shares. Consequently, users of these protocols cannot use Shadow Copies for Shared Folders to independently retrieve previous versions of their ﬁles. However, administrators can take advantage of Shadow Copies for Shared Folders to restore ﬁles for these users.
Page 71: Nfs Shadow Copies
View the folder and select the ﬁle or folder to recover. The view may be navigated multiple folders deep. Click Restore to restore the ﬁle or folder to its original location. Click Copy... to allow the placement of the ﬁle or folder to a new location. HP ProLiant DL380 G5 Storage Server...
Page 72: Recovering An Overwritten Or Corrupted File
Figure 29 Recovering a deleted ﬁle or folder Recovering an overwritten or corrupted ﬁle Recovering an overwritten or corrupted ﬁle is easier than recovering a deleted ﬁle because the ﬁle itself can be right-clicked instead of the folder. To recover an overwritten or corrupted ﬁle: Right-click the overwritten or corrupted ﬁle, and then click Properties.
Page 73: Shadow Copy Transport
The data is now ready to use. Folder and share management The HP ProLiant Storage Server supports several ﬁle-sharing protocols, including DFS, NFS, FTP, HTTP, and Microsoft SMB. This section discusses overview information as well as procedures for the setup and management of the ﬁle shares for the supported protocols.
Page 74: Folder Management
Folders can be managed using the HP Storage Server Management Console. Tasks include: •...
Page 75: Properties Dialog Box, Security Tab
ﬁle-access levels. To modify ownership of ﬁles, or to modify individual ﬁle access level permissions, click Advanced. Figure 31 illustrates the properties available on the Advanced Security Settings dialog box. HP ProLiant DL380 G5 Storage Server...
Page 76: Advanced Security Settings Dialog Box, Permissions Tab
Figure 31 Advanced Security settings dialog box, Permissions tab Other functionality available in the Advanced Security Settings dialog box is illustrated in Figure and includes: • Add a new user or group—Click Add, and then follow the dialog box instructions. •...
Page 77: User Or Group Permission Entry Dialog Box
ﬁles or folders. Users or groups can be added, deleted, viewed, or modiﬁed through the Advanced Security Settings Auditing tab. Figure 33 Advanced Security Settings dialog box, Auditing tab Click Add to display the Select User or Group dialog box. HP ProLiant DL380 G5 Storage Server...
Page 78: Select User Or Group Dialog Box
Figure 34 Select User or Group dialog box NOTE: Click Advanced to search for users or groups. Select the user or group. Click OK. The Auditing Entry dialog box is displayed. Figure 35 Auditing Entry dialog box for folder name NTFS Test Select the desired Successful and Failed audits for the user or group.
Page 79: Share Management
Share management There are several ways to set up and manage shares. Methods include using Windows Explorer, a command line interface, or the HP Storage Server Management Console. NOTE: Select servers can be deployed in a clustered as well as a non-clustered conﬁguration. This chapter discusses share setup for a non-clustered deployment.
Page 80: Share Considerations
As previously mentioned, the ﬁle-sharing security model of the storage server is based on the NTFS ﬁle-level security model. Share security seamlessly integrates with ﬁle security. In addition to discussing share management, this section discusses share security. Share considerations Planning the content, size, and distribution of shares on the storage server can improve performance, manageability, and ease of use.
Page 81: File Server Resource Manager
$ character when setting up the share. Do not type a $ character at the end of the share name when creating a standard share. Managing shares Shares can be managed using the HP Storage Server Management Console. Tasks include: • Creating a new share •...
Page 82: Quota Management
Figure 37 HP Storage Server Management Console, FSRM tasks For procedures and methods beyond what are described below, refer to the online help. In addition, see a Microsoft File Server Resource Manager white paper available at http://download.microsoft.com/ download/7/4/7/7472bf9b-3023-48b7-87be-d2cedc38f15a/WS03R2_Storage_Management.doc Quota management...
Page 83: Other Windows Disk And Data Management Tools
Kit Tools, information about these tools might appear in Help and Support Center. To see the tools that are available to you, look in the Help and Support Center under Support Tasks, click Tools, and then click Tools by Category. HP ProLiant DL380 G5 Storage Server...
Page 84: Additional Information And References For File Services
Additional information and references for ﬁle services Backup HP recommends that you back up the print server conﬁguration whenever a new printer is added to the network and the print server conﬁguration is modiﬁed. For details on implementing the backup solution, refer to the Medium Business Guide for Backup and Recovery.
Page 85: Print Services
Management Console (MMC) snap-on that system administrators can use to perform common print management tasks in a large enterprise. It provides a single interface that administrators can use to perform printer and print server management tasks efﬁciently with detailed control. You can use Print HP ProLiant DL380 G5 Storage Server...
Page 86: New Or Improved Hp Print Server Features
88) HP Install Network Printer Wizard The inclusion of the HP Install Network Printer Wizard (INPW) utility on the factory image is new. INPW simpliﬁes the process of installing network printers, including conﬁguration settings on the print server.
Page 87: Microsoft Print Management Console
Figure 39 Help and Support Center page Microsoft Print Management Console The Print Management Console (PMC) can be started from the HP Storage Server Management Console, or the PMC snap-in can be added to the Microsoft Management Console. Figure 40 Microsoft Print Management Console HP recommends that you use the Microsoft Print Management Step-by-Step Guide on the Documentation CD for print concepts, use of the PMC, and management of network printers.
Page 88: Hp Web Jetadmin Installation
Select Off (not recommended) and click OK. HP Web Jetadmin installation HP Web Jetadmin is used to manage a ﬂeet of HP and non-HP network printers and other peripherals using a web browser. Although not preinstalled, the Web Jetadmin software is located in the C:\hpnas\Components\WebJetadmin folder, and can be installed by running the WJA.exe...
Page 89: Web-Based Printer Management And Internet Printing
Internet printing enabling users to connect to a printer using the printer’s URL. A Microsoft white paper discussing the uses of both components can be obtained at http://www.microsoft.com/windowsserver2003/techinfo/overview/internetprint.mspx. Managing printing from the command line You can manage your printers at the command line with these commands: HP ProLiant DL380 G5 Storage Server...
Page 90: Planning Considerations For Print Services
print Prints a text ﬁle or display the contents of a print queue. net print Displays control print jobs and printer queues. net start spooler Starts the spooler service. Prints a ﬁle to a computer running LPD server. Obtains status of a print queue on a computer running the LPD server.
Page 91: Print Queue Creation
Properties” in the Windows online help for additional information. Print queue creation In addition to Windows Printer and Faxes, Add Printer Wizard, the HP Install Network Printer Wizard (INPW) utility discovers HP Jetdirect network printers on the local network and allows print queues to be created on the print server.
Page 92: Maintenance Updates
HP ProLiant Storage Servers at http://h18006.www1.hp.com/storage/storageservers.htm. Print drivers The latest print drivers for many HP network printers are supplied on the Service Release DVD. If selected as part of the service release installation process, updated print drivers are copied to the print drivers folder C:\hpnas\PRINTERS on the storage server or File Print Appliance.
Page 93: Hp Jetdirect Firmware
The HP Download Manager (DLM) utility for Jetdirect printers provides upgrades of HP Jetdirect print server ﬁrmware on HP network printers. The utility is located on the storage server or File Print Appliance in the C:\hpnas\Components\Download Manager for Jetdirect folder. A connection to the Internet is required, or the utility can be pointed to a local location where the ﬁrmware images are stored.
Page 94: Security
Figure 44 Microsoft Printer Migrator screen For more information about the Print Migrator utility, visit http://www.microsoft.com/ WindowsServer2003/techinfo/overview/printmigrator3.1.mspx. Antivirus The server should be secured by installing an appropriate antivirus software. For details on implementing antivirus, refer to the Medium Business Guide for Antivirus. The guide can be viewed or downloaded from Microsoft at http://www.microsoft.com/technet/itsolutions/smbiz/mits/av/mit_av.mspx.
Page 95: Troubleshooting
Speciﬁc print server related problems as well as other system related known issues and workarounds are addressed in release notes. To view the latest version, visit http://www.hp.com/go/support. Select See support and troubleshooting information and enter a product name/number. Under self-help resources, select the manuals (guides, supplements, addendums, etc) link.
Page 96 Print services...
Page 97: Other Network File And Print Services
Manage user accounts and passwords on Windows and UNIX systems using Network Information Service (NIS). • Automatically synchronize passwords between Windows and UNIX operating systems. UNIX Identity Management consists of the following components: • Administration components • Password synchronization • Server for NIS HP ProLiant DL380 G5 Storage Server...
Page 98: Other Network File And Print Services
The UNIX Identity Management component is not enabled by default on the storage server. To install this component: Access Add/Remove Programs. Select Add/Remove Windows Components > Active Directory Services > Details. Install Identity Management for Windows. Other network ﬁle and print services The following network ﬁle and print services are included and supported on the storage server: •...
Page 99: Administering Msnfs
To access Microsoft Services for Network File System from the HP Storage Server Management console: Access the HP Storage Server Management console by clicking on the shortcut icon on the desktop. In the left pane of the console, select the Share Folder Management listing.
Page 100: Server For Nfs
Figure 46 Accessing MSNFS from HP Storage Server Management console Server for NFS With Server for NFS, a computer running the Microsoft Windows Server 2003 R2 operating system can act as a Network File System (NFS) server. Users can then share ﬁles in a mixed environment of computers, operating systems, and networks.
Page 101: Authentication Table
Click the plus sign (+) next to Authentication Tools. In the Components pane, click the plus sign (+) next to Authentication Tools. Click Server for NFS Authentication, click Will be installed on local hard drive, and then click Next. HP ProLiant DL380 G5 Storage Server...
Page 102 Follow the remaining instructions in the Wizard. NOTE: NFS users can be authenticated using either Windows domain accounts or local accounts on the Windows server. Server for NFS Authentication must be installed on all domain controllers in the domain if NFS users will be authenticated using domain accounts. Server for NFS Authentication is always installed on the computer running Server for NFS.
Page 103 Everyone group. Click Remote Desktop. Log on to the storage server. Click Start >Control Panel > Administrative Tools, and then click Local Security Policy. In Security Settings, double-click Local Policies, and then click Security Options. HP ProLiant DL380 G5 Storage Server...
Page 104: User Name Mapping
Right-click Network access: Let Everyone permissions apply to anonymous users, and then click Properties. To allow permissions applied to the Everyone group to apply to anonymous users, click Enabled. The default is Disabled. Restart the NFS server service. From a command prompt, enter net stop nfssvc. Then enter net start nfssvc.
Page 105: Test An Nfs File Share Conﬁguration
The following steps provide the tasks necessary verify the set up of NFS shares, user mappings, and permissions granting the desired access to an NFS share on the storage server. Create an NFS share. Create NFS client groups (if desired). Verify the NFS share exists. HP ProLiant DL380 G5 Storage Server...
Page 106: Microsoft Services For Nfs Troubleshooting
Map a user. Verify NTFS permissions are correct on the NFS share. Verify the mappings exist. From a Linux/UNIX client, mount the NFS share and create a ﬁle or directory. Verify the same permissions are set up for the user on both the UNIX and Windows sides. Microsoft Services for NFS troubleshooting The following information on how to troubleshoot issues with Microsoft Services for NFS is available using the online help:...
Page 107 Novell Login scripts are supported on the storage server or through an existing NDS (Novell Directory Services) account. This requires no changes or additions to the software on the NetWare client computers. HP ProLiant DL380 G5 Storage Server...
Page 108: Installing Services For Netware
NOTE: FPNW is not a clusterable protocol. With FPNW on both nodes of a cluster, the shares do not fail over because the protocol is not cluster-aware. NOTE: IPX/SPX protocol is required on the Novell servers. Installing Services for NetWare The installation of FPNW on the storage server allows for a smooth integration with existing Novell servers.
Page 109: Managing File And Print Services For Netware
To access File and Print Services: To access FPNW: From the desktop of the storage server, select Start > Settings > Control Panel > Administrative Tools > Server Manager. Select FPNW, and then click Properties. HP ProLiant DL380 G5 Storage Server...
Page 110: Creating And Managing Netware Users
Figure 49 File and Print Services for NetWare dialog box Enter an FPNW Server Name and Description. This server name must be different from the server name used by Windows or LAN Manager-based clients. If changing an existing name, the new name is not effective until stopping and restarting FPNW.
Page 111: New User Dialog Box
Enabling local NetWare user accounts In the Users folder (MC, Core Operating System, Local Users and Groups), right-click an NCP client listed in the right pane of the screen, and then click Properties. Click the NetWare Services tab. HP ProLiant DL380 G5 Storage Server...
Page 112: Managing Ncp Volumes (Shares)
Figure 51 NetWare Services tab Select Maintain NetWare compatible login. Set other NetWare options for the user, and then click OK. NOTE: The installation of File and Print Services for NetWare also creates a supervisor account, which is used to manage FPNW. The supervisor account is required if the storage server was added as a bindery object into NDS.
Page 113: Create Volume Dialog Box
Figure 52 Create Volume dialog box Specify the volume name and path. Click Permissions to set permissions. Figure 53 Access Through Share Permissions dialog box Click Add to add additional users and groups, and to set their permissions. HP ProLiant DL380 G5 Storage Server...
Page 114: Print Services For Netware
Figure 54 Add Users and Groups dialog box Highlight the desired user or group, and then click Add. Select the Type of Access in the drop down list. Type of Access can also be set from the Access Through Share Permissions dialog box. Click OK when all users and groups have been added.
Page 115: Appletalk And File Services For Macintosh
Click Install. Figure 55 is an example of the Select Network component. Figure 55 Local Area Connection Properties page, Install option Select Protocol, and then click Add. Select AppleTalk Protocol, and then click OK. HP ProLiant DL380 G5 Storage Server...
Page 116: Installing File Services For Macintosh
Installing File Services for Macintosh To install File Services for Macintosh, perform the following steps: Access the desktop on the storage server. Open Add or Remove Programs from the Control Panel. Click Add or Remove Windows Components. Double-click Other Network File and Print Services. Select File Services for Macintosh, and then click OK.
Page 117: Cluster Administration
One important feature of the HP ProLiant Storage Server clusterable models is that they can operate as a single node or as a cluster. This chapter discusses cluster installation and cluster management issues.
Page 118: Cluster Terms And Components
Cluster Node A Cluster Node B Private Network Node A HBA 2 Node A Node B HBA 1 HBA 1 +++++++++++++++++++++++++++++++++++++++++++++++++++ Node B HBA 2 SAN Switch SAN Switch Storage Area Network Cluster Quorum Mirrorset LUN 1 Data RAID set Node B Data RAID set LUN 3...
Page 119: Failover
ﬁle shares, showing the relationship between both the cluster elements and the physical devices underlying them. While the diagram only illustrates two nodes, the same concepts apply for multi-node deployments. HP ProLiant DL380 G5 Storage Server...
Page 120: Sequence Of Events For Cluster Resources
Node 1 Node 2 Cluster Group Cluster Group FS1Eng FS1Market Cluster Cluster Cluster Cluster Resource: Resource: Resource: Resource: IP Address IP Address Disk E Disk F 172.18.1.98 172.18.1.99 Cluster Resource: Disk G Cluster Cluster Resource: Cluster Cluster Resource: Network File Share Resource: Resource: Name...
Page 121: Cluster Planning
Clients see only a brief interruption of service as the ﬁle share resource transitions from one server node to the other. Requirements for taking advantage of clustering include: • Storage planning • Network planning • Protocol planning HP ProLiant DL380 G5 Storage Server...
Page 122: Storage Planning
In preparing for the cluster installation: • All software components listed in the HP ProLiant Storage Server SAN Connection and Management white paper (located on your server documentation CD) must be installed and the ﬁber cables attached to the HBAs before the cluster installation is started.
Page 123: Preparing For Cluster Installation
If a protocol does not support clustering, the share is not available to the clients until the owner cluster node is brought back online. HP recommends placing cluster aware and non cluster aware protocols on different ﬁle shares. Use the information in Table 16 to determine whether it is advantageous to use clustering.
Page 124: Before Beginning Installation
For clustered products, HP recommends maintaining two paths to the data as pathing software allows for datapath failure to occur without forcing a node failover. Refer to the HP ProLiant Storage Server SAN Connection and Management white paper (located on your server documentation CD) for additional information on multipath software.
Page 125 Click OK, then Next, followed by Finish. NOTE: Uninstalling Microsoft Services for NFS removes two primary services: • Server for NFS • User Name Mapping After setting up clustering, should you choose to reinstall Microsoft NFS, follow these steps: HP ProLiant DL380 G5 Storage Server...
Page 126: Checklists For Cluster Server Installation
Select Start > Settings > Control Panel > Add or Remove Programs. The Add or Remove Programs window is displayed. On the left side of the window, select Add/Remove Windows Components. The Windows Components Wizard appears. Select Other Network File and Print Services and click the Details button. The Other Network File and Print Services window is displayed.
Page 127: Shared Disk Requirements
SAN switch zoning, or having only one node online at all times. • All software components listed in the HP ProLiant Storage Server SAN Connection and Management white paper (located on the server documentation CD) must be installed and the ﬁber cables attached to the HBAs before the cluster installation is started.
Page 128: Conﬁguring The Private Network Adapter
The Quorum disk is used to store cluster conﬁguration database checkpoints and log ﬁles that help manage the cluster. The Quorum disk must be a shared disk resource. HP makes the following Quorum disk recommendations:...
Page 129: Conﬁguring Shared Disks
1 conﬁguration. • Create a small partition [A minimum of 50 megabytes (MB) to be used as a quorum disk. HP recommends a Quorum disk be 500 MB.] During the Cluster service installation, a drive letter must be provided for the Quorum disk. HP recommends the drive letter Q for the Quorum disk.
Page 130: Using Cluster Administrator Remotely
The remote and local copies of Cluster Administrator will be identical. It is also possible to administer an HP ProLiant Storage Server cluster remotely from a computer running Windows NT 4.0 Service Pack 3 or later, Windows 2000 or Windows 2003 using the Cluster Administrator tool.
Page 131: Creating A Cluster
Quorum disk. Select the appropriate disk, and then click OK to continue. Adding nodes to a cluster After the node has successfully joined the cluster, present all additional storage LUNS to the node. HP ProLiant DL380 G5 Storage Server...
Page 132: Geographically Dispersed Clusters
NOTE: Only the Quorum disk should be accessible by the new node. The new node should not have access to the other LUNs in the cluster until after it has joined the cluster. After the node has joined the cluster, the LUNs may be presented to the new node.
Page 133: Node-Based Cluster Groups
At that time, ownership of the group and its resources can be brought back to the original owner node. Resource planning Create at least one virtual server for each node in the cluster. HP ProLiant DL380 G5 Storage Server...
Page 134: Permissions And Access Rights On Share Resources
A virtual server is a resource group consisting of an IP Address resource and a Network Name resource. Ownership of these virtual servers should be assigned to the different server nodes. In addition to providing load balancing capabilities, the virtual server allows for the transition of group resources in failover situations.
Page 135: Non Cluster Aware File Sharing Protocols
Creating ﬁle share resources To create a ﬁle share resource, refer to two clustering online help topics: • Create a cluster-managed ﬁle share • Using a server cluster with large numbers of ﬁle shares HP ProLiant DL380 G5 Storage Server...
Page 136: Creating Nfs Share Resources
NOTE: • A ﬁle share resource must reside in the same cluster group as the physical disk resource it will reside on. • The physical disk resource speciﬁed in this step must reside in the same cluster group as speciﬁed in the beginning of this wizard.
Page 137: Best Practices For Running Server For Nfs In A Server Cluster
Create a Print Spool resource. To connect to the Virtual Server Name or IP address created in the steps above: Select Start > Run, and then type: \\"virtual_server_name or ip address" from the local menu HP ProLiant DL380 G5 Storage Server...
Page 138: Advanced Cluster Administration Procedures
A session opens to the virtual server. To add a printer to the virtual server: Double-click the printers and faxes icon. Right-click the new screen, and then click add printer. A wizard starts. Click create a new port, and then click Next. Enter the IP address of the network printer.
Page 139: Shutting Down One Cluster Node
Do not power up the cluster nodes without ﬁrst powering up the storage subsystem, and verifying it is operating normally. Nodes should be powered up separately allowing one node to form the cluster prior to powering up the additional node(s). To power up the cluster nodes: HP ProLiant DL380 G5 Storage Server...
Page 140: Additional Information And References For Cluster Services
After the storage subsystem is conﬁrmed to be operating normally, power up a single node. Wait for the node to come completely up before powering up the subsequent node. If more than one node is powered up at the same time, the ﬁrst node that completes the sequence gains ownership of the cluster quorum and controls the cluster database.
Page 141: Troubleshooting, Servicing, And Maintenance
For example, instead of using “DL380 storage server”, enter DL380 server” for the product to search, then select the “HP ProLiant DL380 Server series” link, then the Manuals (guides, supplements, addendums, etc.) link to locate the guide.
Page 142: Maintenance And Service Documentation
HP’s customer self-repair program offers you the fastest service under either warranty or contract. It enables HP to ship replacement parts directly to you so that you can replace them. Using this program, you can replace parts at your own convenience.
Page 143: 10 System Installation And Recovery
The Installation and Recovery DVD The HP ProLiant Storage Server System Installation and Recovery DVD that is provided with your storage server allows you to install an image or recover from a catastrophic failure. The DVD is used initially to install and conﬁgure the operating system and applications provided with your storage server.
Page 144: Systems With A Don't Erase Partition
CAUTION: In order for user data to be retained on two-drive systems, the data volume must be a single, mirrored volume as initially conﬁgured by the factory. If you choose to restore only the operating system on two-drive systems, you need to manually recreate mirrors of your operating system and data volumes after the system is recovered and Windows boots.
Page 145: A Network Adapter Teaming
Load Balancing provides the ability to balance transmissions across NICs. Opening the HP Network Conﬁguration Utility The HP Network Conﬁguration Utility is now accessible from the Windows system tray at the bottom of the storage server desktop. To open the utility, click the HP Network Conﬁguration Utility icon Adding and conﬁguring NICs in a team...
Page 146: Hp Network Conﬁguration Utility Properties Dialog Box, Before Teaming
Figure 60 HP Network Conﬁguration Utility Properties dialog box, before teaming Highlight the NICs to team. Click Team. Figure 61 HP Network Conﬁguration Utility Properties dialog box, after teaming Conﬁgure the team by clicking the Properties tab. The teaming options are discussed in the following sections.
Page 147: Team Properties Page
Click OK to accept the team properties. Click OK in the HP Network Conﬁguration Utility Properties dialog box to apply the changes. Team Properties page The Team Properties page is displayed (see Figure 62) when the Properties tab is selected on the HP Network Conﬁguration Utility Properties dialog box.
Page 148: Team Type Selection
LACP or if any ports in the team do not have successful LACP negotiation with the switch, the team will choose to operate as a TLB team. As network and server conﬁgurations change, the Automatic team type ensures that HP ProLiant servers intelligently choose between TLB and 802.3ad Dynamic to minimize server reconﬁguration.
Page 149: Switch-Assisted Load Balancing With Fault Tolerance (Slb)
Primary port to be located on a speciﬁc switch. Network Fault Tolerance Only (NFT) Network Fault Tolerance (NFT) is the foundation of HP ProLiant Network Adapter Teaming. In NFT mode, from two to eight teamed ports are teamed together to operate as a single virtual network adapter.
Page 150: Automatic (Recommended)
It is very important to understand the differences between the load-balancing methods when deploying HP ProLiant Network Adapter Teaming in an environment that requires load balancing of routed Layer 3 trafﬁc. Because the methods use conversations to load balance, the resulting trafﬁc may not be distributed equally across all ports in the team.
Page 151: Tcp Connection
It load balances every outbound frame of every operational teamed port on a frame–by-frame basis. Absolutely no frame ordering is maintained. All teamed ports are equally used. HP recommends that the implications of this method of load balancing be carefully considered before deployment.
Page 152 Network adapter teaming...
Page 153: B Regulatory Compliance And Safety
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. HP ProLiant DL380 G5 Storage Server...
Page 154: Modiﬁcations
• Allow only HP authorized service technicians to repair the unit. The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976.
Page 155: International Notices And Statements
EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic Immunity • EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics • EN61000-3-3 (IEC61000-3-3) - Power Line Flicker • EN 60950 (IEC 60950) - Product Safety BSMI notice HP ProLiant DL380 G5 Storage Server...
Page 156: Japanese Notice
Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, please use the public collection system or return them to HP, an authorized HP Partner, or their agents. Regulatory compliance and safety...
Page 157: Taiwan Battery Recycling Notice
18 AWG, and the length of the cord must be between 1.8 m (6 ft) and 3.6 m (12 ft). If you have questions about the type of power cord to use, contact an HP authorized service provider. NOTE: Route power cords so that they will not be walked on and cannot be pinched by items placed upon or against them.
Page 158: Waste Electrical And Electronic Equipment (Weee) Directive
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive ﬂoors or dissipating ﬂoor mats. • Use conductive ﬁeld service tools. • Use a portable ﬁeld service kit with a folding static-dissipating work mat. If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part.
Page 159: English Notice
à la préservation des ressources naturelles et garantit que ces appareils seront recyclés dans le respect de la santé humaine et de l’environnement. Pour obtenir plus d’informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités HP ProLiant DL380 G5 Storage Server...
Page 160: German Notice
locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit. German notice Entsorgung von Altgeräten aus privaten Haushalten in der EU Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden darf.
Page 161: Latvian Notice
Descarte de Lixo Elétrico na Comunidade Européia Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo HP ProLiant DL380 G5 Storage Server...
Page 162: Slovakian Notice
Para obter mais informações sobre locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.
Page 163 återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för återvinning. HP ProLiant DL380 G5 Storage Server...
Page 164 Regulatory compliance and safety...
Page 165: Index
128 shared disks, 129 connectivity, verifying, 128 conventions document, 14 text symbols, 14 data blocks, 47 data striping, 47 disk access, verifying, 129 Disk Management description, 56 extending volumes, 61 Disk Manager, 39 HP ProLiant DL380 G5 Storage Server...
Page 166 107 document installing, 108 conventions, 14 front panel related documentation, 13 components, 25 documentation controls and indicators, 26 HP web site, 13 providing feedback, 15 domain membership, verifying, 128 dual data paths, 124 grounding methods, 157 dynamic disks group,...
Page 167 77 adding users and groups, 75 ﬁle level permissions, 74 removing users and groups, 75 ownership of ﬁles, 79 modifying, 75 server resetting, 76 identiﬁcation, 17 physical conﬁguration, 38 physical disk resources, 121, 135 HP ProLiant DL380 G5 Storage Server...
Page 168 Server for NFS Authentication DLL, 100 technical support described, 100 HP, 15 Service for User Telnet Server, 42 for Active Domain controllers, 100 enabling, 43 services for AppleTalk, installing, 115 sessions information, 43 Services for UNIX, 49, 50 text symbols, 14...

HP ProLiant DL380 G5 Administration Manual

About this Guide

The HP Storage Server Solution

Storage Server Speciﬁcations and Image Conﬁgurations

Remote Access, Monitoring, and Set up Completion

Storage Management Overview

File Server Management

Print Services

Other Network File and Print Services

Cluster Administration

Quick Links

Troubleshooting

Related Manuals for HP ProLiant DL380 G5

Summary of Contents for HP ProLiant DL380 G5
