SERVICE PARTS

See your Ariens dealer to purchase service
parts for your unit.
Description
Ariens Hi-Temp Grease
• 97 ml (3 oz) cartridges (3)
• 414 ml (14 oz) cartridge (1)
Ariens L3 Lube – 237 ml (8 oz) 00068800
Shear Bolt and Nut
Fuel Stabilizer – 118 ml (4 oz) 04730400
Gearcase Seal Washer
20 Watt Headlight Bulb
Spark Plug
Ariens 5W-30 Engine Oil
• 473 ml (16 oz)
• 946 ml (32 oz)
CHECK DUAL HANDLE
INTERLOCK
1. Stop engine.
2. Engage attachment clutch and then the
traction drive clutch.
3. Release the attachment clutch lever. The
attachment clutch should stay engaged
until the traction drive clutch lever is
released.
If dual handle interlock does not operate
correctly, adjust or repair as directed in the
service guide for your unit.

CHECK FASTENERS

Check for loose hardware.
CHECK CLUTCH CABLE
ADJUSTMENTS
Auger / impeller must stop within 5 seconds
when attachment clutch lever is released.
Wheels must stop quickly when traction drive
clutch lever is released.
If clutches do not engage or disengage
correctly, see Adjust Attachment Clutch &
Brake on page 18 or Adjust Traction Drive
Clutch on page 20. Refer to the service guide
for your unit for more information about clutch
repairs.

CHECK TIRE PRESSURE

Keep tires inflated to pressure listed on tire
sidewall.
Part No.
00036800
00036700
53200500
04742500
(for Canada
Only
06400920
00432600
21547400
00091000

CHECK ENGINE OIL

00067600
NOTICE: Engine oil level must be maintained
at correct level or engine damage may occur.
Refer to engine manual.

CHANGE ENGINE OIL

Refer to engine manual.

CHECK AUGER GEARCASE OIL

Gearcases are filled to the correct level at the
factory. Unless there is evidence of a leak, no
additional lubricant is required.
If a leak is suspected, check oil level. See
your dealer for repair.
1. Place unit on flat, level surface.
2. Remove oil fill plug and seal washer. See
IMPORTANT: DO NOT remove gearcase
cover.

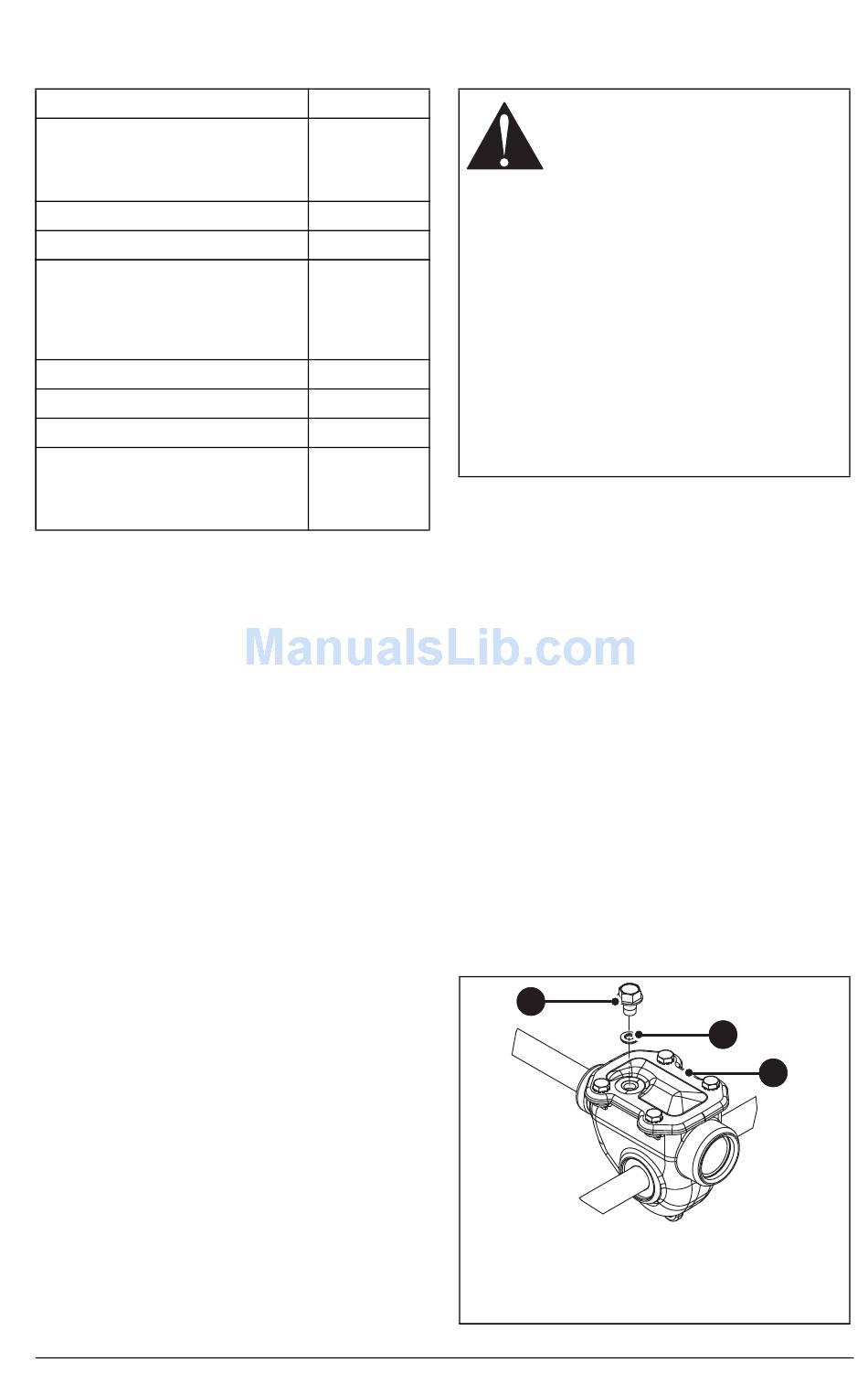

1. Auger Gearcase Cover
2. Oil Fill Plug
3. Seal Washer
EN - 13
WARNING: AVOID INJURY.
Explosive separation of tire and
rim parts is possible.
• DO NOT inflate tires above
the recommended pressure.
• DO NOT inflate tires with a
compressor; use a hand
pump.
• DO NOT stand in front of tire
assembly when inflating. Use
a clip-on chuck and extension
hose long enough to allow you
to stand to one side.
• DO NOT mount a tire without
proper equipment and
experience.
Figure 16.
2
Figure 16
3
1
