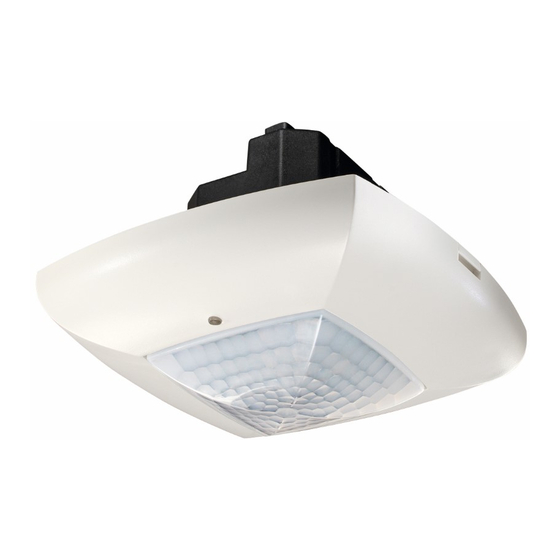

Presence detector
compact office 24V
compact office 24V Lux
Art. Nr. 201 4 000
Art. Nr. 201 4 001
D
Bedienungsanleitung
F
Notice d´utilisation
Installation manual
GB
Manual de instrucciones
E
Istruzioni per l'uso
I
Gebruikershandleiding
NL
Bruksanvisning
S
Bruksanvisning
N
Käyttöohje
FIN
Betjeningsvejledning
DK
2
22
42
62
82
102
122
142
162
182
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Theben compact office 24V
Summary of Contents for Theben compact office 24V

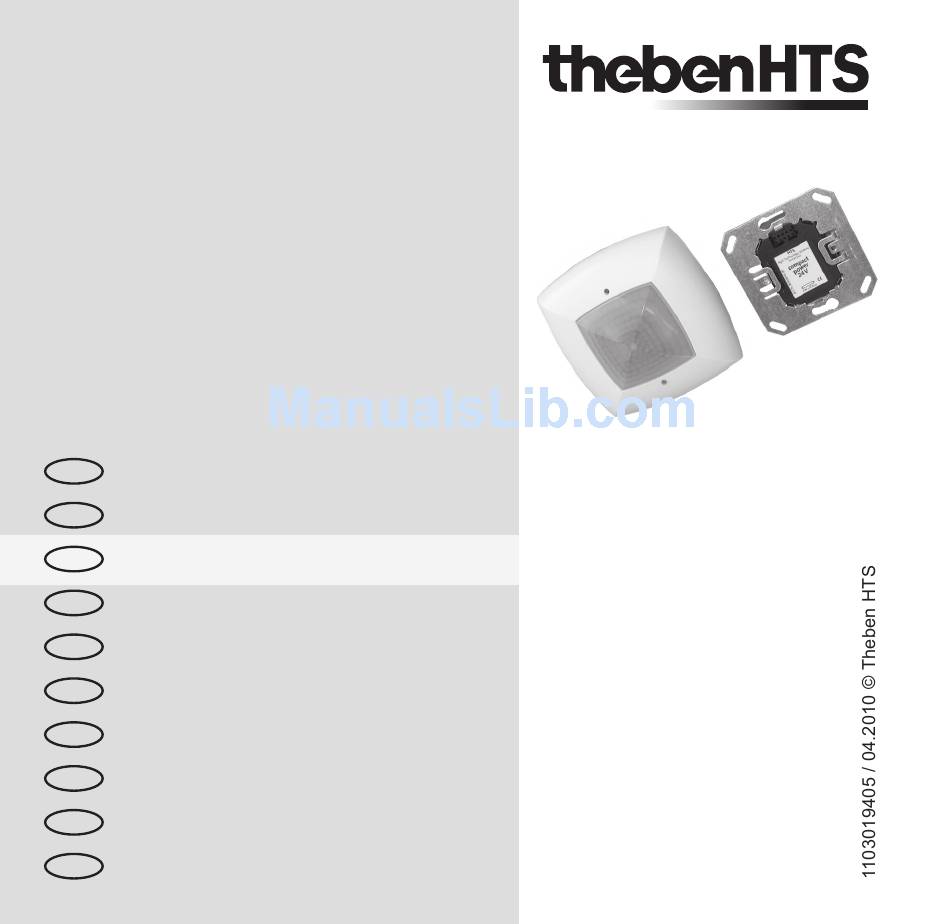

- Page 1 Presence detector compact office 24V compact office 24V Lux Art. Nr. 201 4 000 Art. Nr. 201 4 001 Bedienungsanleitung Notice d´utilisation Installation manual Manual de instrucciones Istruzioni per l'uso Gebruikershandleiding Bruksanvisning Bruksanvisning Käyttöohje Betjeningsvejledning...
-
Page 2: Table Of Contents
Presence detector compact office 24V compact office 24V Lux Table of contents 1. Safety ..........43 2. -
Page 3: Safety
Thank you for purchasing an Theben HTS presence detector and putting your trust in us. 1. Safety Familiarise yourself with the compact office 24V (Lux) before assembly and start-up by reading this operating instructions. IMPORTANT! The unit requires no maintenance. Opening the unit or inserting foreign bo- dies into it will invalidate the warranty. -
Page 4: Function And Performance Characteristics
Simultaneously, its light sensor measures the brightness in the room and compares it to the preset bright- ness threshold. Two relays (compact office 24V) or one relay (compact office 24V Lux) serve as switching outputs. -
Page 5: Fitting And Connection
● Adjustable switch-on delay and switch-off delay ● Surveillance function The analog output 0-10V (compact office 24V Lux only) provides the brightness measured by the detector’s light sensor as an analog signal. The output can be used like a light sensor and functions independently from the presence detector. - Page 6 M’height Seated persons Walking persons 2,0m 3,0m x 3,0m 20 m 4,5m x 4,5m ± 0,5m 2,5m 16 m 4,0m x 4,0m 36 m 6,0m x 6,0m ± 0,5m 3,0m 20 m 4,5m x 4,5m 49 m 7,0m x 7,0m ± 1,0m 3,5m 64 m 8,0m x 8,0m ±...
- Page 7 3.2 Light measurement The detector measures artificial light and daylight reflected directly beneath the detector (beam width approx. ± 30°). The mounting location is used as the reference for the lighting levels. With indirect lighting, the artifi- cial light at the detector’s mounting location should not exceed 2000 Lux (Brightness value >...
-
Page 8: Start-Up
4. Start-up The detectors are supplied ready for operation with a factory setting of re- commended standard values. The QuickSet plus service remote control for starting-up the system is optionally available. With the remote control all poten- tiometer values can be set from a distance. 4.1 Settings for switching contact A «Light»... - Page 9 0-10V lin 0-10V log 4.2 Settings for analog output 0-10V (compact office 24V Lux only) Linear or logarithmic output of brightness ● „0-10V lin“: linear output of brightness ● „0-10V log“: logarithmic output of brightness; improved resolution at low...
- Page 10 4.3 Settings for switching output B «Presence» (compact office 24V only) Switch-off delay time for presence ● The pre-set values remain unchanged (no self-learning effect). Switch-on delay time for presence ● In case of presence, the contact does not close before the set switch-on delay has elapsed.
- Page 11 4.4 Behaviour on switching on Whenever the sensor module is plugged onto the power module or the unit is energised, the detector goes through tree phases which are indicated by an LED. 1. Start-up phase (30sec) ● LED flashes every second, both contacts are closed (light and presence on) ●...
-
Page 12: Parallel Circuit Operation
5. Parallel circuit operation ● The relay outputs of a number of detectors can be connected in parallel circuit operation. This enables coverage of large and irregularly shaped rooms such as corridors, underground parkings e.g. ● A parallel connection of 0-10V analogue outputs is not permissible. ●... -
Page 13: Use Of The User Remote Control Clic
6. Use of the user remote control clic Please note that the user remote control clic can only be used to a limited extent with a number of detectors connected in parallel. Amount of devices Group adresses clic One device Group addresses freely selectable. -
Page 14: Test Operation
7. Test Operation The test mode serves to check the presence detection and the wiring. 7.1 Setting the test mode with DIP-Switch ● Set DIP switch to «Test». 1. Start-up phase (30sec) ● Both contacts are closed for 30sec. (LED 20s «on», 10s «off» ) 2. -
Page 15: Technical Specifications
8. Technical specifications Sensor module compact office 24V Detection range: horizontal 360° vertical 120° Recommended mounting height (Mh) 2,0 - 3,0m Maximum range 6 x 6 m (Mh. 2.5m) 8 x 8 m (Mh 3.5m) Mixed light control ca. 10 - 1500Lux Light measurement deactivated „on“... - Page 16 0° - 50°C Degree of protection IP 40 Article numbers compact office 24V 201 4 000 compact office 24V Lux 201 4 001 Surface frame for compact 907 0 514 Service remote control QuickSet plus 907 0 532 User remote control clic...
-
Page 17: Warranty Declaration
Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a de- fect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●... -
Page 18: Troubleshooting
10. Troubleshooting Fault Cause Lighting does not switch on Lux value setting is too low; Lighting was switched or switches off in case of off manually with clic; Person is outside the detec- presence and darkness tion range; Detection is disturbed by obstacles; Set switch-off delay setting is too short With persons present, the Lux value setting is too high;... - Page 19 Dimensions compact office 24V, compact office 24V Lux 102,5 ∅ ∅ Subject to change without prior notice. Errors and omissions excepted.
- Page 20 Fax +49 (0) 74 74 692 - 207 hotline@theben.de Switzerland Theben HTS AG Im Langhag 11, CH - 8307 Effretikon Tel. +41 (0)52 355 17 00 Fax +41 (0)52 355 17 01 www.theben-hts.ch Please find the contact addresses for additional countries on www.theben.de...
