Victor 88C User Manual

VICTOR 88C
User's Manual for VICTOR 88C Digital
Multimeter
Contents Contents Contents
I. Summary ................................................
II. For purchasers of this multimeter ...............
III. Unpacking inspection ..............................
IV. Features .............................................
V. Operation method .................................
VI. Device maintenance ..............................
VII. Trouble shoot .......................................
I. I. I. Summary Summary
Summary

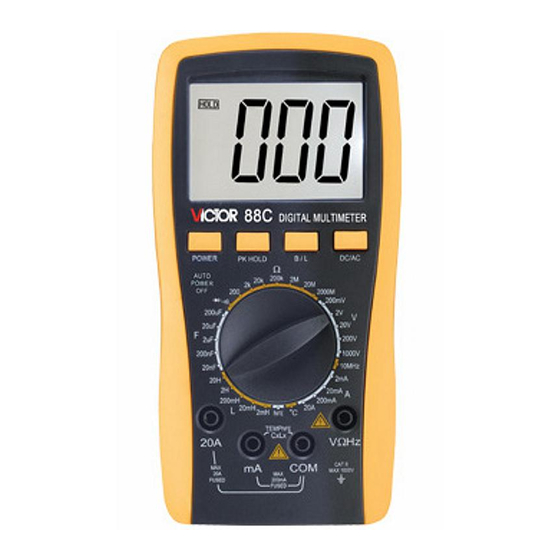

This series product is a stable and battery-driven 3 1/2 digital
multimeter with high reliability. It adopts LCD screen with character
height of 28mm; with functions including unit sign/backlight and
overload protection, it is easy to use.
This series of device can be used to measure DCV, ACV, DC,
AC, resistance, capacitance, inductance, diode, triode, open circuit,
temperature and frequency, as well as hold peak value. As an
instrument with excellent performance it adopts double integral A/D
converter as its core.
II. II. II. For For For purchasers purchasers purchasers of of of this this this multimeter multimeter multimeter
1. 1. 1. Safety Safety notice Safety notice notice
This series of device is designed according to IEC1010
standard (safety standard issued by International Electrotechnical
Committee). Please read these safety notices before using it.
1-1. Never input DC higher than 1000V or AC higher than 750V
virtual voltage as measuring voltage;
1-2. The voltage lower than 36V is safe. Please confirm the
earthing, connection and isolation of pencils to avoid electric shock
when measuring the voltage of DC higher than 36V or AC higher
than 25V;
1-3. Pencils should be away from test points when switching
function or range;
1-4. Select correct function and range and beware of miss-
operation. You may still be careful to ensure the safety even the
device has range protection functions.
1-5. Never input current higher than 20A when measuring current;
1-6. Introduction for safety sign
" " Dangerous voltage existing; "
isolation; " " Shall refer to the user's manual; " " Low battery.
III. III. Unpacking III. Unpacking Unpacking inspection inspection inspection
Open the package to check if all parts and accessories are all right
in the box
1. Multimeter 1
2. Battery (9V) 1
3. Leather case 1
4. Vibration proof sheath 1
5. Acceptance certificate 1
6. Crocodile clip 1 pair
7. Temperature probe (banana type) 1 pair
8. Testing accessory 1
9. Pencil (20A) 1 pair
10. User's manual 1
IV. Features
IV. Features IV. Features
1. 1. 1. General General features General features features
1-1. Display mode: LCD;
1-2. Max display: 1999 (3 1/2) digits automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 time per second;
1-5. Over-range display: the highest digit displays "OL" or "-OL"
1-6. Low voltage display：" ";
1-7. Working environment: (0～40)℃, relative humidity: <80%;
1-8. Power supply: one 9V battery (6F22 or equivalent model);
1-9. Dimension: 189mm * 97mm * 35mm (length*width*height);
1-10. Weight: about 400g (including 9V battery);
2. 2. 2. Technical Technical Technical features features features
2-1. Accuracy: ±(a% × reading data + character number), ensure in
accuracy environment temperature:
(23±5)℃, relative humidity <75%, and the calibration warranty
period lasts for one year from the date of leaving the factory.
2-2. Performance (▲ indicates the function is available for this
model)
Function
DCV
ACV
DCA
" Earthing; " " Double
ACA
Resistance
Diode/ Open circuit
Triode
Capacitance
Temperature
Frequency
Inductance
Auto power off
Backlight
Peak value holding
2-3. Technical index
2-3-1. DCV
2-3-1. DCV 2-3-1. DCV
Range
200mV
2V
20V
200V
1000V
Input impedance: All range is10MΩ;
Over load protection: 250V DC or 205 V AC peak value for range
2-3-2. 2-3-2. ACV 2-3-2. ACV ACV
Range
200mV
2V
20V
200V
750V
Input impedance: All range is10MΩ;
Over load protection: 250V DC or 205 V AC peak value for range
Frequency response: 40~400Hz for range under 200V; 40~100Hz
for range 750V;
Display: Sine wave virtual value (AVG value response).
2-3-3. 2-3-3. 2-3-3. DCA DCA DCA
Range
2mA
20mA
200mA
20A
MAX measurement voltage drop: 200mV;
Model
VICTOR 88C
▲
▲
▲
▲
Ω ▲
▲
hFE ▲
C ▲
℃
▲
f ▲
L ▲
▲
▲
▲
Resolution
Accuracy
100uV
1mV
±(0.5%+3)
10mV
100mV
±(1.0%+5)
200mV; 1000V DC or 1000V AC peak value for other.
Resolution
Accuracy
±(1.2%+3)
±(0.8%+5)
750V
200mV; 1000V DC or 1000V AC peak value for other.
Accuracy
±(0.8%+3)
±(1.2%+4)
±(2.0%+5)
1V
100uV
1mV
10mV
100mV
1V
Resolution
1uA
10uA
100uA
10mA
