Summary of Contents for PURE elan dx20

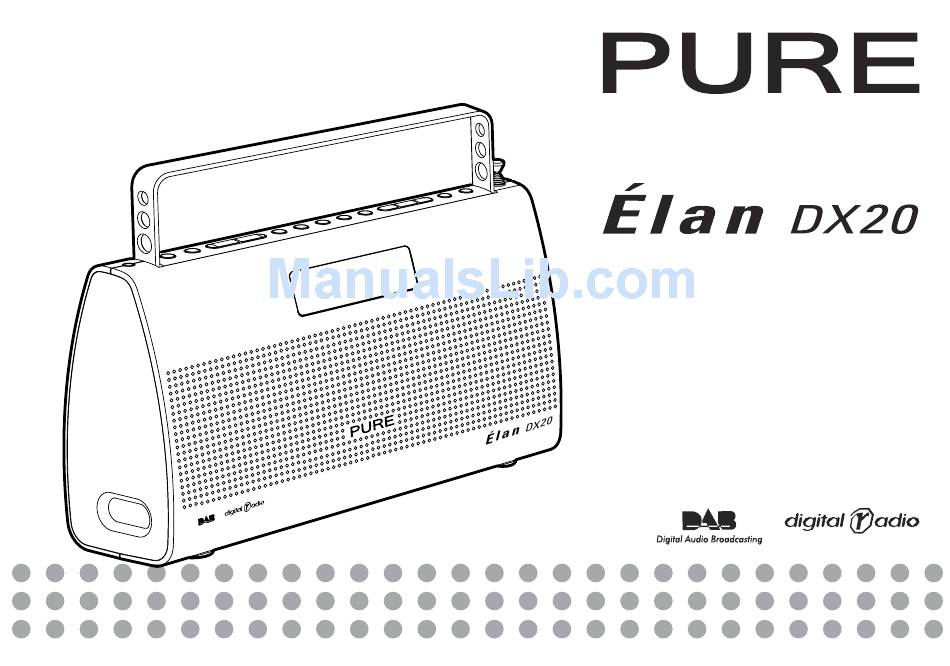

- Page 1 Owner’s Manual...
- Page 2 Please register your product on our website at www.pure.com/register or by filling in and returning your warranty card. Should you have a problem with your unit please contact your supplier or contact PURE Support at the address shown on the rear of this manual.
-
Page 3: Table Of Contents
Contents Introduction ......................1 Safety instructions ..........................1 Overview diagrams ....................2 Top panel - controls and connectors ....................2 Rear panel - connector ........................2 Base panel ............................3 LCD screen ............................3 Getting started ......................4 Switching on and off ..........................4 Listening to DAB ......................5 Changing stations .......................... -
Page 4: Introduction
Introduction Thank you for buying the PURE Élan DX20 portable stereo DAB radio. This manual provides guidance on using your radio and what to do if you have problems. Please take a minute or two to read through this manual to help you get the most out of your radio, read the safety instructions below, and register your product on our website at www.pure.com/register or by filling in and returning your warranty card. -
Page 5: Overview Diagrams
Overview diagrams Top panel - controls and connectors Power Volume +/- Menu Aerial Preset 1-5 Switch power on/off Adjust the Change audio and Adjustable Quick access volume general setup options telescopic aerial to radio presets Headphone 3.5mm Power Sleep Volume Select Select Menu... -
Page 6: Base Panel
Base panel Battery compartment Takes 6 size 'C' batteries. Slide cover and lift off. LCD screen Sleep timer Clock Signal strength sleep timer Stereo time from for current station active broadcast DAB signal 7 levels, full shown Volume volume level (14 levels, full shown) Battery level... -
Page 7: Getting Started
Fully extend the telescopic aerial, connect the mains adapter and plug in to your power supply or fit six size ‘C’ batteries. The LCD lights up, the display shows ‘PURE Elan DX20’ and a progress bar on the bottom line indicates the progress of a full autotune to find the DAB stations available in your area. -
Page 8: Listening To Dab
Listening to DAB If this is the first time you have switched your radio on, or you have just completed an autotune, 1Xtra - BBC you hear the first station on the list, otherwise you hear the last station you were listening to. Bringing you hot Default screen Changing stations... -
Page 9: Changing The Information On The Screen
Changing the information on the screen Virgin Radio Press the Info button to change what you see on the bottom line of the screen. oday's best musi Info mode - Scrolling text Scrolling text The default mode, broadcast by most stations. Program type Type of content being broadcast. -
Page 10: Setup Options
Setup options Press the Menu button, scroll using the +/- buttons and push Select to choose one of the following setup options. LCD backlight Change whether the screen backlight stays on all the time or remains on only for a short period after a button is pressed. -
Page 11: Manual Tune
Multiplex Lists stations in groups according to their multiplex. Multiplexes, sometimes called ensembles, are groups of stations owned and broadcast by a single operator. Trim stn. list Removes inactive stations from the station list. ♥ → presets Available only when Fav station order (above) has been selected. Transfers your favourite stations to the five presets. - Page 12 DRC value DRC (Dynamic Range Control) value makes the quieter sounds in a broadcast easier to hear at low volume or in a noisy environment. The DRC level of a broadcast is set by the station DRC 0 DRC 1 and sent with the signal.
-
Page 13: Using The Sleep Timer
Using the Sleep timer Classic FM Sleep 30 You can set a Sleep timer after which Élan DX20 will switch itself into standby mode, ideal if you Sleep Timer - setting want to fall asleep listening to the radio. Set the sleep timer Classic FM stress-free mix Press the Sleep button and repeat to choose between 15, 30, 45, 60 or 90 minutes or select... -
Page 14: Using Batteries
Use a separate charger such as the BC-CD6 battery charger available - the nation's f from PURE to recharge your batteries. Using batteries - charge low The battery supply is switched off when your Élan DX20 is connected to the mains. To switch... -
Page 15: Hints And Tips
Hints and Tips (<</>>) Secondary services Secondary services accompany some stations, providing extra information or alternative content and may only be broadcast at certain times. At the time of writing not many secondary services are available. If a station has secondary services available, the station shows ‘>>’... -
Page 16: Technical Specifications
Technical Specifications General Stereo DAB digital radio with full Band III DAB reception capability, for reception of all UK DAB broadcasts. Fully compliant with ETS 300 401 and capable of decoding all DAB transmission modes 1-4 up to and including 256 kbps. Speakers Two full-range 3 inch drive units Frequency range... - Page 17 PURE Digital, Imagination Technologies Ltd., Imagination House, Home Park Estate, Kings Langley, Herts, WD4 8LZ, UK +44 (0)1923 277477 support +44 (0)1923 270188 support@pure.com +44 (0)1923 277488 sales sales@pure.com 12J59...
