Summary of Contents for PURE Elan E3

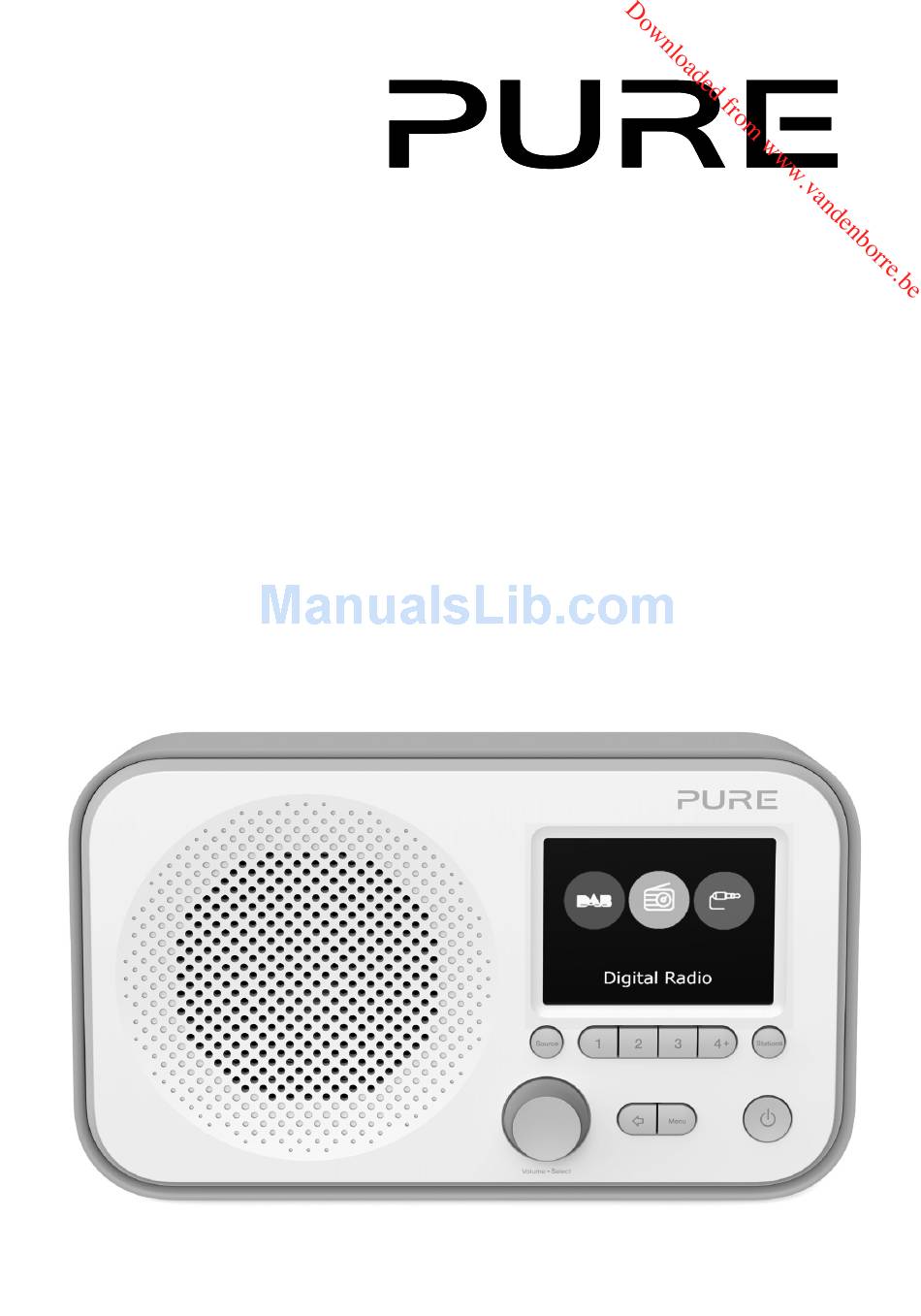

- Page 1 Elan E3...
- Page 3 Elan E3 Thank you for choosing Elan E3. This manual will get you up and running in no time, and explains how to make the most of your product.
- Page 4 Failure to install or use the product in accordance with these instructions may impair the safety of the product and invalid the warranty. Use only power supply listed in these user manual/user instructions (supplied by Pure with model number SN1603034, SN1603035 or SN1603028) to power the equipment and do not use the power supply for any other purpose.
-
Page 5: Table Of Contents
To store a station to the preset list (4-20) To recall a preset when listening to digital radio or FM radio Using the auxiliary input Connecting an auxiliary device to your Elan E3 Selecting the auxiliary input Setting alarms and timers... -
Page 6: Introduction
You’ll find the following items in the box: • Elan E3 • Power adapter Note: Retain all packaging after removing your Elan E3 and the accessories from the box. If you decide to dispose the packaging, please do so according to local regulations. Front panel controls... -
Page 7: Rear Panel Connectors
Rear panel connectors Micro B USB 3.5 mm stereo Software updates only headphone socket Aux in Battery compartment Mains input 3.5mm auxiliary input connection Compartment for four Connect to supplied mains adapter for an iPod, MP3 player, etc. AA batteries only (sold separately). -
Page 8: Display
Display Source menu Press the Source button to display the ‘Source’ menu. Turn and press the Select dial to switch between input sources. Digital Radio Description Function DAB Radio Listen to a digital radio station. FM Radio Listen to an FM radio station. Auxiliary Input Listen to content from a device connected to your Aux in connection. -
Page 9: Getting Started
• Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C). • Plug the mains adapter into the mains supply (D). Press the Standby button to switch your Elan E3 on. Wait for your radio to complete an Autotune and find all available digital stations. When the Autotune is complete, a station will start playing. -
Page 10: Listening To Digital Or Fm Radio
1. Press the Source button and turn and press the Select dial to BBC Radio 2 select ‘DAB radio’ from the Home screen. The first time you select DAB radio, your Elan E3 will perform an autotune to find Pop Music all available stations and will tune into one when finished. -
Page 11: Using The Auxiliary Input
You can use the auxiliary input on your Elan E3 to play any music from your phone or tablet. Connecting an auxiliary device to your Elan E3 Connect the line out or headphone socket of your auxiliary device to the Aux In socket on your Elan E3 using a suitable cable. -
Page 12: Setting Alarms And Timers
Setting alarms and timers Your Elan E3 has two alarms and a sleep timer. The alarm features are only functional when your Elan E3 is connected to mains power. Setting an alarm 1. Press the Menu button and turn and press the Select dial to select ‘System Settings’. -
Page 13: Options And Settings
4. Press the Select dial to toggle the loudness setting ‘On’ or ‘Off’. Choosing a custom equalisation setting When you have finished setting up your profile, carry out the following to listen to it on your Elan E3. 1. Press the Menu button to view the main menu. - Page 14 Turn and press the Select dial to set the hour. Repeat to adjust the minutes. Note: If you have set your Elan E3 to use the 12 hour time format, make sure that you select the ‘AM’ or ‘PM’ version of the hour before pressing the Select dial.
-
Page 15: Changing Your Preferred Language
Turn and press the Select dial to choose ‘System settings’ > ‘Factory Reset’. Turn and press the Select dial to select ‘Yes’ to reset your Elan E3 to factory settings. Select ‘No’ if you do not want to reset your Elan E3 to factory settings. - Page 16 ‘On’. On level To specify the brightness of the screen when your Elan E3 is switched on: Press the Menu button to view the main menu. Turn and press the Select dial to choose ‘System settings’ > ‘Backlight’.
-
Page 17: Dab Settings
When the autotune has finished, your Elan E3 will tune to the last station that you were listening to. If the last station you were listening to is no longer available, your Elan E3 will tune into the first station in the alphabetical list. -
Page 18: Fm Radio Settings
Select between ‘Stereo Allowed’ or ‘Forced Mono’. FM scan You can choose whether your Elan E3 automatically stops at the next available FM station or the next available FM station with a strong signal when scanning for an FM station. To change the FM scan setting: Press the Menu button. -
Page 19: Specifications
Specifications Radio Digital (DAB/DAB+) and FM radio. Frequencies Digital Band III 174–240 MHz, FM 87.5-108 MHz (with RDS). Display 2.8", 320 x 240, TFT colour display. Speaker 3" full range driver, 2 Watts output Input connectors 6 V DC power adapter socket (adapter supplied) Output connectors 3.5mm stereo headphone socket Power supply... - Page 20 This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com...
- Page 21 Pure Pure Pure - Vertrieb uber: sales_gmbh@pure.com Imagination Technologies Limited TELANOR AG http://support.pure.com Home Park Estate Unterhaltungselektronik Kings Langley Bachstrasse 42 Herts, WD4 8LZ 4654 Lostorf United Kingdom Schweiz/Switzerland www.pure.com info@telanor.ch http://support.pure.com www.telanor.ch...
- Page 22 Version 1...
