ZGU384 GAS COOKTOPS WITH 30" VENT
2-3/4"
22-3/8"
Cutout
Depth 19-5/8"

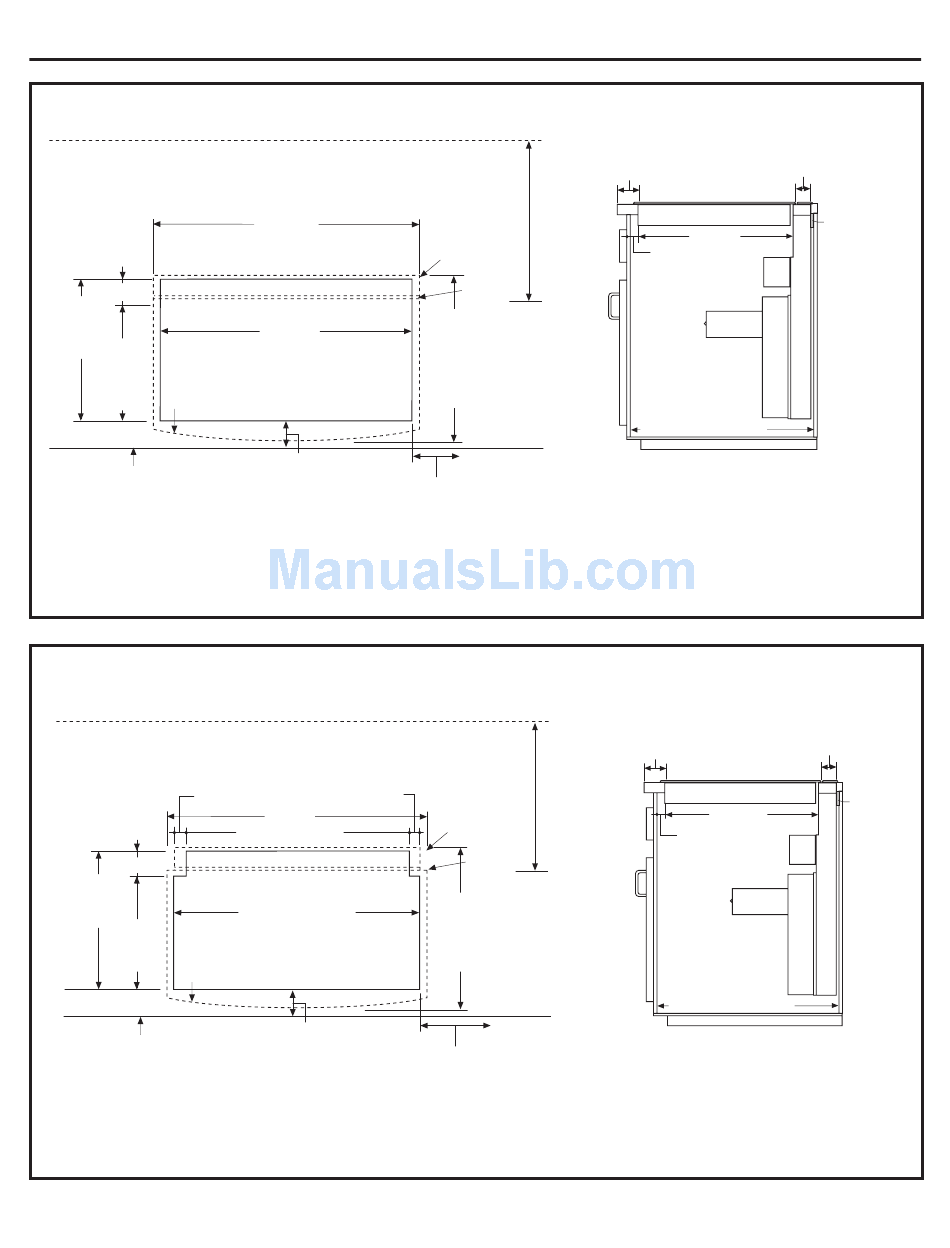

Cooktop and Vent Cutout
Cooktop
7/16" Cooktop Overlap
Cutout
(1-1/4" at Center)
Depth
Front Edge
of Countertop
Countertop Cutout: Requires 23-7/8" min. fl at countertop
surface and 25" min. total countertop depth.
ZGU375 GAS COOKTOPS WITH 36" VENT
9/16"
2-9/16"
21-7/16"
Cutout
Depth 18-7/8"
Cooktop
7/16" Cooktop Overlap
Cutout
(1-1/4" At Center)
Front Edge
of Countertop
Countertop Cutout: Requires 22-3/4" min. fl at
countertop surface and 25" min. total countertop depth.
Installation Preparation
2-7/8" Min. Cooktop Cutout to Rear
Vertical Combustible Surface
30-3/4"
28-1/2"
2-1/2" Min.
12" Min. Cutout
Clearance to Cutout
to Side Walls
3-3/8" Min. Cooktop Cutout to Rear
Vertical Combustible Surface
9/16"
36-1/2"
34" Vent Cutout
35-5/16"Cooktop
Cutout
2-3/4" Min.
Clearance to Cutout
11-9/16" Min. Cutout
to Side Walls
2-1/2" to
1/4" Overlap
1/8" Gap
23-7/8"
Total Flat
Surface
Required
1/4" Overlap
1/8" Gap
22-3/4"
Total Flat
Surface
Required
9
1-7/8"
Cutout
ZGU384
20-3/8"
3/4"
Vent
22-3/4" Inside
22" to Support Rail
Cabinet: Requires 23" min. inside
cabinet depth. See Creative Solutions,
install in an island or move cabinet
base forward.
2-3/4" to
Cutout
ZGU375
19-7/16"
1"
Vent
22-3/4" Inside
22" to Support Rail
Cabinet: Requires 22-5/16" min.
inside cabinet depth. Remove rear
support rail.
3/4"
Thick
Support
Rail
1-7/8"
3/4"
Thick
Support
Rail
