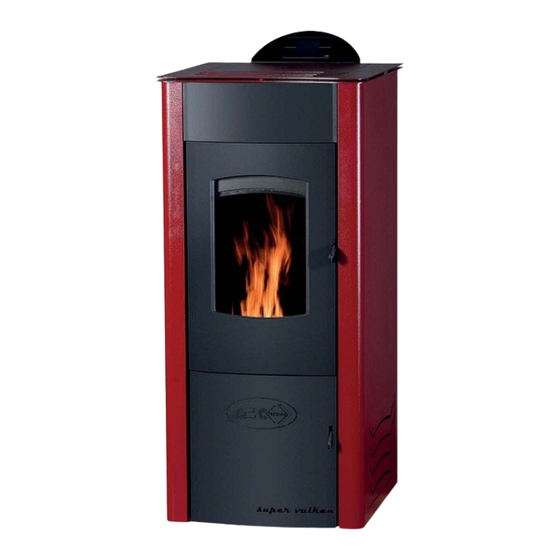

abc 23kW SUPER VULCANO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL FOR
23kW SUPER VULCANO PELLET STOVE

Advertisement

Table of Contents
loading

Related Manuals for abc 23kW SUPER VULCANO

Summary of Contents for abc 23kW SUPER VULCANO

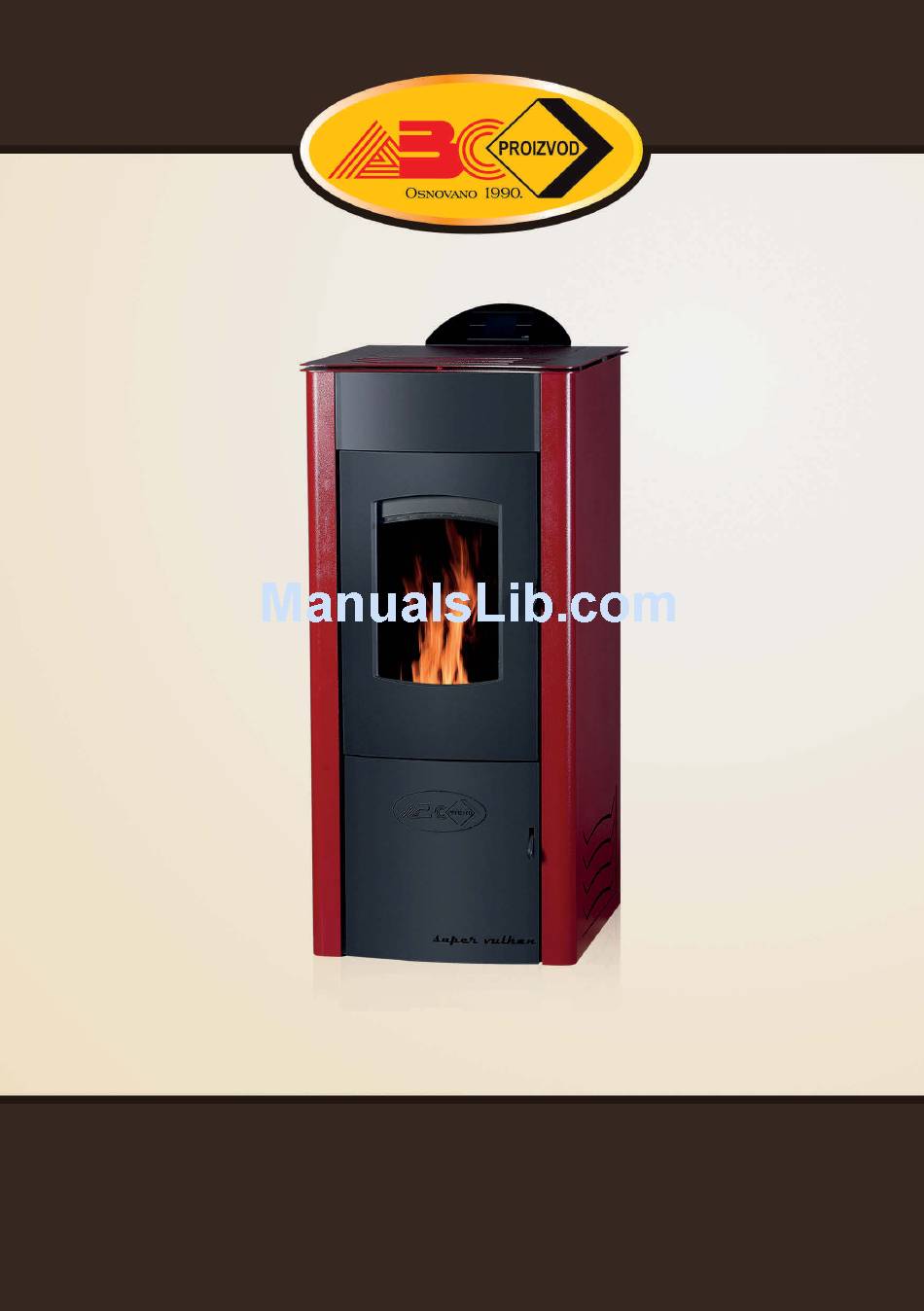

  • Page 1 USER MANUAL FOR 23kW SUPER VULCANO PELLET STOVE...

  • Page 2: Table Of Contents

    10. Pellet Power Settings ..............17 11. Set Temperature Settins............... 17 12. Pellet Loading Correction ............. 18 13. Cleaning and Maintenance ............18 14. Appendix ..................22 ABC PROIZVOD D.O.O. Miloša Obrenovića 2 31000 Užice telefoni: +381 (0)31 514 501. 514 502 e-mail: office@abcproizvod.rs...

  • Page 3: Warnings

    1. WARNINGS The User Manual constitutes an integral of the product. Should the User Manual be damaged or lost, ask your installer or dealer to provide you with the full set of undamaged instructions. The product must be installed by a qualified installer, what implies full responsibility and the first ignition.

  • Page 4: Safety Distances

    2.1 List of Safety Devices Safety valve § Thermostatically controlled pump § Water temperature indicator (display) § Water pressure indicator (display) § Minimum and maximum pressure indicator § Safety thermostat (water thermostat) § Expansion vessel § Safety pressure switch § The product is designed for the installation on the closed central heating system 3.

  • Page 5: Stove Connection To The Chimney

    4. STOVE CONNECTION TO THE CHIMNEY RIGHT Indoor chimney Outdoor chimney Insulated part with the hole for cleaning (Figure 3.) WRONG Ash accumulation Ash accumulation (Figure 4.)
  • Page 6 WARNING: The horizontal line of flue pipes must have a slope of minimum 3%. § The horizontal line length of flue pipes must be minimum and no § longer than 3m. The number of flue pipe elbows and T-fittings must not exceed 4. §...

  • Page 7: Pellet Specifications

    5. PELLET SPECIFICATIONS What is pellet? The wooden pellet is standardized fuel. Every manufacturer must comply with certain rules in order to provide highly energy efficient heating. Please check with your local dealer for the list of manufacturers of attested pellets. The use of poor quality pellets may have a negative impact on the stove operation.

  • Page 8: Display

    5.1 Storage of Pellets It is very important that the pellets are stored at the dry place. It is not advisable to store pellets in bags exposed to atmospheric conditions. Too wet pellets may block the auger or stove operation. 6.
  • Page 9 Designations Meaning Firing up the stove if the button is pressed for 3 seconds Stove shutdown and alarm reset if the button is pressed for 3 seconds Access to the Settings Menu Access to the Main Menu Access to the Info Menu Designations Meaning Return to the Home Screen...

  • Page 10: User Menu

    Meaning Designations Heater ON Motor-reducer ON Circulating pump ON Solenoid valve open Output V2 ON Output Aux 2 ON Output Aux 3 ON Visualization: By pressing the info button the visualisation settings are accessed. Temperature of exhaust gases (C°) Exhaust T: Water temperature in the boiler (C°) Water T: Water pressure in the boiler (mbar)
  • Page 11 Menu contents Description Functioning Menu for changing combustion modes Combustion power setup menu Pellet Power Not in function Wood Power Combustion Management Pellet Recipe Not in function Auger Calibration Setup menu for the motor-reducer uptime Fan speed setup menu Fan Calibration Setup menu for the maximum and minimum Boiler Thermostat temperature in the boiler...
  • Page 12 7.1 Chrono Menu – Time setting The menu is designed to set the timing of stove start-up and shutdown. § To set the time settings press the "Chrono" button in the upper right corner of the screen. Time settings Time settings Select enabled...
  • Page 13 7.2 Time Settings § By pressing "Edit timetable" you will access the cards for time settings for each of the offered modes. § By pressing the left or right arrow in the first row, we choose between the three offered modes: “daily mode”,”weekly", and ”week-end".
  • Page 14 Stove On Time Stove Off Time § The card shows the day or group of days of the week as well as time settings. The time on the left side shows the stove on time, while the time on the right side shows the stove off time. §...
  • Page 15 7.4 Alarms Alarm Description Safety Thermostat HV 1 Er 01 Safety Pressure Switch HV 2 Er 02 Shutting down due to the low temperature of exhaust gases / high Er 03 temperature in the hoper Shutting down due to too high water temperature Er 04 Shutting down due to too high temperature of exhaust gases Er 05...

  • Page 16: Technical Characteristics

    8. TECHNICAL CHARACTERISTICS Characteristics Value Efficiency ratio (%) 90,1 Height (mm) 1254 Width (mm) Depth (mm) Weight (kg) Min-max stove power (kW) 8-23 Water volume (l) Hoper capacity (kg) Operation autonomy (Max/h - Min/h) 31 - 13 Flue pipe diameter (mm) Necessary draught (Pa) Pellet consumption (Min - Max) 1,6kg/h - 4kg/h...
  • Page 17 (Figure 6.) Safety valve 3bar Hot water Outlet line Connection for the flue pipe Ø 120mm Return line Cold water Connection for the fresh air supply Ø 60mm Safety valve discharge drain Thermometer Pressure gauge Balance valve Thermostatic mixing valve 55°C 6,8,9 Valve Installation refilling system...
  • Page 18 § The power cable is connected to the mains (220V) and the stove is turned on via the main switch on back side of the stove § The auger is filled with pellets in the following manner (the hoper must be loaded with pellets): 1.

  • Page 19: Pellet Power Settings

    10. PELLET POWER SETTINGS Press on the main screen. Press the field “Combustion Management” and then “Pellet Power “ Select the desired power by pressing the card (from 1 to 5) or select the automatic mode on the next page (press ).

  • Page 20: Pellet Loading Correction

    12. PELLET LOADING CORRECTION This function shall be used to fine tune the pellet power. If the power 5 is too high and power 4 insufficient, the power shall be corrected from 5 to - 1,2,3 so as to obtain the power between 4 and 5. Press on the main screen.
  • Page 21 Daily Cleaning Super Volcano pellet stove is equipped with the automatic system that controls the periodic mechanical cleaning of the burner. However, it is recommended to remove ash residue from the burner by a vacuum cleaner every 2-3 days. ( Figure 8) To clean the heat exchanger, the crank may be pulled only when the stove is cold.
  • Page 22 Weekly Cleaning Clean the firebox and ash trap from ash: § empty the ash trap on a weekly basis or more frequently as needed § pull the flame deflector up and outward (Figure 9) § it is recommended to vacuum clean dust and ash in the firebox section minimum once a week by using the adequate vacuum cleaner (Figure 10)
  • Page 23 The flue gas duct shall be cleaned once every two months or at the end of the heating season depending on the stove mode and pellet quality. The cleaning opening is to be assessed by pulling the bottom part of the cover onward, removing the couplings and then by pulling it down (Figure 12) Cover of the opening for cleaning...

  • Page 24: Appendix

    CE requirements and provisions (Construction Products Directive) 89/ 106/ EEC as well as the following harmonized standard: EN 14785 In 2007, ABC PROIZVOD doo, Užice implemented the quality management system SRPS ISO 9001/ 2008, which is maintained and improved. Another 2 standards have been implemented since 2013:...
