Summary of Contents for ptcl PTCLSmart EC1309V2
- Page 1 SmartTV Set Top Box User Guide Pakistan Telecommunication Company Limited...
-
Page 2: Table Of Contents
EC1309V2 User Guide Contents Contents 1 EC1309V2 ................1 Items in the Packaging Box ............1 Appearance ................. 2 Front Panel .................. 2 Rear Panel ................... 3 2 Remote Control ..............5 Instructions for Studying Key Functions........8 3 Use STB for the First Time..........12 Connecting the Cables ..............12 Starting the EC1309V2.............13 4 FAQs................. -
Page 3: Ec1309V2
EC1309V2 User Guide 1 EC1309V2 EC1309V2 Items in the Packaging Box Item Quantity Remote control Battery Power adapter Audio/video cable RJ45 cable User Guide... -
Page 4: Appearance

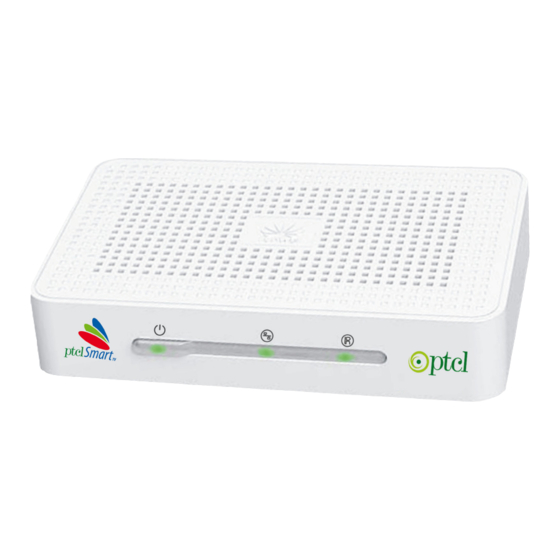

EC1309V2 User Guide 1 EC1309V2 Appearance Front Panel... -
Page 5: Rear Panel
EC1309V2 User Guide 1 EC1309V2 Power indicator. If the indicator is in green, it indicates that the STB is in active mode. If the indicator is in red, it indicates that the STB is in standby mode. Link indicator. If the indicator is in green, it indicates that the STB is connected to the network. - Page 6 EC1309V2 User Guide 1 EC1309V2 Name Description Port for connecting to S-Video input port of a Port for connecting to Composite video input port of a TV. Port for connecting to left audio channel input port of a TV. Port for connecting to right audio channel input port of a TV.
-
Page 7: Remote Control
EC1309V2 User Guide 2 Remote Control Remote Control... - Page 8 EC1309V2 User Guide 2 Remote Control Description Switch the status of TV Set between working and standby. Study the functions of a TV remote control. For details, see Instructions for Studying Key Functions. Switch the video output of a TV between AV and TV.
- Page 9 EC1309V2 User Guide 2 Remote Control Description Switch key (defined by EPG). Display the information about the current program. Change channels. 15/17 Move the cursor upward and downward on the EPG. Control sound volume. 16/18 Move the cursor leftward and rightward on the EPG.
-
Page 10: Instructions For Studying Key Functions
EC1309V2 User Guide 2 Remote Control Description Reserved key (defined by EPG). Reserved key (defined by EPG). Reserved key (defined by EPG). Reserved key (defined by EPG). Enter digits, letters, and characters. Reserved key (defined by EPG). Switch between text input methods. Instructions for Studying Key Functions Overview Your Set Top Box (STB) remote control is able to study the... - Page 11 EC1309V2 User Guide 2 Remote Control Only the keys on the TV study keypad on your STB remote control are used for studying the functions of keys on your TV remote control. The other keys on your STB remote control are used for controlling the STB. There are five keys on the TV study keypad: Study This key is used for enabling the STB remote control to...
- Page 12 EC1309V2 User Guide 2 Remote Control Step 1 Hold down Study on the TV study keypad on your STB remote control for 3 seconds until the indicator next to the Power key on the TV study keypad is steady on. Your STB remote control enters the study mode.
- Page 13 EC1309V2 User Guide 2 Remote Control Step 4 Repeat steps 2 and 3 to study the functions of the other three keys (TV/AV, VOL+, and VOL-). Step 5 Press Study to save the settings and to exit the study mode. After that, you can control your TV by using the four keys (Power, TV/AV, VOL+, and VOL-) on the TV study keypad on your STB remote control.
-
Page 14: Use Stb For The First Time
EC1309V2 User Guide 3 Use STB for the First Time Use STB for the First Time Connecting the Cables... -
Page 15: Starting The Ec1309V2
EC1309V2 User Guide 3 Use STB for the First Time The steps for cable connection are as follows: Step 1 Use the audio cable to connect the audio output ports of STB (Audio L and Audio R) with the corresponding audio input ports of the TV. - Page 16 EC1309V2 User Guide 3 Use STB for the First Time Step 2 Turn on the TV, and then change the signal input mode to a correct mode such as AV, or HDMI. For example, if the default input signal type of the TV is HDMI and the STB is connected to the TV through an AV cable, you need to adjust the input mode of the TV to AV.
-
Page 17: Faqs
EC1309V2 User Guide 4 FAQs FAQs Problem Possible Cause Solution The indicators of The STB is Check whether the the STB are off powered off. power cable is and the STB properly connected cannot be powered and the Power button on after you press on the rear panel is in the Power button... - Page 18 EC1309V2 User Guide 4 FAQs Problem Possible Cause Solution No video is The video cable is Check whether the displayed on the not properly video cable and TV screen. connected. network cable are properly connected. For details, see Connecting the Cables.
- Page 19 EC1309V2 User Guide 4 FAQs Problem Possible Cause Solution The TV set or the Switch the TV set and STB is in mute the STB to the audible mode or the volume mode and increase the is very low. volume. The remote The remote control Move the remote...
- Page 20 EC1309V2 User Guide 4 FAQs Problem Possible Cause Solution Black-and-white The video cable is Reconnect or replace images are in poor quality or is the video cable. displayed after not properly startup. connected. The TV standard of Use the remote the TV set does not control of the TV set match the TV...
-
Page 21: Specifications
EC1309V2 User Guide 5 Specifications Specifications Item Specification Input voltage 100–240 V AC, 50 Hz or 60 Hz, 0.5 A Power supply external 12 V, 1 A DC power supply Power consumption < 7 W Operating temperature: 0°C to 40°C (32ºF to 104ºF) Operating humidity: 10% to 90% Environment... - Page 22 Pakistan Telecommunication Company Limited PTCL Headquarters, G-8/4, Islamabad www.ptcl.com.pk...
