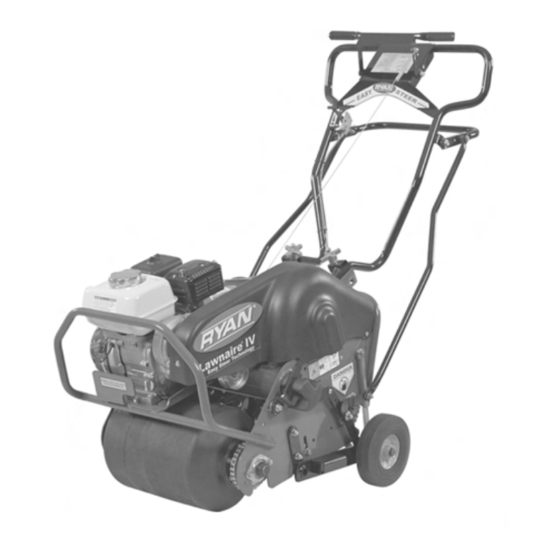

LAWNAIRE WITH
EASY STEER TECHNOLOGY
MODELS:
754915B
LAWNAIRE V with EST - HONDA
754913B
LAWNAIRE IV with EST - HONDA
Operator's Manual 4169204

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RYAN LAWNAIRE V and is the answer not in the manual?

Questions and answers

Related Manuals for Schiller Grounds Care RYAN LAWNAIRE V

Summary of Contents for Schiller Grounds Care RYAN LAWNAIRE V

  • Page 1 LAWNAIRE WITH EASY STEER TECHNOLOGY MODELS: 754915B LAWNAIRE V with EST - HONDA 754913B LAWNAIRE IV with EST - HONDA Operator's Manual 4169204...
  • Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.

  • Page 3: Table Of Contents

    Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manual thoroughly.

  • Page 4: Safety

    These words appear in this Grounds Care, Inc.'s Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and modified or changed in any manner not specifically the safety of others, read and follow the information authorized after original manufacture–including the...
  • Page 5 Lawnaire SAFETY IV & V with EST PREPARING FOR SAFE OPERATION Site preparation and circumstances Evaluate the terrain to determine what Operator preparation and training accessories and attachments are needed to Read the Operation & Safety properly and safely perform the job. Only use Manual accessories and attachments approved by the If an operator or mechanic...
  • Page 6 Lawnaire SAFETY IV & V with EST OPERATING SAFELY Interrupting operation In general Before leaving the operator's position: Use extra care when loading or unloading the - Park on level ground. machine into a trailer or truck. - Disengage the traction clutch. Slow down and use caution when making turns - Shut off the engine.
  • Page 7 Lawnaire SAFETY IV & V with EST MANEUVERING SAFELY MAINTENANCE AND STORAGE SAFETY In general In general Slow down before turning. Maintain machine according to manufacturer's Be aware when approaching blind corners, schedule and instructions for maximum safety shrubs, trees, tall grass or other objects that may and best results.
  • Page 8 Lawnaire SAFETY IV & V with EST Tines Storage WARNING Tines are sharp and can Stop the engine and allow to cool before storing cut. Use extra caution when Drain the fuel tank outdoors only. handling. Wear appropriate Store fuel in an approved container in a cool, dry personal protective equip- place ment.

  • Page 9: Assembly/Set-Up Instructions

    Lawnaire ASSEMBLY/SET-UP INSTRUCTIONS IV & V with EST GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS. UNPACKING Unpacking the aerator entails securing the handle and rolling the unit off the shipping pallet. 1.
  • Page 10 Lawnaire ASSEMBLY/SET-UP INSTRUCTIONS IV & V with EST FOR LAWNAIRE IV MODELS 1. Flip the handle locking knobs D up into position over the handle bracket E and tighten. HAND TIGHTEN ONLY!. 2. Pull up on the transport lift handle C to raise the aerator to the transport position.
  • Page 11 Lawnaire ASSEMBLY/SET-UP INSTRUCTIONS IV & V with EST REAR GUARDS 1. The two pieces of rear guarding are pre- assembled. Mount the guarding inside the frame using four (4) 5/16-18X1/2" flange bolts O. FINAL PREPARATIONS 1. Check the engine oil level. Top off if necessary. See engine manual for oil requirements.

  • Page 12: Maintenance

    Lawnaire MAINTENANCE IV & V with EST MAINTENANCE Tines: Replace damaged or broken tines. Do not weld or straighten tines. Clean tines after use, inside and out. Apply a light coat of oil to tines to prevent rust. Tine Wheels: Grease Bearings in 1-5 at the start of the season and every 25 hours .

  • Page 13: Adjustments

    Lawnaire ADJUSTMENTS IV & V with EST ADJUSTMENTS NOTE: Do not over tighten the chain. Excessive chain tension will reduce chain and bearing life. It Clutch Adjustments: can also lead to fatigue failure of the frame. The clutch cable spring should be extended 1/8" 1/4"...

  • Page 14: Transporting

    Lawnaire TRANSPORTING IV & V with EST TRANSPORTING Removing the cast weights and draining the water drum will decrease the weight for easier loading on a vehicle or trailer. If the Ryan tote trailer will be used to transport the unit, the two cast weights must be removed from the aerator frame and a locking shaft installed in their place.

  • Page 15: Storage

    Lawnaire STORAGE IV & V with EST STORAGE INSTRUCTIONS To prevent possible explosion or ignition of vaporized fuel, do not store equipment with fuel in tank or To put the equipment into service after an carburetor in an enclosure with open flame (for extended period of storage: example, a furnace or water heater pilot light).

  • Page 16: Specifications

    Lawnaire SPECIFICATIONS IV & V with EST LAWNAIRE IV LAWNAIRE V Dimensions: Dimensions: Width.......... 28" (711 mm) Width.......... 35.5" (902 mm) Length......... 51" (1295 mm) Length......... 52.5" (1334 mm) Length (handle folded)....46" (1168 mm) Length (handle folded)....46" (1168 mm) Height (transport).......

  • Page 17: Parts Section

    Lawnaire PARTS SECTION IV & V with EST PARTS SECTION...

  • Page 18: Frame Group

    Lawnaire FRAME GROUP IV & V with EST FIGURE 1...
  • Page 19 Lawnaire FRAME GROUP IV & V with EST FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64140-9 COTTER PIN, 12 x 1.12 YS 64262-018 BLT-FLG HD 3/8-16X1-3/4 4137227 SPRING-TORSION 64163-61 WASHER 841261 SPROCKET, 16T, 1/2P 2703341.7 BELLCRANK AY, IDLER 2703519 BUSHING, SH .33X.75X.88 2703756.7...
  • Page 20 Lawnaire GUARDS IV & V with EST FIGURE 2 TO TOP OF MUFFLER ON HONDA...

  • Page 21: Guards .............................................................Figure 2

    Lawnaire GUARDS IV & V with EST FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4163904 KIT,HONDA MUFFLER GUARD 1 (THIS KIT CONTAINS OTHER PARTS NOT SHOWN THAT CONNECT ITEM 4 TO THE HONDA MUFFLER.) 4164389.7 GUARD-REAR, DROP DOWN 1 (USED ON 754913B ONLY) 4164707.7 GUARD-REAR, DROP DOWN...

  • Page 22: Main Group-Lawnaire Iv

    Lawnaire MAIN GROUP-LAWNAIRE IV IV & V with EST FIGURE 3...
  • Page 23 Lawnaire MAIN GROUP LAWNAIRE IV IV & V with EST FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64163-29 WASHER-21/64 X 1 X 11GA 5 64140-9 COTTER PIN, 12 x 1.12 4124192 WHEEL, 8X2.5 SEMI-PNEUM 2 2703148 WEIGHT, LAWNAIRE 4117195 CABLE, CLUTCH 2703444...
  • Page 24 Lawnaire MAIN GROUP-LAWNAIRE V IV & V with EST FIGURE 4...

  • Page 25: Main Group-Lawnaire V

    Lawnaire MAIN GROUP-LAWNAIRE V IV & V with EST FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64163-29 WASHER-21/64 X 1 X 11GA 6 64140-9 COTTER PIN, 12 x 1.12 4124192 WHEEL, 8X2.5 SEMI-PNEUM 2 2703026 AXLE, TRANSPORT WHEEL 2 2703148 WEIGHT, LAWNAIRE 4117195...

  • Page 26: Handle Group

    Lawnaire HANDLE GROUP IV & V with EST FIGURE 5 TINE COVER (REFERENCE)

  • Page 27: Handle Group ................................................Figure 5

    Lawnaire HANDLE GROUP IV & V with EST FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64163-95 WSHR,.31.69.06 YS FLT 4164774 S-LA4 HANDLE W/DECALS 1 (USED ON LAWNAIRE IV ONLY) 4164775 S-LA5 HANDLE W/DECALS 1 (USED ON LAWNAIRE V ONLY) 2703059.7 HANDLE, HGHT ADJ.

  • Page 28: Brake Group

    BRAKE GROUP Lawnaire IV & V FIGURE 6 with EST LAIV...
  • Page 29 BRAKE GROUP Lawnaire IV & V FIGURE 6 with EST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4164802.7 MOUNT BRKT-LAIV, BRAKE 1 (USED ON LA IV MODEL ONLY) 4164276.7 MOUNT BRKT-LAV, BRAKE (USED ON LA V MODELS ONLY) 4164283.7 BRAKE MOUNT-POST 64229-02 NUT-NYLON LOCK 5/16-18...

  • Page 30: Tine Wheel Group

    Lawnaire TINE WHEEL GROUP IV & V with EST FIGURE 7 LA V LA IV...

  • Page 31: Tine Wheel Group .........................................Figure 7

    Lawnaire TINE WHEEL GROUP IV & V with EST FIGURE 7 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4168461 WLDMT-TINE,CENTER 64163-64 WASHER-.531 x 2.00 x .125 (INCLUDES ITEMS 3,7,8 & 12) (QTY 8 ON LA V) (QTY 4 ON LA IV) 4167887 SHAFT-TINE,29.5 (USED ON LA V MODEL ONLY)

  • Page 32: Drum Group

    Lawnaire DRUM GROUP IV & V with EST FIGURE 8...
  • Page 33 Lawnaire DRUM GROUP IV & V with EST FIGURE 8 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2702741.7 PLATE, FLANGE 2703108.7 DRIVE AY, LA5 DRUM (USED ON LA V MODELS) 2703102.7 DRIVE AY, LA4 DRUM (USED ON LA IV MODELS) 2703157 SPROCKET, 30T .50P 2703508...

  • Page 34: Decal Group

    Lawnaire DECAL GROUP-LAWNAIRE IV & V IV & V with EST FIGURE 9...
  • Page 35 Lawnaire DECAL GROUP-LAWNAIRE IV & V IV & V with EST FIGURE 9 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4163714 DECAL, OP INSTR LA IV & V 1 2000641 DECAL, EXPLOSION FUEL EEC 1 4169357 LABEL-RYAN EST HANDLE 1 (USED ON LA V MODELS) 4169358 LABEL-LA IV EST HANDLE...
  • Page 36 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
