BEDIENUNGSANLEITUNG
USER MANUAL
MODE D'EMPLOI
MANUAL DEL USUARIO
EUROLITE Black Floodlight
ES 105
©
Für weiteren Gebrauch aufbewahren!
Copyright
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d'emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES 105 and is the answer not in the manual?

Questions and answers

Summary of Contents for EuroLite ES 105

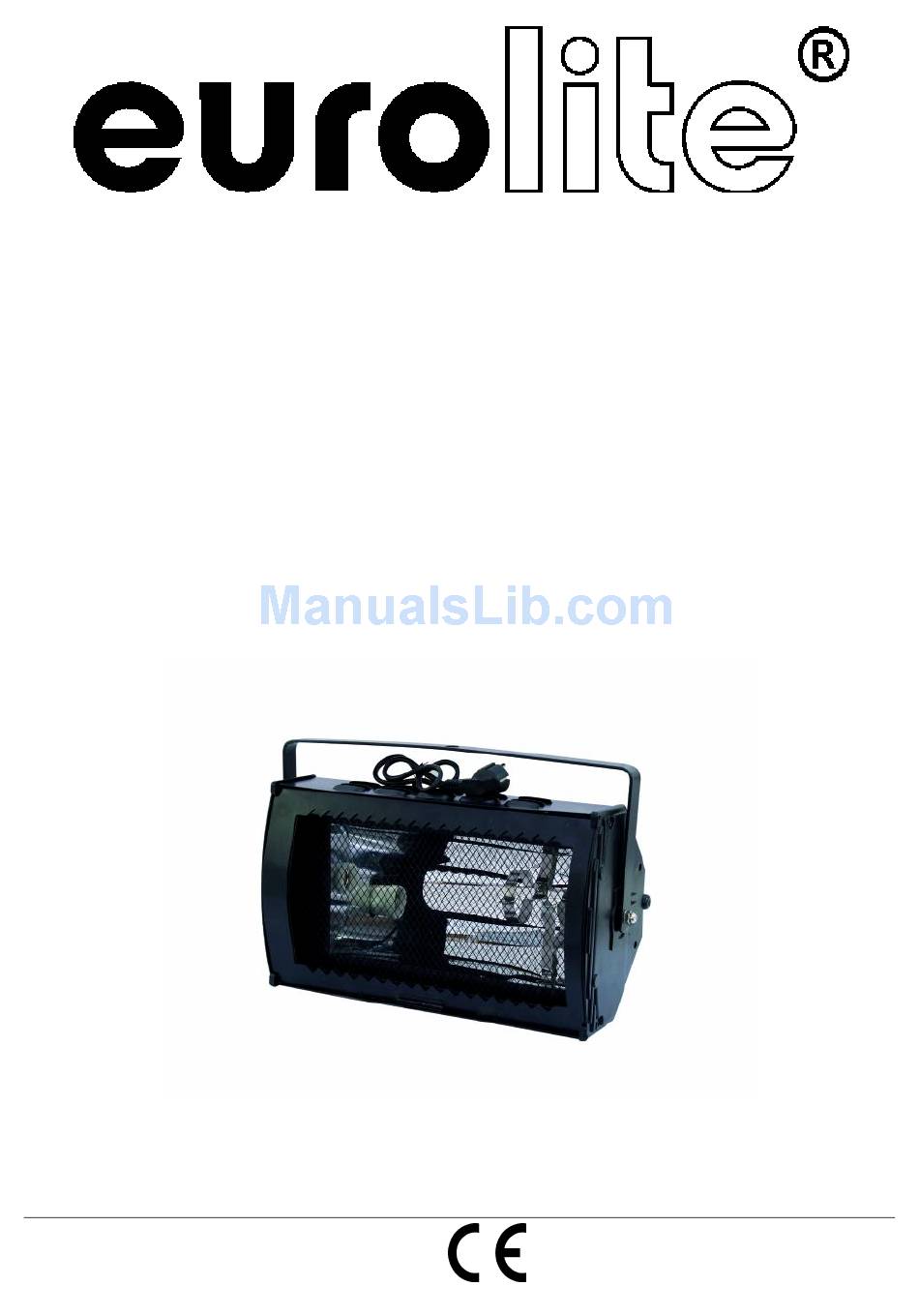

  • Page 1 BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO EUROLITE Black Floodlight ES 105 © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos.
  • Page 2: Table Of Contents

    MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis Table of contents Sommaire Contenido EINFÜHRUNG ..............................4 SICHERHEITSHINWEISE..........................4 BESTIMMUNGSGEMÄßE VERWENDUNG..................... 5 INSTALLATION ..............................7 Lampeninstallation/Lampenwechsel ......................7 Überkopfmontage............................8 Anschluss ans Netz............................9 BEDIENUNG ..............................9 REINIGUNG UND WARTUNG........................10 TECHNISCHE DATEN ............................ 10 INTRODUCTION ............................. 11 SAFETY INSTRUCTIONS..........................
  • Page 3 You can find the latest update of this user manual in the Internet under: Vous pouvez trouvez la dernière version de ce mode d'emploi dans l'Internet sous: Vd. puede encontrar la versión más reciente de este manual en el Internet bajo: www.eurolite.de 3/31 00026808.DOC, Version 1.2...
  • Page 4: Einführung

    - sich die letzte Version der Anleitung im Internet herunter laden EINFÜHRUNG Wir freuen uns, dass Sie sich für einen EUROLITE Black Floodlight ES 105 entschieden haben. Sie nachfolgende Hinweise beachten, sind wir sicher, dass Sie lange Zeit Freude an Ihrem Kauf haben werden.
  • Page 5: Bestimmungsgemäße Verwendung

    Unbedingt lesen: Bei Schäden, die durch Nichtbeachtung der Anleitung verursacht werden, erlischt der Garantiean- spruch. Für daraus resultierende Folgeschäden übernimmt der Hersteller keine Haftung. Das Gerät darf nicht in Betrieb genommen werden, nachdem es von einem kalten in einen warmen Raum gebracht wurde.
  • Page 6 Das Gerät darf nicht in einer Umgebung eingesetzt oder gelagert werden, in der mit Spritzwasser, Regen, Feuchtigkeit oder Nebel zu rechnen ist. Feuchtigkeit oder sehr hohe Luftfeuchtigkeit kann die Isolation reduzieren und zu tödlichen Stromschlägen führen. Beim Einsatz von Nebelgeräten ist zu beachten, dass das Gerät nie direkt dem Nebelstrahl ausgesetzt ist und mindestens 0,5 m von einem Nebelgerät entfernt betrieben wird.
  • Page 7: Installation

    INSTALLATION Lampeninstallation/Lampenwechsel LEBENSGEFAHR! Lampe nur bei ausgeschaltetem Gerät einsetzen! Netzstecker ziehen! ACHTUNG! Die Lampe muss gewechselt werden, wenn diese beschädigt ist oder sich durch Wärme verformt hat! Vor dem Wechseln der Lampe, das Gerät allpolig von der Netzspannung trennen (Netzstecker ziehen) und die Lampe unbedingt erst abkühlen lassen (ca.
  • Page 8: Überkopfmontage

    Überkopfmontage LEBENSGEFAHR! Bei der Installation sind insbesondere die Bestimmungen der BGV C1 und EN 60598-2-17 zu beachten! Die Installation darf nur vom autorisierten Fachhandel ausgeführt werden! Die Aufhängevorrichtungen des Gerätes muss so gebaut und bemessen sein, dass sie 1 Stunde lang ohne dauernde schädliche Deformierung das 10-fache der Nutzlast aushalten kann.
  • Page 9: Anschluss Ans Netz

    Es dürfen nur Sicherungsseile gemäß DIN 56927, Schnellverbindungsglieder gemäß DIN 56927, Schäkel gemäß DIN EN 1677-1 und BGV C1 Kettbiner eingesetzt werden. Die Fangseile, Schnellverbindungsglieder, Schäkel und Kettbiner müssen auf Grundlage der aktuellsten Arbeitsschutzbestimmungen (z. B. BGV C1, BGI 810-3) ausreichend dimensioniert sein und korrekt angewendet werden. Bitte beachten Sie: Bei Überkopfmontage in öffentlichen bzw.
  • Page 10: Reinigung Und Wartung

    REINIGUNG UND WARTUNG Der Unternehmer hat dafür zu sorgen, dass sicherheitstechnische und maschinentechnische Einrichtungen mindestens alle vier Jahre durch einen Sachverständigen im Umfang der Abnahmeprüfung geprüft werden. Der Unternehmer hat dafür zu sorgen, dass sicherheitstechnische und maschinentechnische Einrichtungen mindestens einmal jährlich durch einen Sachkundigen geprüft werden. Dabei muss unter anderem auf folgende Punkte besonders geachtet werden: 1) Alle Schrauben, mit denen das Gerät oder Geräteteile montiert sind, müssen fest sitzen und dürfen nicht korrodiert sein.
  • Page 11: Introduction

    - download the latest version of the user manual from the Internet INTRODUCTION Thank you for having chosen a EUROLITE Black Floodlight ES 105. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.
  • Page 12: Operating Determinations

    This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Make sure that the available voltage is not higher than stated on the rear panel.
  • Page 13: Installation

    - - -m The symbol determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meters. This device is only allowed for an installation via the mounting bracket. In order to safeguard sufficient ventilation, leave 50 cm of free space around the device.
  • Page 14: Overhead Rigging

    For the installation, you need one UV energy saving lamp 85W E-27 4U or UV energy saving 105W E-27 4U. During the operation, the lamp reaches temperatures of up to 275° C. UV/ES illuminants are hazardous waste which needs to be disposed of appropriately. Please dispose of the unusable UV/ES illuminants in accordance with the current legal regulations.
  • Page 15: Connection With The Mains

    The device has to be installed out of the reach of people. If the device shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The device must never be fixed swinging freely in the room. Caution: Devices in hanging installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device! Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's...
  • Page 16: Operation

    If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation. The device must only be connected with an electric installation carried out in compliance with the IEC- standards.
  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS Power supply: 230 V AC, 50 Hz ~ Power consumption: 105 W Dimensions (LxWxH): 450 x 260 x 290 mm Weight: 4.6 kg Maximum ambient temperature T 45° C Maximum housing temperature T (steady state): 150° C Accessorys: OMNILUX UV ES lamp 85W E-27 4U No.
  • Page 18: Introduction

    - télécharger la version ultérieure du mode d'emploi d'Internet INTRODUCTION Nous vous remercions d'avoir choisi un EUROLITE Black Floodlight ES 105. Si vous respectez les instructions de service suivantes, vous allez profiter longtemps de votre achat. Sortez le Black Floodlight ES 105 de son emballage.
  • Page 19: Emploi Selon Les Prescriptions

    La construction de l'appareil est conforme aux normes de sécurité de catégorie I. La fiche au secteur doit seulement être branchée avec une prise de courant adaptée. Ne laissez pas les câbles d'alimentation en contact avec d'autres câbles. Soyez prudent; lorsque vous manipulez les câbles et les connexions, vous êtes soumis à...
  • Page 20: Installation

    Lorsqu'une température ambiante est de +45° C l'humidité relative atmosphérique ne doit pas dépasser 50 Cet appareil ne peut être mis en service qu'à une altitude entre -20 et 2000 m au-dessus du niveau de la mer. N'utilisez pas l'appareil pendant un orage, puisqu'un survoltage pourrait détruire l'appareil. Lors d'un orage, séparez l'appareil du secteur avec tous les pôles (tirer la fiche secteur).
  • Page 21: Montage Par Dessus De La Tête

    Ne pas utiliser des ampoules d’une puissance supérieure, la température dègagée par celles-ci étant trop haute pour cet appareil. En cas de non respect de cette consigne, la garantie n’est plus valable. Attention: Rétirez le tain du réflecteur avant de mettre l'appareil sous tension! Pour l'installation, vous avez besoin d‘une lampe économique UV 85W E-27 4U ou lampe économique UV 105W E-27 4U.
  • Page 22 L’entrepreneur doit s'assurer que les installations concernant la sécurité technique et la sécurité des machines soient examinées au moins une fois par an par une personne compétente. Procédure: Dans le cas idéal, l'appareil doit être installé en dehors du secteur de présence de personnes. IMPORTANT! LE MONTAGE PAR DESSUS DE LA TETE EXIGE UN HAUT NIVEAU D‘EXPERIENCE.
  • Page 23: Alimentation

    Alimentation Branchez l’appareil avec la fiche au secteur. L'occupation des câbles de connection est: Câble International Brun Phase Bleu Neutre Jaune/Vert Terre La terre doit être connecteé! Quand vous connectez l'appareil directement au secteur local, vous deviez installer un interrupteur du secteur avec une aperture de 3 mm au minimum sur chaque pôle.
  • Page 24: Caractéristiques Techniques

    Si des pièces de rechange sont nécéssaires, toujours utiliser des pièces d'origine. Quand le câble secteur de cet appareil est endommagé, il doit être remplacé par un installateur agrée pour éviter des dangers. Pour tout renseignement complémentaire, votre revendeur se tient à votre entière disposition. CARACTÉRISTIQUES TECHNIQUES Alimentation: 230 V AC, 50 Hz ~...
  • Page 25: Introducción

    -descargar la última versión del manual del Internet INTRODUCCIÓN Gracias por haber elegido un EUROLITE Black Floodlight ES 105. Si Vd. respecte las instrucciones sucesivas, aseguremos que vaya a gozarse mucho de su compra. Desembale su Black Floodlight ES 105.
  • Page 26: Instrucciones De Manejo

    Este aparato pertenece a la clase de protección I. El aparato sólo debe ser conectado con un enchufe de la clase I. ¡No deje que el cable de alimentación entre en contacto con otros cables! ¡Maneje los cables de corriente alterna y las conexiones de corriente alterna con mucha precaución! Asegúrese de que la tensión de alimentación no es mayor que la indicada en el panel trasero.
  • Page 27: Instalación

    Nunca operar el aparato en tormentas. Sobrevoltaje puede detruir el aparato. Siempre desconectar el aparato durante tormentas. - - -m El símbolo indica la distancia por mínimo a objetos iluminados. La distancia entre la salida de luz y el área iluminado no debe ser menos de 0,5 metros. Este aparato ha sido diseñado sólo para la instalación mediante la lira de montaje.
  • Page 28: Montaje Por Encima De La Cabeza

    Para la instalación, Vd. necesita una lámpara UV economic 85W E-27 4U o lámpara economica UV 105W E-27 4U. Al operar la lámpara de este tipo llegan a temperaturas de hasta 275° C. Elementos de iluminación UV/ES tienen que ser eliminados como residuo peligroso. Los elementos de iluminación UV/ES inutil debe ser eliminada según las instrucciones actuales de la Procedimiento: Paso 1: Quite el portafiltros de colores.
  • Page 29: Alimentación

    Procedimiento: El proyector debe ser instalado fuera de áreas dónde personas pueden entretenerse. IMPORTANTE! UNA MONTAJE POR ENCIMA DE LA CABEZA REQUIERA MUCHA EXPERIENCIA. Ésto incluye (pero no es limitadoa) calculaciones de la capacidad de carga, material de instalación usado y inspecciones regulares del material usado y del proyector.
  • Page 30: Operación

    Cable Internacional Marrón Fase Azul Neutro Amarillo/Verde Tierra La tierra debe ser conectada. Cuando Vd. quiere instalar el aparato directamente a la red local, Vd. debe instalar un interruptor de la red con una apertura de 3 mm por mínimo en cada polo. Sólo conectar el aparato a una instalación eléctrica conforme a las regulaciones IEC.
  • Page 31: Especificaciones Técnicas

    ESPECIFICACIONES TÉCNICAS Alimentación: 230 V AC, 50 Hz ~ Consumo: 105 W Dimensiones (La.xAn.xAl.): 450 x 260 x 290 mm Peso: 4,6 kg Lámpara: Referencia: OMNILUX lámpara ahorro UV 85W E-27 4U 89507705 OMNILUX lámpara ahorro UV 105W E-27 4U 89507805 Máxima temperatura ambiente T 45°...
