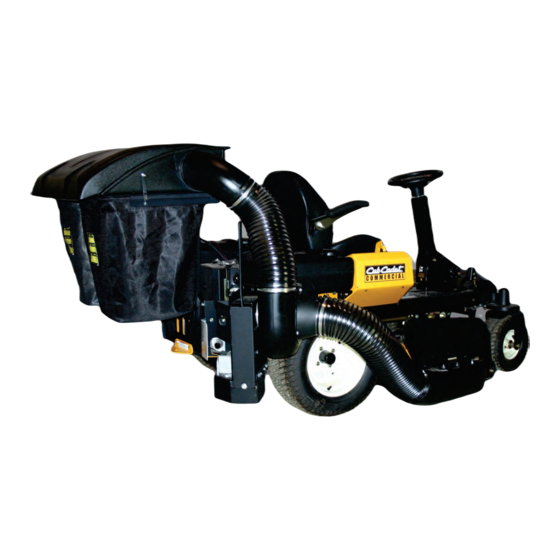

Cub Cadet 59A30034150 Operator's Manual

Pto grass collection system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

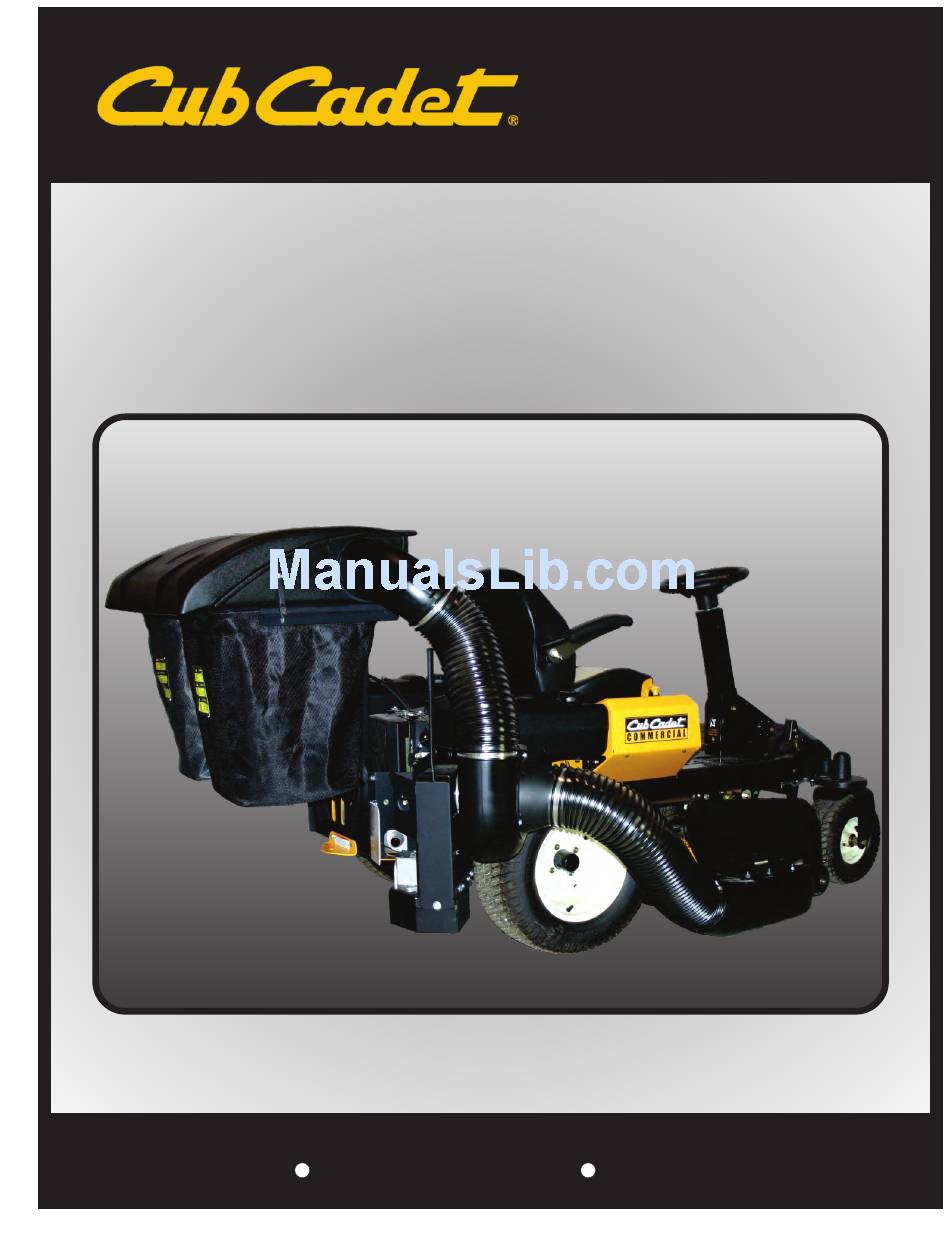

PTO GRASS
COLLECTION
SYSTEM
DESIGNED FOR:
CUB CADET
2010-2013 MODEL YEAR
Z FORCE S - COMMERCIAL
48", 60" - COMMERCIAL SERIES
MODEL# 59A30034150
OPERATOR'S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0424
(21020901)
REV: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 59A30034150 and is the answer not in the manual?

Questions and answers

Related Manuals for Cub Cadet 59A30034150

Summary of Contents for Cub Cadet 59A30034150

  • Page 1 PTO GRASS COLLECTION SYSTEM DESIGNED FOR: CUB CADET 2010-2013 MODEL YEAR Z FORCE S - COMMERCIAL 48”, 60” - COMMERCIAL SERIES MODEL# 59A30034150 OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0424 (21020901) REV: 2...

  • Page 2: Table Of Contents

    RESIDENTIAL BAGGING SYSTEM TABLE OF CONTENTS SECTION - - - SECTION PAGE PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2-13 Boot To Mower Deck Installation - - - - - - - - - -9-10 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 2-14 Hose Clamp Installation - - - - - - - - - - - - - - - - 11...

  • Page 3: Safety Alert Symbols

    SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating.

  • Page 4: Warranty

    PECO LIMITED WARRANTY FOR NEW PRODUCTS A. WHAT IS UNDER WARRANTY? PECO extends the following warranties to the original purchaser of each new PECO consumer product subject to the following limitations. 1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the defect appears within 12 months from the date of delivery of the product to the original purchaser.

  • Page 5: Introduction And Description

    Remove the D-drive spacer using an arbor press or Section I equivalent. On removal, adjacent bearing OUTER race must be supported or bearing damage may occur. Refer INTRODUCTION & to Figure 2-1b. DESCRIPTION PRESS Figure 2-1b 1-1 Introduction Your grass collection system has been designed to give you a low maintenance, simple, and effective way to collect the grass clippings from your mower.

  • Page 6: Pto Mount Assembly Installation

    Remove the rear fender, tow hitch plate, muffler guard 2-4 Belt Installation/Removal and and hardware as shown in Figure 2-1c. Adjustment Rear Fender Installation/Removal: With the PTO mount pin Figure 2-1c P#(B0274) removed, loosen the (4) 5/16”-18 x 3/4” HHCS P#(K1153) that secure the gear box to the PTO assembly.

  • Page 7: Safety Interlock Harness Installation

    Figure 2-4c Figure 2-5c PTO Mount Pin Harness Safety Interlock Adjustment Path Harness Bolt Figure 2-5d Replace Disconnect Mower Belt Guard Safety Interlock Switch 2-5 Safety Interlock Harness Installation Remove the panel shown in Figure 2-5a. There are (4) screws that secure the panel to the mower. Remove Panel Figure 2-5a Figure 2-5e...

  • Page 8: Lower Frame Assembly Installation

    2-6 Lower Frame Assembly 2-9 Top Assembly To Upper Frame Installation Assembly Installation Secure the lower frame assembly P#(A1119) to the rear Position the top assembly P#(A1148) above the upper frame of the mower using (4) 5/16”-18 x 1” HHCS frame assembly as shown in Figure 2-9.

  • Page 9: Blower Cone Installation/Removal

    Locate the deck mount plate P#(A1120). Lift the 2-12 Blower Cone Installation deflector and position the deck plate as shown in Figure 2-13b. Fasten the Blower Cone P#(V0016) to the blower Figure 2-13b housing located on the PTO assembly P#(A1132). Use (3) 1/4”-20 x 1/2”HHCS P#(K1105), (3) 1/4”...
  • Page 10 Locate the aluminum boot P#(E0021) and the boot plate assembly P#(A1121). Secure the boot plate assembly to There Should Be No the boot as shown in Figure 2-13k, using (2) 3/8”-16 x 1” Gaps On These Edges carriage bolts P#(K1182) and (2) 3/8”-16 nylon flange locknuts P#(K2038).

  • Page 11: Hose Clamp Installation

    Step 3: Using a flat file or disc grinder, remove 2-14 Hose Clamp Preparation sharp edges from clamp cut in Step 2. Refer to Figure 2-14d. CAUTION Figure 2-14d Note: To prevent injury, wear safety gear when cutting or grinding hose clamps. Remove Sharp Edge From Hose Clamp The hose clamps P#(J1000), provided with...

  • Page 12: Length Of Hose Adjustment

    2-15 Length Of Hose Adjustment 2-17 Lower Hose To Blower Cone The hoses in steps 2-16 and 2-17 must be cut to fit your Installation machine. Follow steps 2-16 and 2-17. do not cut the Slide a pre-assembled hose clamp P#(J1000) over both hoses until you have tried to fit them on your machine.

  • Page 13: Exhaust Diverter And Heat Shield Installation

    2-19 Exhaust Diverter & Heat Shield 2-20 Impeller Blade Installation Removal/Replacement An exhaust diverter and heat shield will need to be used on all engines that exhaust to the side of the mower. WARNING Insert (1) exhaust diverter P#(B0693) onto the muffler and secure with (1) exhaust clamp kit P#(X1025).

  • Page 14: Installation/Removal Of Collection Bags

    2-21 Installation/Removal Of Figure 2-21c Plastic Top Collection Bags IMPORTANT! To prevent bag wear, install (2) red plastic end caps P#(J0274), as shown in Figure 2-21a, on each bag ring before installing bags. Figure 2-21a Bag Ring Red Plastic End Caps Fasten Draw Completed Bag -Latch Here...

  • Page 15: Operating Instructions

    SECTION III 3-3 Disengagement Of The PTO OPERATING INSTRUCTIONS Assembly A. To disengage the PTO assembly, slide the 3-1 General Safety engagement handle out of the retaining slot and push the engagement handle away from the operator’s seat. Only qualified people familiar with this operator’s manual and the mower’s operator’s manual should operate this WARNING: The PTO assembly blades will continue to machine.

  • Page 16: Lubrication

    3. Make sure all shields are in place and in good 4-2 Lubrication condition. Repair or replace any missing or damaged shields. NOTE: Use only white lithium based grease for 4. Perform lubrication per paragraph 4-2. lubrication of the shaft on the blower assembly. 5.
  • Page 18 K0114 BLACK PLASTIC RIVET K1265 BLACK PANEL RETAINER C0067 DUST GUARD BRACE V1117 DUST GUARD R0006 CUB CADET LOGO K0125 5/16"-18 x 2-1/2" ALL THREAD HHCS K2516 5/16"-15 NYLON FLANGE LOCKNUT B0227 BAG RING j0274 BAG RING END CAP V0019...
  • Page 19 A1132 PTO ASSEMBLY EXPLODED PARTS VIEW...
  • Page 20 A1132 PTO ASSEMBLY EXPLODED PARTS VIEW DESCRIPTION Item # Doc # Title M0266 'A' PULLEY FOR DECK DRIVE PTO K1446 1.187 OD x .380 ID x .187 WASHER k1190 3/8"-16 x 3/4" HHCS V0015 BLOWER HSG. A0431 GEAR BOX A0498 PULLEY ASSY.

  • Page 21: Safety Interlock Harness Wiring Diagram

    P0208 Safety Interlock Wiring Harness...

  • Page 22: Safety Decals

    To promote safe operation, PECO Inc. supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R0006 Cub Cadet Logo DANGER...
  • Page 24 Cub Cadet LLC P.O. Box 361131 Cleveland, Ohio 44136-0019 Phone: 1-877-282-8684 MTD Products Limited Kitchener, ON N2G 4J1 1-800-668-1238...
