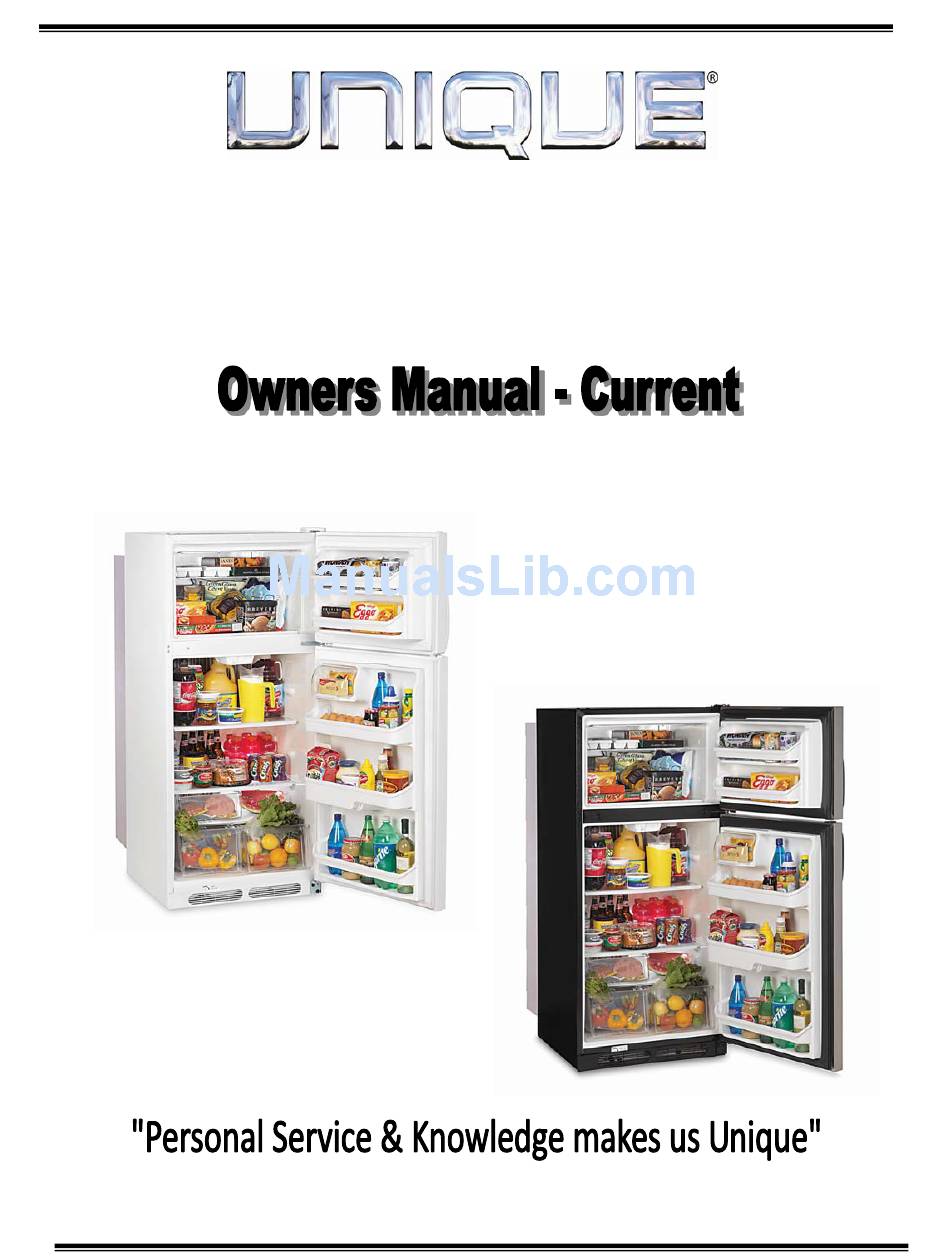

- Page 1 2245 Wyecroft Road #5, Oakville, Ontario Canada L6L 5L7 Ph: 905-827-6157 Toll Free: 1-877-427-2266 Fax: 905-827-2027 www.UniqueOffGrid.com UGP 18 May 2013...
- Page 2 UNIQUE UGP-18 Propane Refrigerator Installation and Owners Manual WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
- Page 3 NOTE: The Combination Carbon Monoxide Alarm & Safety Shut-Off Instructions (CM Model), battery, Owners/Installation Manual are stored inside the refrigerator. For Unique Gas Products Support, Call Toll Free 1-877-427-2266 Regular maintenance of the fridge is critical to prevent unsafe levels of Carbon Monoxide. Before lighting the refrigerator at any time, clean the flue tube as per the Owner’s Manual &...
- Page 4 M A N U F A C T U R E D A N D C E R T I F I E D B Y Unique Gas Products Ltd “ & ” “ & ” “ & ” 2245 Wyecroft Road #5...
-
Page 5: Table Of Contents
T able of Contents Chapters Welcome Safety and Warnings Appliance Installation General Operating Instructions How To Use The Refrigerator Maintenance & Service Troubleshooting & Suggested Spares Carbon Monoxide Instructions (CM Model) Door Reversal and Removal Instructions Temperature Controls & Food Storage and Cleaning Parts &... -
Page 6: Chapters
We know you will enjoy your new refrigerator and Thank You for choosing one of our Unique Gas Products. We hope you will consider us for future purchases. PLEASE READ AND SAVE THESE INSTRUCTIONS This manual provides specific operation instructions for your model. Use your refrigerator only as instructed in this manual. -
Page 7: Safety And Warnings
CO alarming device. This is beyond and safety devices/construction inherent to the Unique appliance. Do not store or use gasoline or other flammable vapors and liquids in the ... - Page 8 Chapter Installation For best performance at high ambient temperatures, there must be free air circulation over the cooling unit at the rear of the refrigerator. Ensure that there is a free air space above the refrigerator and that the flue (chimney) on top of the cabinet is not covered in any way.
- Page 9 Clearances Minimum clearances to combustible materials are: Top – 10” Sides – 2” Rear – 1” with left hand side rear sheild mounted as shown in Figures. 1, 2 & 3. Note: DO NOT install the appliance directly on carpeting. Carpeting must be removed or protected by a metal or wood panel beneath the appliance, which extends at least the full width and depth of the appliance.
- Page 10 Gas Connection Hook-up to the gas supply line: 3/8” SAE (UNF 5/8” - 18) male flare connection. A backup wrench must be used when tightening gas supply fitting. All completed connections should be checked for leaks with a non-corrosive leak detector and/or soap and water for a bubble check..
-
Page 11: General Operating Instructions
Chapter General Operating Instructions Importance of Leveling a Refrigerator The refrigerator must be adjusted to a vertical position in both directions. In an absorption refrigeration system, ammonia is liquefied in the finned condenser coil at the top rear of the refrigerator. The liquid ammonia then flows into the Evaporator (inside the freezer section) and is exposed to circulating flow of hydrogen gas, which causes the ammonia to evaporate, creating a cold condition in the freezer. - Page 12 escape from the gas line and flow up to burner. Length of time will vary depending on distance of the fridge to propane tank. Continue pushing the igniter button while holding in the gas button until the needle in the flame indicator D moves into the green area (to the right).
-
Page 13: How To Use The Refrigerator
Thermostat A thermostat controls the refrigerator cooling temperature; it can be adjusted by turning knob B to different settings to maintain the desired refrigerator temperature. Knob E also incorporates a safety device, which automatically shuts off the supply of gas if the flame goes out. The piezo electric igniter discharges sparks onto the burner when the button is pushed. -
Page 14: Cleaning
Defrosting Frost will gradually accumulate inside the refrigerator and freezer surfaces. It must not be allowed to grow too thick as it acts as an insulator and adversely affects the refrigerator performance. Check the formation of frost every week and when it exceeds 3/8”... -
Page 15: Interior Light
Never use strong chemicals or abrasives to clean these parts as the protective surfaces will be damaged. It is important to always keep the refrigerator clean. Dishwasher detergent is recomended Interior Light The interior light is located inside the fridge compartment at the top. You can replace it by unscrewing counter clockwise. -
Page 16: Periodic Maintenance
Chapter Maintiance & Service The user should be aware of service that must be done on a regular schedule to keep the refrigerator operating properly. Installation must be by a licensed gas fitter in accordance with local codes or in the absence of local national Fuel Gas Code, ANSI Z233.1 and in Canada B149.2 Propane Storage and Handling Code (latest edition). - Page 17 to all LP connections. The appearance of bubbles indicates a leak and should be repaired immediately by a qualified serviceman. – D ARNING O NOT USE FLAME TO CHECK FOR GAS LEAKS Check burner flame for proper appearance. The flame should be light blue with no yellow at the tip.
- Page 18 Clean burner tube with compressed air, check for fluff or spider webs. Before removing burner orifice, clean burner area of any soot, scale or dirt . Remove the orifice and soak it in alcohol (isopropyl alcohol or thinners) and blow it out with compressed air. Re-install and tighten burner orifice.
-
Page 19: Maintenance & Service
Chapter TROUBLESHOOTING INSTRUCTIONS & SUGGESTED SPARE PARTS TO KEEP ON HAND REFRIGERATOR DOES NOT COOL, CHECK LIKELY CAUSES: Burner orifice clogged. Clean. See section Maintenance & Service, C HAPTER Item #2. Periodic Maintenance, Items 1-9. Check to ensure refrigerator is level – (left to right and front to back). Restriction on air flow across cooling unit. -
Page 20: Spare Parts
Spare Parts The following is a list of commonly used parts which are available: Burner orifice Burner Electrode Thermocouple Safety valve & Thermostat Piezo Igniter (push button) Baffle Contact your dealer or an authorized service center for parts and repairs as needed. Quote Model &... - Page 21 Congratulations as you have taken steps to help insure the health and life safety of you and your family. We are proud to offer you our unique, patented CO Sensor technology that detects CO in a manner similar to the human body's response.
- Page 22 WHAT YOU SHOULD KNOW ABOUT CO Carbon monoxide (CO) is an insidious poison. It is a colorless, odorless and tasteless gas. It is a cumulative poison. The following symptoms are related to CARBON MONOXIDE POISONING and should be discussed with ALL members of the household: MILD EXPOSURE Slight headache, nausea, vomiting, fatigue (often described as "flu–like"...
- Page 23 WHAT YOU SHOULD DO IF THE ALARM SOUNDS WARNING Activation of this device indicates the presence of carbon monoxide (CO) which can KILL YOU. If alarm sounds: For Users in the United States, follow the protocol in steps 1 through 4 below: Operate reset/silence button;...
- Page 24 and/or instructions to return the unit: IMPORTANT CONSIDERATIONS: The COSTAR 9RV-SSO has been designed and is warranted to operate for six years. Never disconnect the battery to silence an alarm. The alarm will automatically sense when the level of CO in the air falls below the danger level.
- Page 25 – Know where to go to call the Fire Department or professional assistance from outside your residence. – Know where to go call the emergency service provider and or a qualified service technician. IMPORTANT: WHAT YOUR CO ALARM CAN AND CANNOT This unit is designed to detect carbon monoxide (CO) and shutoff an appliance for safety only.
- Page 26 WALL LOCATION: Mount the alarm at least 3 feet (usually 5 – 6 feet) from the floor. Figure 1: Recommended CO alarm wall mounting location is 5 to 6 feet from floor LOCATIONS TO AVOID: Nuisance alarms are caused by placing units where they will not operate properly.
- Page 27 furnaces, refrigerators, or water heaters. 5 Obstructions in or unconventional vent pipe designs which can amplify the above situations. 5.4.2 Extended operation of un-vented fuel burning devices (range, oven, fireplace, etc.) 5.4.3 Temperature inversions, which can trap, exhaust gasses near the ground.
- Page 28 Step B: Alarm Activation Step C: Removal and Installation Figure 2: Installation Instructions To insure aesthetic alignment of the alarm with the hallway or wall, the UP arrow on the mounting plate must be vertical when wall mounting: (See Step A in Figure 2 ) As described in Figure 2, attach the mounting plate on the wall.
- Page 29 emergency service provider and a qualified technician in the space provided on the labels. Place one label next to the alarm, and the other label near a source of fresh air where you plan to gather after the alarm indicates the presence of carbon monoxide. ALARM SIGNALS 7.1.
- Page 30 WARNING: Do not use any household cleaning agents, paints, varnishes or any other chemical on your COSTAR 9RV-SSO alarm. 9.0 BATTERY REPLACEMENT: NOTE: IF TAMPER RESISTANT PIN HAS BEEN USED, REFER STEP UNDER INSTALLATION INSTRUCTIONS FOR REMOVAL INSTRUCTIONS. (See Figure 3) To replace the battery remove the alarm from the mounting plate by rotating the alarm in the direction of the "OFF"...
- Page 31 WARNING: THIS TEST PROCEDURE WILL TURN OFF THE APPLIANCE ONCE ALARM RESUMES NORMAL OPERATION, RE-LIGHT APPLIANCE FOLLOWING LIGHTING INSTRUCTIONS. WARNING: RESIDENTIAL USE: TEST ALARM OPERATION AT LEAST ONCE PER WEEK DURING USE OR IF APPLIANCE WAS TURNED OFF FOR A PERIOD OF TIME. 11.0 SERVICE AND WARRANTY If after reviewing this manual you feel that your CO Alarm is defective in any way, do not tamper with the unit.
- Page 32 Chapter Door Removal & Reversal Instructions NOTE: The direction in which your refrigerator doors open (door swing) can be reversed, from left to right or right to left, by moving the door hinges from one side to the other. A qualified person should perform reversing the door swing,. Some earlier Stainless Steel model are not reversible, they had to be ordered as Left or Right hinged. ...
- Page 33 8. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to other hole in hinge and tighten with adjustable wrench. 9. Reverse door handles (see instructions on next page). 10. Move freezer and refrigerator door stops to opposite side. Before starting screws, use an awl to puncture the foam.
- Page 34 To Remove Freezer Handle (Handles may be easier to reverse while doors are off.) 1. Remove two screws attaching handle to bottom of freezer door. 2. Remove cap from side of handle to gain access to screw 3. Remove screw, attaching side of handle to door To Attach Freezer Handle 1.
-
Page 35: Temperature Controls
Chapter Temperature Controls Note: Maximum setting is override; therefore the thermostat function is not operational at this setting. This setting is usually only required during very hot and humid days. COOL DOWN PERIOD To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 hours before loading it with food. -
Page 36: Looking Inside
Looking Inside SHELF ADJUSTMENT Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Crispers & Deli Drawers The crispers, located under the bottom refrigerator shelf, are designed for storing fruits, vegetables, and other fresh produce. Wash items in clear water and remove excess water before placing them in the crispers. - Page 37 Food Storage Ideas RESH TORAGE The fresh food compartment should be kept between 38° F and 40° F (3.3° C and 4.4° C) with an optimum temperature of 38° F (3.3°C). Avoid overcrowding the refrigerator shelves. This reduces the circulation of ...
-
Page 38: Care And Cleaning
OADING THE REEZER Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods. Leave a space between the packages, so cold air can circulate freely, allowing food ... - Page 39 Chapter Parts Diagram and List...
- Page 42 Burner Train Assembly...
- Page 43 UNIQUE UGP-18 Fridge (18 cu/ft) Item# ESCRIPTION UGP18-01R REEZER ASKET – B REEZER ASKET LACK UGP18-01R-1 OR STAINLESS TEEL FRIDGE UGP18-60R HITE UGP18-60R-1 LACK UGP18-02 INGE HITE UGP18-02-1 – B INGE LACK UGP18-03R REEZER – S REEZER TAINLESS TEEL MUST REQUEST...
- Page 44 Item# ESCRIPTION UGP18-12R RIDGE HITE – S RIDGE TAINLESS TEEL MUST REQUEST UGP18-12R-1 LEFT OR RIGHT HANDED OPENING UGP18-13R RIDGE ASKET HITE – B RIDGE OOR GASKET LACK UGP18-13R-1 FOR STAINLESS STEEL DOOR ONLY UGP18-14R – L RIDGE OWER UGP18-15R –...
- Page 45 Item# ESCRIPTION UGP18-37R – HITE UPPER CABNIT – LACK UPPER CABNIT UGP18-35R-1 FOR STAINLESS STEEL UNIT ONLY – B LUGS HITE LACK UGP18-33R FOR STAINLESS STEEL UNIT ONLY LUGS LACK UGP18-33R-1 FOR STAINLESS STEEL UNIT ONLY UGP18-39 – N ASHER YLON UGP18-38 PACER...
- Page 46 Item# ESCRIPTION UGP18-52 URNER TUBE UGP18-53 LECTRODE WITH WIRE UGP18-54 RIFICE UGP1518-5 NLET GAS UGP18-56 EIZO GNITOR UGP18-57 LAME NDICATOR UGP1518-6 NLET FITTING UGP1518-7 HERMOSTAT CONTROL UGP18-66R OLLER ADJUSTABLE FRONT UGP18-67R ROLLER PIN UGP18-68R ROLLER UGPSPBLOCK INGLE RONG INTERRUPTER LOCK UGP1518-8 –...
- Page 47 Sellers sole obligation under this Warranty. The cooling system (coil) is warranted for a total of five years and will be replaced at no charge by Unique Gas Products Ltd. and the Seller (labour and transportation charges will be the responsibility of the owner).
-
Page 48: Limited Warranty
Transfer or resale of this product will automatically terminate warranty coverage. UNIQUE GAS PRODUCTS LTD. warrants the enclosed carbon monoxide alarm to be free from defects in materials and workmanship under authorized use and service, as specified in the owner's manual, for a period of six (6) years from the date of manufacture.
