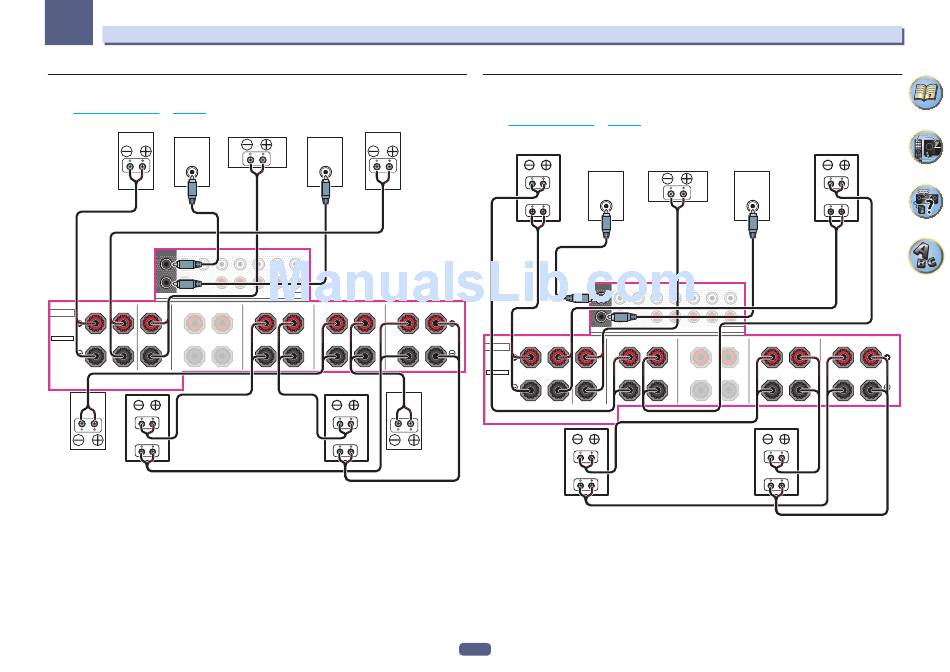

[J] 5.2 channel surround system & Speaker B Bi-amping connection
! Select '5.2ch + SP-B Bi-Amp' from the Speaker System menu.
See Speaker system setting on page 110 to do this.
Front right
Subwoofer 1
LINE LEVEL
INPUT
SUBWOOFER FRONT CENTER SURROUND SURR BACK T MIDDLE
1
2
FRONT CENTER TOP MIDDLE
R L R
SPEAKERS
SELECTABLE
High
Low
Bi-amp compatible
speaker
Surround right
Speaker B right
Front left
Center Subwoofer 2
LINE LEVEL
INPUT
EXTRA 1 EXTRA 2
(Single)
L
R
PRE OUT
EXTRA 1 SURROUND SURROUND BACK
L R L R L R
Bi-amp compatible
speaker
High
Speaker B left
Low
Surround left
[K] 5.2 channel surround system & Front and Surround Bi-amping connection
(High quality surround)
! Select '5.2ch F+Surr Bi-Amp' from the Speaker System menu.
See Speaker system setting on page 110
Bi-amp compatible speaker
Front right
Subwoofer 1
High
LINE LEVEL
INPUT
Low
SUBWOOFER FRONT
1
L
(Single)
2
FRONT CENTER
R L R
SPEAKERS
SELECTABLE
High
Low
Bi-amp compatible speaker
Surround right
33
Connecting your equipment
to do this.
Bi-amp compatible speaker
Center Subwoofer 2
LINE LEVEL
INPUT
CENTER SURROUND SURR BACK T MIDDLE EXTRA 1 EXTRA 2
(Single)
L
R
PRE OUT
TOP MIDDLE EXTRA 1 SURROUND
L R L R L
Bi-amp compatible speaker
Surround left
High
Low
Front left
High
Low
SURROUND BACK
R L
(Single)
