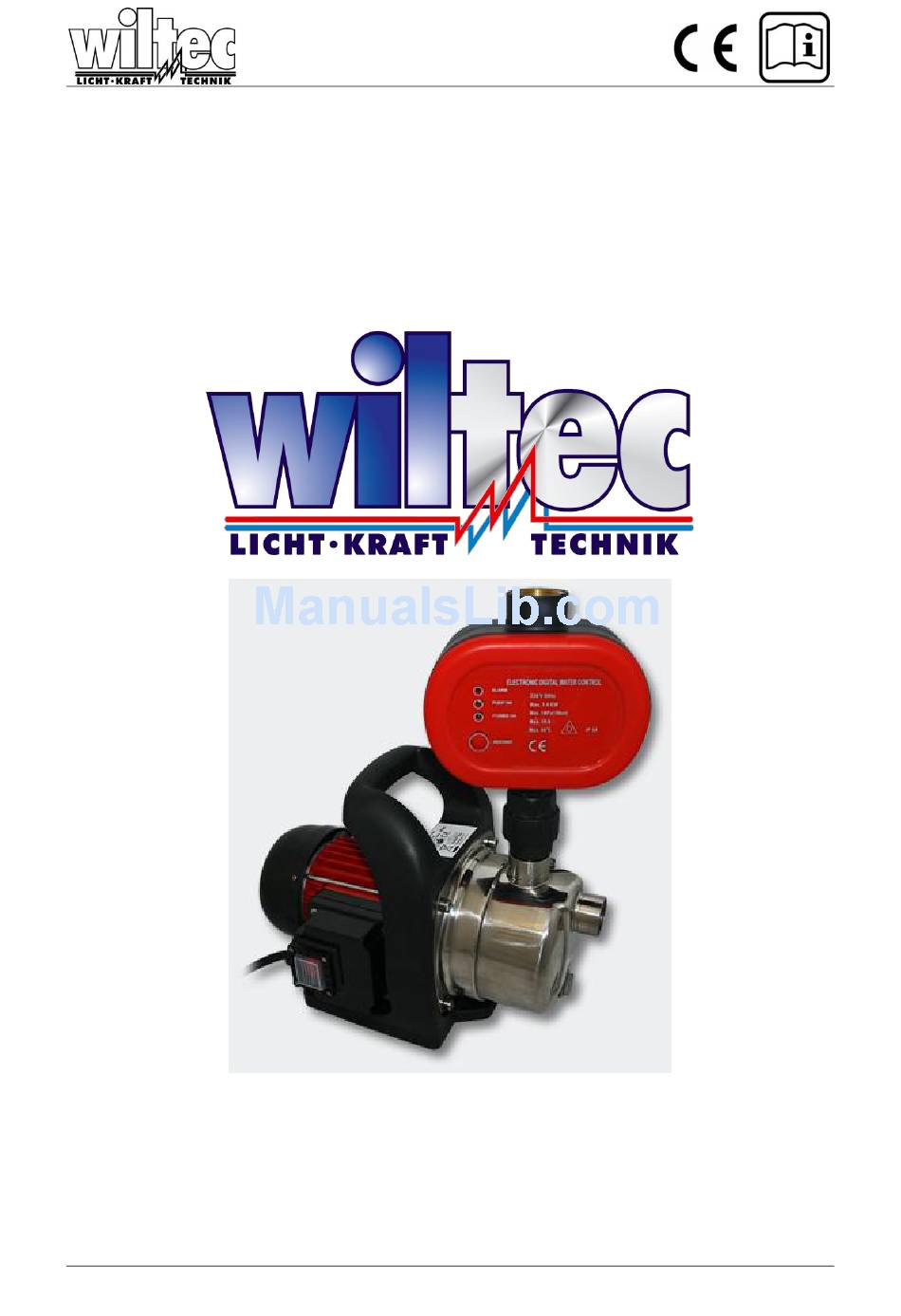

Operation Manual
Garden Pump
ARTICLE 50752
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH
Seite 1
http://www.wiltec.info
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WilTec 50752
Summary of Contents for WilTec 50752
- Page 1 Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly. Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us. © by WilTec Wildanger Technik GmbH Seite 1 http://www.wiltec.info...
- Page 2 Never lift, carry or fixate the device by using the power cable. Make sure that the electrical plug connection is placed in a flood-proof area and is protected from moisture © by WilTec Wildanger Technik GmbH Seite 2 http://www.wiltec.info...
- Page 3 Technical Data: Pump output 1200 W Voltage/Frequency 220V/50Hz Max. flow rate 3500 l/h Max. delivery head 46 m Max. suction head 1“ IG Connection © by WilTec Wildanger Technik GmbH Seite 3 http://www.wiltec.info...
- Page 4 If the pump is removed after its use, do not forget it has to be refilled with water (before you operate the pump again) before restarting and connecting it again. © by WilTec Wildanger Technik GmbH Seite 4 http://www.wiltec.info...
- Page 5 Drain screw +sealing Pump’s Dysfunctions No engine running Cause Remedy No supply voltage Check the power supply Pump wheel is blocked– Thermal controller has Dismantle the pump and shut down clean it © by WilTec Wildanger Technik GmbH Seite 5 http://www.wiltec.info...
- Page 6 220-250V / 50 Hz / Max. 10A Pressure range 1 - 3,5 bar / 51 psi Max. pressure 10 bar Max temperature 55°C Connections 25,4 mm external thread Protection class IP 65 © by WilTec Wildanger Technik GmbH Seite 6 http://www.wiltec.info...
- Page 7 The pump has not enough pressure Pump runs intermittently Circuit board is damaged There is a leak with more (The pump starts and The pump has not sufficient than 0,6 l/min loss stops constantly) pressure © by WilTec Wildanger Technik GmbH Seite 7 http://www.wiltec.info...
- Page 8 All Wiltec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.
-
Page 9: Ec Declaration Of Conformity
If the product is changed this declaration loses its validity. Eschweiler, 13. Oktober 2009 __________________________ Bernd Wildanger Manager This product can be employed in all EU-states without any restrictions (as well as in other states that follow the EU Directives). © by WilTec Wildanger Technik GmbH Seite 9 http://www.wiltec.info...
