Instructions for use Genesco Series
Program: InDesign CS6
Black
David S
20036897
NAME
ECN N°
Application Des Gaz - Siège social et usines :B.P.55 – 69563
St Genis Laval Cedex - Téléphone : 04 78 86 87 00
COMPOSITE- NO
SHEET 1 OF 1
APPROVED BY:
SHEET SIZE
REVISION
01
Bruno C
PART
NO.:
4010034518
Advertisement
Subscribe to Our Youtube Channel

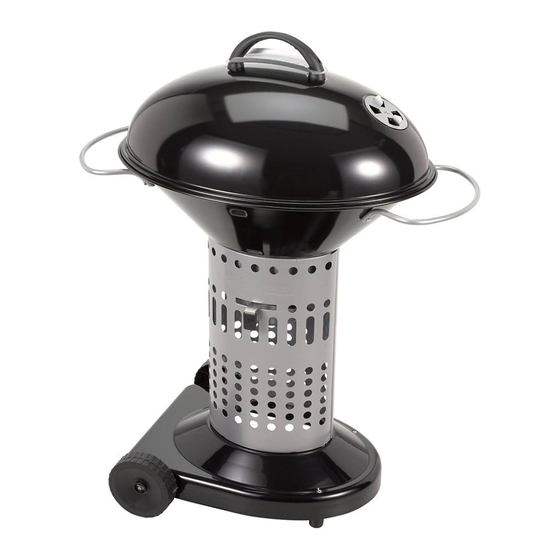

Related Manuals for Campingaz Bonesco SC
Summary of Contents for Campingaz Bonesco SC
- Page 1 Program: InDesign CS6 Black DO NOT PRINT THIS PAGE Printing Notes: Material: 65 GSM (International) bond paper, white Ink: Black Resolution: 150 DPI or above Printing method: Offset Printing Binding: Saddle Stitch Folded size: 148 x 210 mm (W x H) (A5) Propriété...
-
Page 2: Instructions For Use
INSTRUCTIONS FOR USE AS 2658 SAI Global CAMPING GAZ ITALIA - VIA CA’NOVA 11, 25010 CENTENARO DI LONATO (BRESCIA) ITALIA gas40071... - Page 8 Contents Parts list ................................page 8 Instructions for use for Bonesco SC, Bonesco LC and Bonesco Junior models ......page 9 Instructions for use for Bonesco QST S and Bonesco QST L models ..........page 12 Term of application of the guarantee ...................... page 16 IMPORTANT: Read these instructions for use carefully.
-
Page 9: Parts List
20 – Front of central stand (Bonesco QST L, Bonesco QST S, Bonesco SC, Bonesco LC models) 21 – Thermal screen for central stand (Bonesco QST L, Bonesco QST S, Bonesco SC, Bonesco LC models) 22 – Air control (Bonesco QST L, Bonesco QST S, Bonesco SC, Bonesco LC models) 23 –... - Page 10 Thank you for choosing this Campingaz® combustible material.By windy day, place charcoal barbecue. your grill so that the wind does not raise the sparks. These instructions aim to enable you to safely – Wear barbecue gloves for cooking or and correctly use your Campingaz® charcoal adjusting the air control system (6).
- Page 11 (2) (Bonesco SC and Bonesco LC). 4) Do not start to cook until the charcoal is 3a) Bonesco SC and Bonesco LC models covered with a film of ashes. When the Take out the charcoal grate (2). Put a starter...
- Page 12 – After using, you can slide the ashes into the ash tray by lifting one side of the charcoal grate (2) (Bonesco SC and Bonesco LC). – After the ashes have completely cooled, you can remove the ash container (7) and throw the ashes away.
- Page 13 The larger Thank you for choosing this Campingaz® the chunks (restaurant size), the easier it is charcoal barbecue. to light, and vice versa. These instructions aim to enable you to safely – Before using, check that the barbecue is and correctly use your Campingaz®...
- Page 14 The device should be kept away other people and inflammable materials. from inflammable materials during use. Campingaz® CV 300 PLUS and CV 470 PLUS Respect the instructions in this manual and cartridges have valves so they can be removed...
- Page 15 2) You can remove residual ashes from the ash the process and to allow an evenly ignited container by lifting one side of the hearth charcoal. grill (2) (Bonesco SC and Bonesco LC). Extinguish the gas burner by 3) Replace the hearth grill (2). turning the adjustment wheel...
- Page 16 – After using, you can slide the ashes into the ash container by lifting one side of the hearth grill (2) (Bonesco SC and Bonesco LC). 14) The temperature of the cooking grill is not – After the ashes have completely cooled, you uniform.
- Page 17 This appliance shall only be used with a – The product is covered by a total parts and Campingaz CV 300 PLUS or CV 470 PLUS labor warranty for a period of 2 (two) years cartridges. 80% Butane / 20% Propane mix from its purchase date.
-
Page 18: Outdoor Use Only
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLEFT. DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS. OR SPRAY AEROSOLS NEAR THIS APPLIANCE. DO NOT OPERATE WITH PANELS, COVERS OR GUARDS REMOVED FROM THIS APPLIANCE. -
Page 19: Consumer Service
Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: (1) At least 25% of the total wall area is completely open (2) 30% or more in total of the remaining wall side, back and front wall areas is open and unrestricted. - Page 20 NOTES...
- Page 21 4010034518 (ECN20036897-01)
