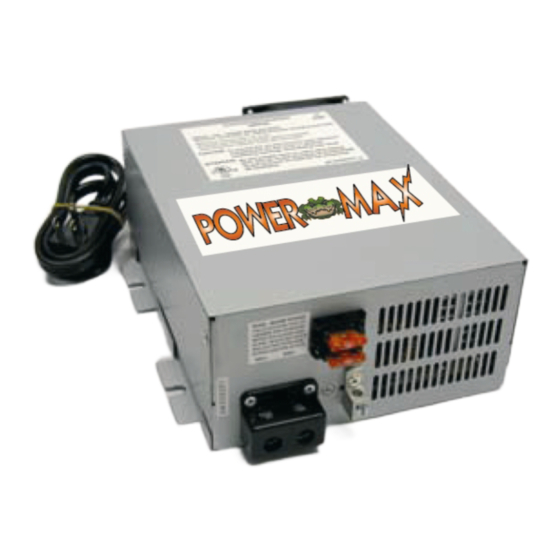

PowerMax PM 32 Installation & Maintenance

AC to D C Conv erter & Charger
FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION.
Pr o vide these instructions to the end user or consumer.
INSTALLER:
CONSUMER: Keep these instructions for future reference.
NOTICE: Products are not to be used nor are warranted in aerospace, medical or lifesafety applications.
120 V AC is present. This Converter/Charger is designed to convert 120 VAC to 12 V DC . It also provides low voltage
power for charging on-board 12 VDC batteries. The PM series Converter/Charger is a "switch m ode" type and is
designed to be maintenance-free with no user serviceable components. The Converter/Charger power output is "current
limiting" by design.
NEVER store electrical devices in compartments where flammable liquids (such as gasoline) exist.
DO NOT mount/install unit in compartments designed for storage of batteries of flammable liquids.
1.

DISCONNECT DC POWER.

wiring.
2. The mounting location may be on any interior (out of direct weather) surface. Location chosen must be accessible
LOCAT ION.
after installation. When mounted inside a cabinet, the cabinet must be large enough to allow dissipation of heated air. Make
sure that there is a minimum of 1" (one inch) free air space at each end of the unit so that cooling air can move through the unit
properly. AVOID foreign contaminants such as dirt, metal particles or moisture.
3. MOUN TING . Flanges with holes are provided for ease of mounting using standard fasteners. Confirm that the surface that the
converter is mounted to is solid and will hold the weight (6 lbs) during vehicle operation.
4. ELECTRICAL REQ UIREMENTS. A 120 VAC receptacle needs to be located within 36 inches of the converter to supply power.
Electrical consideration should also be given to mounting near the locations of the batteries and the 12- volt D C distribution
panel.
5.
ELE CT R ICAL CONNECT IO NS.
and wires to overheat. Review unit labels for recommended terminal torque values.
120 V AC Connection – First confirm that the 120 V AC power source AC circuit breaker(s) are in the off position. DO NOT
turn-on AC circuit breakers until installation is complete.
• Using an 8 AWG minimum size copper wire, attach from the chassis to the Converter/Charger Bonding Lug.
• Using the attached power cord on the Converter/Charger, connect firmly to the 120 V AC receptacle
PowerMax reserves the right to make changes in the product at any time, without notification.
W AR NIN G – A void Possible Injury or Death
W AR NIN G – A void Personal Injury or Product Damage
Disconnect the battery POS (+) wire at the battery end before connecting this Converter/Charger to any
Be sure to tighten all connections securely. A loose connection can quickly cause terminals
W AR NIN G – A void Possible Injury or Dea t h
AC to DC
CONVERTER & CHARGER
PM models 32, 45, 55, 60, and 75 Amp
Installation & Maintenance
SA F E T Y A L E R T
