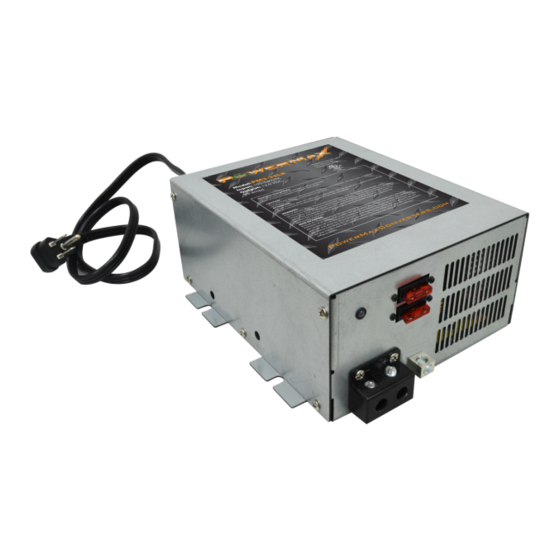

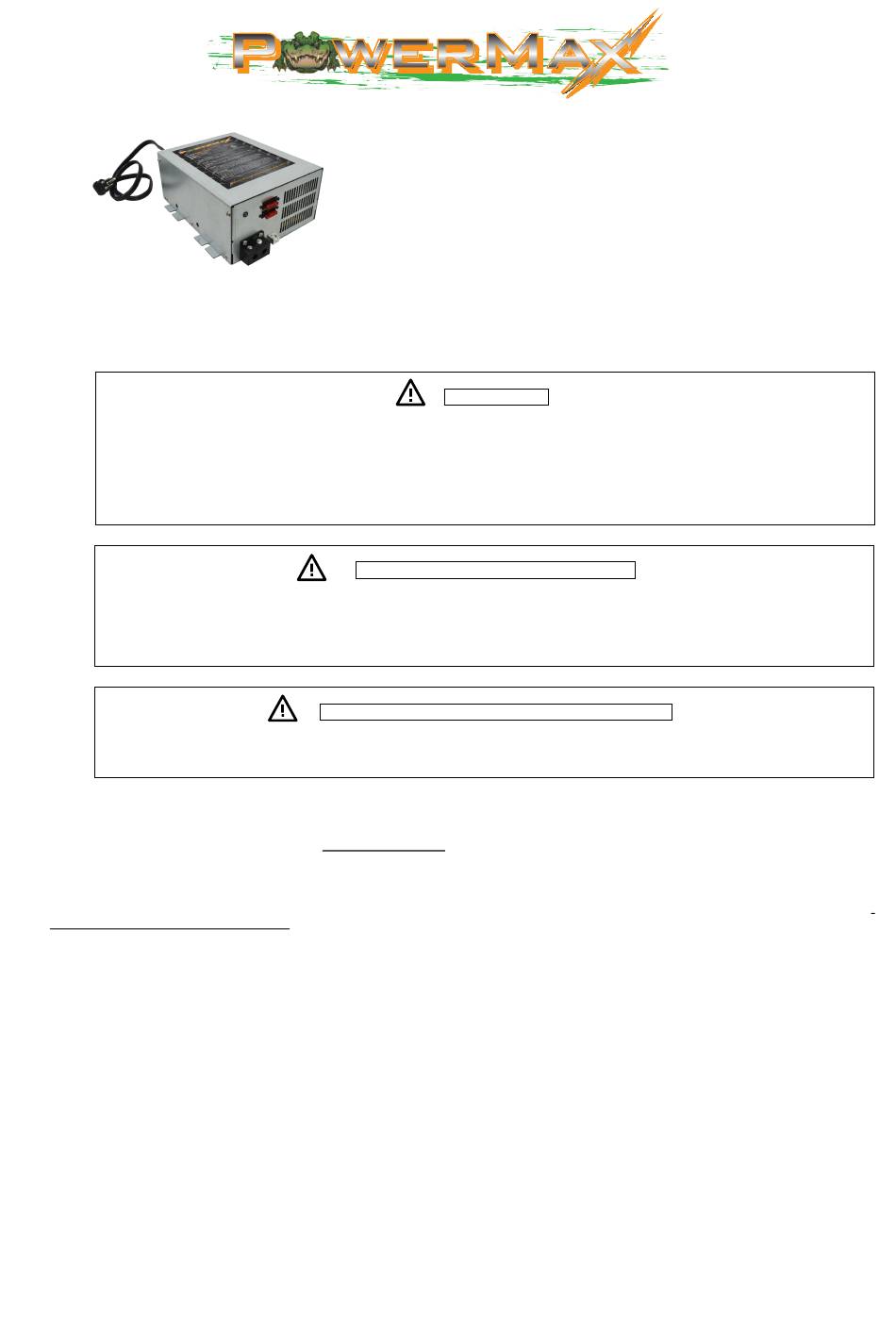

AC to DC Converter/Charger
INSTALLER: Provide these instructions to the end user or consumer.
CONSUMER: Keep these instructions for future reference.
NOTICE: Products are not to be used nor are warranted in aerospace, medical or life safety applications.
120 VAC is present. This Converter/Charger is designed to convert 120 VAC to 12 VDC. It also provides low voltage
power for charging on-board 12 VDC batteries. The Converter/Charger is a "switch mode" type and is designed to be
maintenance-free with no user serviceable components. The Converter/Charger power output is "current limiting" by
design.
NEVER store electrical devices in compartments where flammable liquids (such as gasoline) exist.
DO NOT mount/install unit in compartments designed for storage of batteries of flammable liquids.
1.
DISCONNECT DC POWER. Disconnect the battery POS (+) wire at the battery end before connecting this Converter/Charger to any
vehicle/device wiring.
2.
LOCATION. The mounting location may be on any interior (out of direct weather) surface. Location chosen must be accessible after
installation. When mounted inside a cabinet, the cabinet must be large enough to allow dissipation of heated air. Make sure that there is a
minimum of 1" (one inch) free air space at each end of the unit so that cooling air can move through the unit properly. AVOID foreign
contaminants such as dirt, metal particles or moisture.
3.
MOUNTING. Flanges with holes are provided for ease of mounting using standard fasteners. Confirm that the surface that the converter is
mounted to is solid and will hold the weight (6 lbs) during vehicle operation.
4.
ELECTRICAL REQUIREMENTS. A 120 VAC receptacle needs to be located within 36 inches of the Converter/Charger to supply power.
Electrical consideration should also be given to mounting near the locations of the batteries and the 12-volt DC distribution panel.
5.
ELECTRICAL CONNECTIONS. Be sure to tighten all connections securely. A loose connection can quickly cause terminals and wires to
overheat. Review unit labels for recommended terminal torque values.
6.
THE FAN WILL NOT RUN ALL THE TIME. THE FAN RUNS ONLY WHEN NEEDED.
7.
Never Leave the PowerMax PM3-XX unattended when plugged in.
8.
All PM3 Products must be installed by a certified electrician.
FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION.
WARNING – Avoid Possible Injury or Death
WARNING – Avoid Personal Injury or Product Damage
AC to DC
CONVERTER/CHARGER
PM3 models 15, 35, 45, 55, 60, 65, 75,
100 and 120 Amp and 3 Stage
Charging Option
Installation & Maintenance
SAFETY ALERT
Advertisement
Table of Contents
Related Manuals for PowerMax PM3
Summary of Contents for PowerMax PM3
- Page 1 Review unit labels for recommended terminal torque values. THE FAN WILL NOT RUN ALL THE TIME. THE FAN RUNS ONLY WHEN NEEDED. Never Leave the PowerMax PM3-XX unattended when plugged in. All PM3 Products must be installed by a certified electrician.
- Page 2 WARNING – Avoid Possible Injury or Death 120 VAC Connection – First confirm that the 120 VAC power source AC circuit breaker(s) are in the position. DO NOT turn-on AC circuit breakers until installation is complete. Using an 8 AWG minimum size copper wire, attach from the vehicle/device chassis to the Converter/Charger Bonding Lug. Using the attached power cord on the Converter/Charger, connect firmly to the 120 VAC receptacle 12 VDC Wiring–...
- Page 3 11. TEST. First, disconnect all loads and battery on the Converter/Charger by removing all 12 VDC connections from + or POS . Second, attach a multimeter instrument between the positive and negative terminals of the Converter/Charger. Then energize the 120 VAC converter circuit.
- Page 4 In no event shall Supplier be liable to Buyer for loss of profits, loss of use, or damages of any kind based upon a claim for breach of warranty. All PowerMax products must be installed by a certified electrician.
