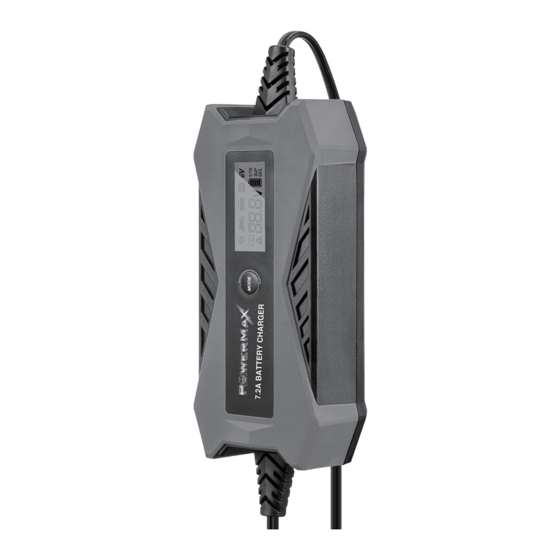

11 STAGE AUTOMATIC
SMART CHARGER
7.2A 6/12V Car, Motorcycle
PRIOR TO USE, READ AND UNDERSTAND
PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result in ELECTRICAL
SHOCK, EXPLOSION, or FIRE, which may result in SERIOUS
INJURY, DEATH, DAMAGE TO DEVICE or PROPERTY.
Do not discard this information.
0501470-Rev1.0
&
Marine
MODEL:PMMC-07
Advertisement
Table of Contents
Related Manuals for PowerMax PMMC-07
Summary of Contents for PowerMax PMMC-07
- Page 1 11 STAGE AUTOMATIC SMART CHARGER & 7.2A 6/12V Car, Motorcycle Marine MODEL:PMMC-07 PRIOR TO USE, READ AND UNDERSTAND PRODUCT SAFETY INFORMATION. Failure to follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION, or FIRE, which may result in SERIOUS INJURY, DEATH, DAMAGE TO DEVICE or PROPERTY.
- Page 2 About PMMC-07 The Smart Ba�ery Charger has 11 steps in each charge mode,it represents some of the most innova�ve and advanced technology on the market, making each charge simple and easy. It is quite possibly the safest and most efficient charger you will ever use.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read all Warnings and Cau�ons carefuly and thoroughly before using this Charger. Failure to do so may result in personal injury and or damage to the charger which will void the warranty. CAUTION: Personal Safety Use of an a�achment not recommended or sold by the ba�ery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. - Page 4 Ensure that the cable does not jam or comes into contact with hot surfaces or sharp edges. Connec�on to the mains supply must be in accordance with the na�onal regula�ons for electrical installa�ons. WARNING: Explosion and Fire Hazard RISK OF EXPLOSIVE GASES. a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS.
- Page 5 INSTRUCTION MANUAL A. Connect the Charger to Ba�ery...
- Page 6 B. CHARGING BATTERY INSTALLED IN VEHICLE Note: Connect and disconnect the DC output clamps ONLY AFTER removing the AC plug from the electrical outlet. Never allow the DC output clamps to touch each other. This may cause a spark. CHOOSE THE GROUND SYSTEM YOU WILL USE AND FOLLOW THE STEPS Connec�ng to a nega�ve-grounded system: 1.
-
Page 7: Charging Modes
LCD Display Manual * Keep pressing the Mode button for more than 3 seconds, you can change between Charging Modes cold mode /AGM 3.6A charge mode 7.2A charge mode 13.6V 7.2A repair mode 6V ba�ery mode Failure Display dead ba�ery error Voltage or Failure Code Display When the ba�ery is in charging process, the LCD shows the ba�ery... - Page 8 It is important to understand the differences and purpose of each charge mode and battery type.Do not operate the charger until you confirm the appropriate charge mode and battery type for your battery. Below is a brief descrip�on: 14-200Ah 14-200Ah 14-200Ah 14.8V/7.2A 13.6V/7.2A...
-
Page 9: Charging Times
Using 12V Repair 12V Repair is an advanced ba�ery recovery mode for repairing and storing, old, idle, damaged, stra�fied or sulfated ba�eries. Not all ba�eries can be recovered. Ba�eries tend to become damaged if kept at a low charge and/or never given the opportunity to receive a full charge. -
Page 10: Malfunctions And Solutions
MALFUNCTIONS AND SOLUTIONS Problem Cause Solu�on Possible ba�ery short and can not Do not use/scrapped. be repaired. The ba�ery is too big for the charger Switch to a larger charging or the charging (FAL) current. current is too small. Damaged ba�ery. Do not use it. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Rated Input Voltage AC: 110-120 VAC, 50-60Hz Working Voltage AC: 85-130 VAC, 50-60Hz Input Current: 2.2A rms (at full charging current) Efficiency: 85% Approx. Power: 108W Max Charging Voltage: Various Charging Current: 3.6A(6V),3.6A(12V),7.2A(12V) Low-Voltage Detec�on: 3V (12V), 3V (6V) Back Current Drain: -4°F to +122°F (-20˚C to +50˚C) Output power is reduced automa�cally...
