AC to DC Converter/Charger
FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION.
INSTALLER: Provide these instructions to the end user or consumer.
CONSUMER: Keep these instructions for future reference.
NOTICE: Products are not to be used nor are warranted in aerospace, medical or life safety applications.
120 VAC is present. This Converter/Charger is designed to convert 120 VAC to 12 VDC. It also provides low voltage
power for charging on-board 12 VDC batteries. The Converter/Charger is a "switch mode" type and is designed to be
maintenance-free with no user serviceable components. The Converter/Charger power output is "current limiting" by
design.
NEVER store electrical devices in compartments where flammable liquids (such as gasoline) exist.
DO NOT mount/install unit in compartments designed for storage of batteries of flammable liquids.
1.
DISCONNECT DC POWER. Disconnect the battery POS (+) wire at the battery end before connecting this Converter/Charger
to any vehicle/device wiring.
2.
LOCATION. The mounting location may be on any interior (out of direct weather) surface. Location chosen must be accessible
after installation. When mounted inside a cabinet, the cabinet must be large enough to allow dissipation of heated air. Make
sure that there is a minimum of 1" (one inch) free air space at each end of the unit so that cooling air can move through the unit
properly. AVOID foreign contaminants such as dirt, metal particles or moisture.
3.
MOUNTING. Flanges with holes are provided for ease of mounting using standard fasteners. Confirm that the surface that the
converter/charger is mounted to is solid and will hold the weight (up to10 lbs) during vehicle operation.
Copyright© 2011, Fieldstone Products Inc. Fieldstone Products Inc. reserves the right to make changes in the product at any time,
without notification.

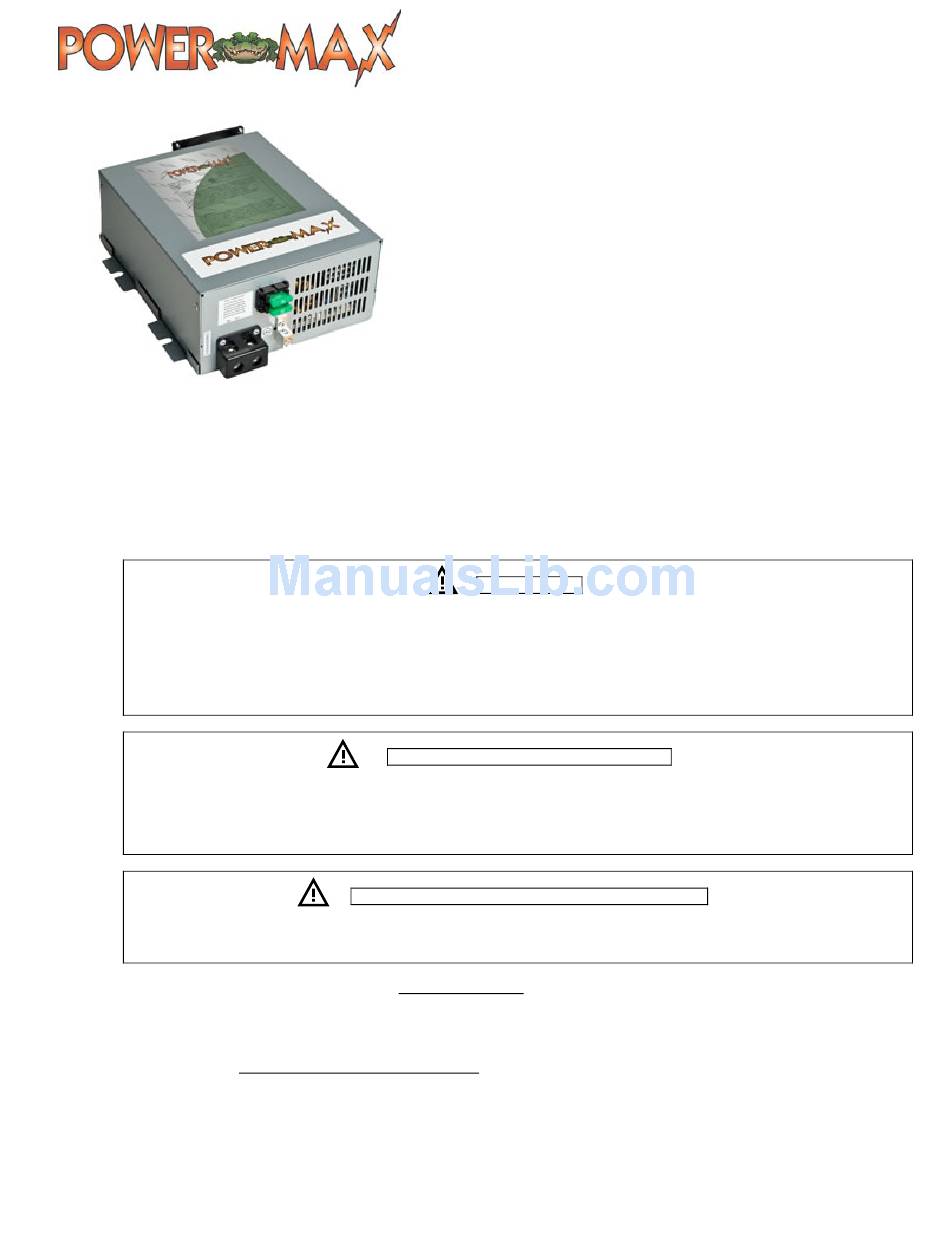

CONVERTER/CHARGER
PM3 models 15, 35, 45, 55, 60, 75, and 100 Amp
Installation & Maintenance
SAFETY ALERT
WARNING – Avoid Possible Injury or Death
WARNING – Avoid Personal Injury or Product Damage
AC to DC
with 3 Stage Charging
pamx-pm3-manual 19 October 2015
Advertisement
Table of Contents
Related Manuals for PowerMax PM3 15
Summary of Contents for PowerMax PM3 15
- Page 1 AC to DC CONVERTER/CHARGER PM3 models 15, 35, 45, 55, 60, 75, and 100 Amp with 3 Stage Charging Installation & Maintenance AC to DC Converter/Charger SAFETY ALERT FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION. INSTALLER: Provide these instructions to the end user or consumer. CONSUMER: Keep these instructions for future reference.
- Page 2 ELECTRICAL REQUIREMENTS. A 120 VAC receptacle needs to be located within 36 inches of the Converter/Charger to supply power. Electrical consideration should also be given to mounting near the locations of the batteries and the 12-volt DC distribution panel. ELECTRICAL CONNECTIONS. Be sure to tighten all connections securely. A loose connection can quickly cause terminals and wires to overheat.
- Page 3 WARNING – Avoid Personal Injury / Product Damage HI-POT TESTING. (Vehicle/device Manufacturing Facilities Only) DO NOT Hi-Pot DC wiring with the Converter/Charger connected to the vehicle/device wiring in order to prevent serious injury and/or damage. Copyright© 2011, Fieldstone Products Inc. Fieldstone Products Inc. reserves the right to make changes in the product at any time, without notification.
- Page 4 TROUBLESHOOTING AIR FLOW FAN (on back-side) ‘Reversed-Battery’ Fuses Chassis Bonding Lug 12 VDC Output Terminals Blows air out of front grill vents. NOTE: Before removing and replacing the Converter/charger, perform the following checks: Disconnect the AC power from the vehicle/device. Disconnect the wiring and Battery from the Converter/charger Positive + output terminal.
- Page 5 TWO YEAR LIMITED WARRANTY Limited Warranty and Remedy: Fieldstone Products, Inc. (“Supplier”) warrants products it sells against faulty workmanship or the use of defective materials and that such products will conform to published specifications, drawings and other descriptions for a period of two years. This warranty is the only warranty made by Supplier and is in lieu of all other warranties, express or implied, except as to title, and can be amended only by a written instrument signed by an officer of Supplier.
