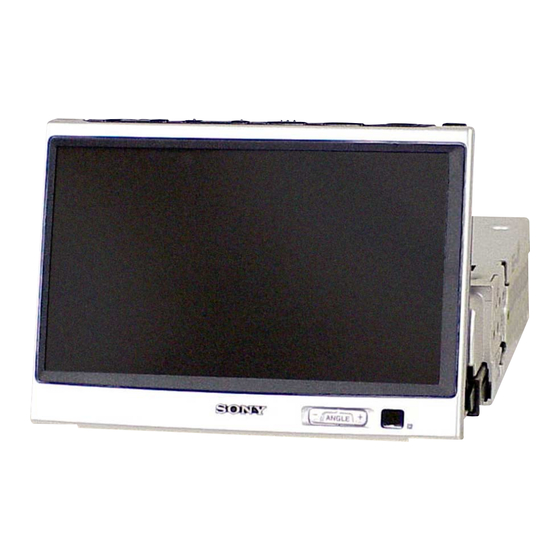

SERVICE MANUAL
Ver 1.1 2002.09
The XAV-7W is composed of the following models.
Media Center
Connection Box
Wireless Remote Commander
Media center/receiver
Monitor section
Display type Wide LCD color monitor
7 in.
Size
System
TFT active matrix
Number of pixel
336,960 pixels
Tuner section
FM
T uning range
87.5 - 108.0 MHz
Intermediate frequency
10.7 MHz
Usable sensitivity
8 dBf
Frequency response
30 - 15,000 Hz
Selectivity
75 dB (400 kHz)
S/N ratio
66 dB (stereo)
72 dB (mono)
Harmonic distortion at 1 kHz
0.6% (stereo)
0.3% (mono)
35 dB at 1 kHz
Separation
Sony Corporation
9-874-047-02
2002I0500-1
e Vehicle Company
C 2002.09
Published by Sony Engineering Corporation
XAV-7W
XA-114
RM-X118
SPECIFICATIONS
MW/LW
T uning range
MW: 531 - 1,602 kHz
LW: 153 - 279 kHz
Intermediate frequency
10.7 MHz/450 kHz
Usable sensitivity
MW: 30 µV
LW: 40 µV
Amplifier section
Outputs
Speaker outputs
(sure seal connectors)
Speaker impedance
4 - 8 ohms
Maximum power output
45 W × 4 (into 4 ohms, at 1 kHz)
General
Power requirements
12 V DC, from car battery (negative
earth)
FM/MW/LW aerial (1)
Inputs
Power supply (1)
Telephone ATT control lead (1)
Illumination control lead (1)
Remote control input connector (1)
XAV-7W
AEP Model
Front audio (1)
Outputs
Rear audio (1)
Subwoofer (mono)
Power aerial relay control lead (1)
Power amplifier control lead (1)
I/O connector
Dedicated 22-pin connector
T one controls
Bass ±7.5 dB at 100 Hz
Treble ±7.5 dB at 10 kHz
Loudness
+8 dB at 100 Hz
+2 dB at 10 kHz
Dimensions
With monitor closed
Approx. 178 × 50 × 185 mm
(W × H × D)
Mass
Approx. 1.7 kg
Supplied accessories
Card remote commander RM-X118
(1) (incl. 1 lithium battery)
Connection box (1)
Parts for installation and
connections (1 set)
Operating Instructions (1 set)
– Continued on next page –
MEDIA CENTER/RECEIVER
UK Model
