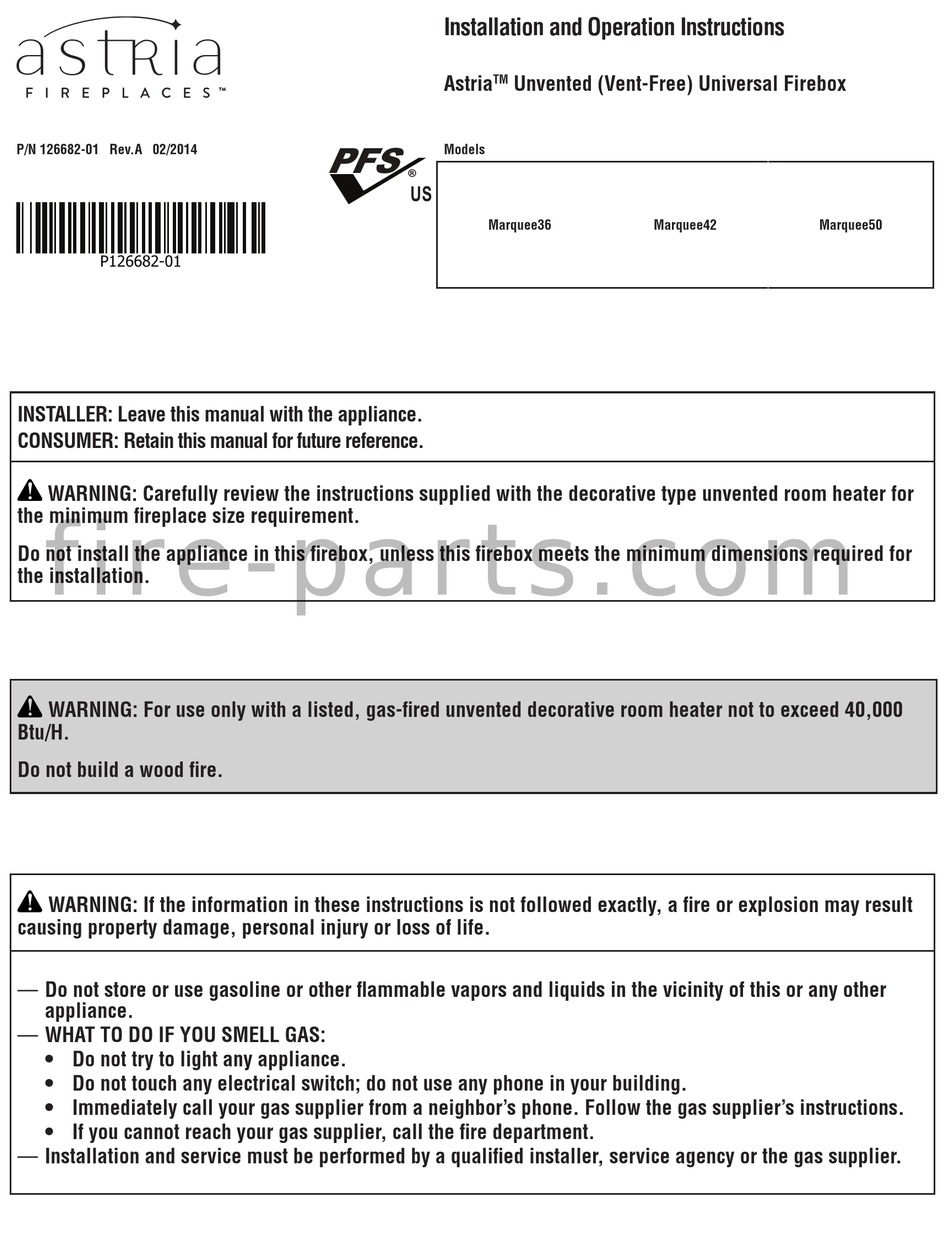

P/N 126682-01 Rev.A 02/2014
P126682-01
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: Carefully review the instructions supplied with the decorative type unvented room heater for
f i r e - p a r t s . c o m
the minimum fireplace size requirement.
Do not install the appliance in this firebox, unless this firebox meets the minimum dimensions required for
the installation.
WARNING: For use only with a listed, gas-fired unvented decorative room heater not to exceed 40,000
Btu/H.
Do not build a wood fire.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Installation and Operation Instructions
Astria
TM
PFS
Models
®
US
Marquee36

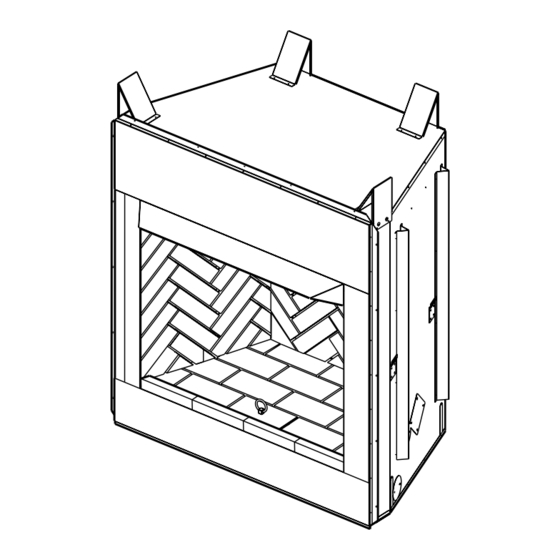

Unvented (Vent-Free) Universal Firebox
Marquee42
Marquee50
Advertisement
Table of Contents
Related Manuals for Astria Marquee36
Summary of Contents for Astria Marquee36
- Page 1 Installation and Operation Instructions Astria Unvented (Vent-Free) Universal Firebox P/N 126682-01 Rev.A 02/2014 Models ® Marquee36 Marquee42 Marquee50 P126682-01 INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. WARNING: Carefully review the instructions supplied with the decorative type unvented room heater for f i r e - p a r t s .
-
Page 2: Table Of Contents
Ceiling fans can create drafts that alter burner WARNING: Do not use a flame patterns. Altered burner blower insert, heat exchanger patterns can cause sooting. insert or other accessory not ap- proved for use with this firebox. www.Astria.US.com 126682-01A... -
Page 3: Safety
Replace hood with INNOVATIVE HEARTH PRODUCTS model 109511-01 50", 109511-02 42", or 109511-03 36" only. This hood has been designed to keep the operation of your fireplace safe and efficient. www.Astria.US.com 126682-01A... -
Page 4: Local Codes
2. Everything needed to complete installation. 3. These models CANNOT be installed in a bedroom unless maximum Btu rating of installed vent-free log set is less than 10,000 Btu/hr. 4. Proper air for combustion and ventilation (page 8). www.Astria.US.com 126682-01A... -
Page 5: Product Specifications
- p a r t s . c o m " 29" " 19" (Ref.) " " " " " 36" HEARTH " " 50" 30" " 7" " " " 36" " " " Figure 1 - 36" Model Marquee36 (Picture may vary from actual fireplace) www.Astria.US.com 126682-01A... - Page 6 - p a r t s . c o m " " 23" " (Ref.) " " " " " 42" HEARTH " " 50" 30" " 7" " " " 42" " " 13" Figure 2 - 42" Model Marquee42 (Picture may vary from actual fireplace) www.Astria.US.com 126682-01A...
- Page 7 - p a r t s . c o m " " 23" " (Ref.) " " " " " 50" HEARTH " " 50" 30" " " " 7" " 50" " " 13" Figure 3 - 50" Model Marquee50 (Picture may vary from actual fireplace) www.Astria.US.com 126682-01A...
-
Page 8: Air For Combustion And Ventilation
However, in buildings of un- doorless passageways or ventilation grills usually tight construction, you must provide between the rooms. additional fresh air. www.Astria.US.com 126682-01A... - Page 9 See Ventilation Air From Inside Building. B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 10. C. Install a lower Btu/Hr fireplace, if lower Btu/ Hr size makes room unconfined. www.Astria.US.com 126682-01A...
-
Page 10: Installation
(such as, but not limited to, to- bacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors. www.Astria.US.com 126682-01A... - Page 11 These minimum clearances replace any other recommended clearances supplied with your ANSI Z21.11.2 approved gas logs. Figure 7 - Minimum Mantel Clearances *Minimum 16" from Side Wall for Built-In Installation Figure 6 - Minimum Clearance for Combustible to Wall www.Astria.US.com 126682-01A...
- Page 12 WARNING: Do not alter, cut 61" (36" Models) " Clearance or modify fireplace spacers. 65" (42" Models) Not Required at 71" (50" Models) Nailing Flanges 86.5" (36" Models) 92" (42" Models) 100" (50" Models) Figure 9 - Corner Installation www.Astria.US.com 126682-01A...
-
Page 13: Gas Line Installation
Make sure to locate access hole so cabinet mantel will Figure 12 - Inserting Firebox Into Cabinet cover it when installed (see Figure 11). Mantel (Mantel May Vary From Illustration) www.Astria.US.com 126682-01A... - Page 14 PROPERLY INSTALL THIS KIT, CONTACT YOUR LOCAL DISTRIBUTOR OR DEALER. WARNING RIGHT BRICK PANEL LIFTING HAZARD SINGLE -PERSON LIFT COULD BOTTOM CAUSE INJURY. BRICK PANEL USE ASSISTANCE WHEN MOVING ASH PANEL OR LIFTING. Figure B - Installing Refractory Panels www.Astria.US.com 126637-01A...
-
Page 15: Optional Gas Line Installation
4. Repack insulation around gas line and into Connection sleeve opening. Seal any gaps between Figure 16 - Gas Line Installation gas line and refractory knockout hole with refractory cement or commercial furnace cement, Install the gas appliance or cap-off gas line if desired. www.Astria.US.com 126682-01A... - Page 16 WARNING: When using a decorative vented gas log, the damper must be removed or permanently locked in the fully open position and the glass doors must be in the fully open position. www.Astria.US.com 126682-01A...
-
Page 17: Technical Service
This will protect your warranty coverage for parts replaced under warranty. ACCESSORIES f i r e - p a r t s . c o m OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION - AK4F OPTIONAL OUTSIDE AIR KIT FOR SIDEWALL INSTALLATION - AK4 www.Astria.US.com 126682-01A... -
Page 18: Parts
PARTS 36", 42", AND 50" MODELS 15/16 f i r e - p a r t s . c o m 15/16 www.Astria.US.com 126682-01A... - Page 19 109511-05 Hood Stainless 42" 109511-06 Hood Stainless 50" PARTS AVAILABLE NOT SHOWN 109714-02 Side Firebrick Wall Spacers • • 114913-01 Rear Firebrick Wall Spacers • • 114913-01 Rear Firebrick Wall Spacers • ** Not a field replaceable part. www.Astria.US.com 126682-01A...
- Page 20 MOSAIC MASONRY AND ESTATE BRICKLINERS LINERS A Mosaic Masonry or Estate liner is required for use with your Astria Fireplace. Catalog numbers are included for convenience. PART NO. MOSAIC MASONRY BRICKLINER Mosaic36M2 Red Full Stacked F0350 Mosaic36M4 Red Split Stacked F0351...
- Page 21 THE WARRANTY Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your Astria™ brand gas fireplace ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only.
-
Page 22: Warranty
Model (located on product or identification tag) _____________________________ Serial No. (located on product or identification tag) __________________________ Date Purchased __________________________ Keep receipt for warranty verification. f i r e - p a r t s . c o m www.Astria.US.com 126682-01A... - Page 23 NOTES f i r e - p a r t s . c o m...
- Page 24 f i r e - p a r t s . c o m 1508 Elm Hill Pike, Suite 108 Nashville, TN 37210 126682-01 1-800-655-2008 Rev. A www.IHP.US.com 02/14 P126682-01...
