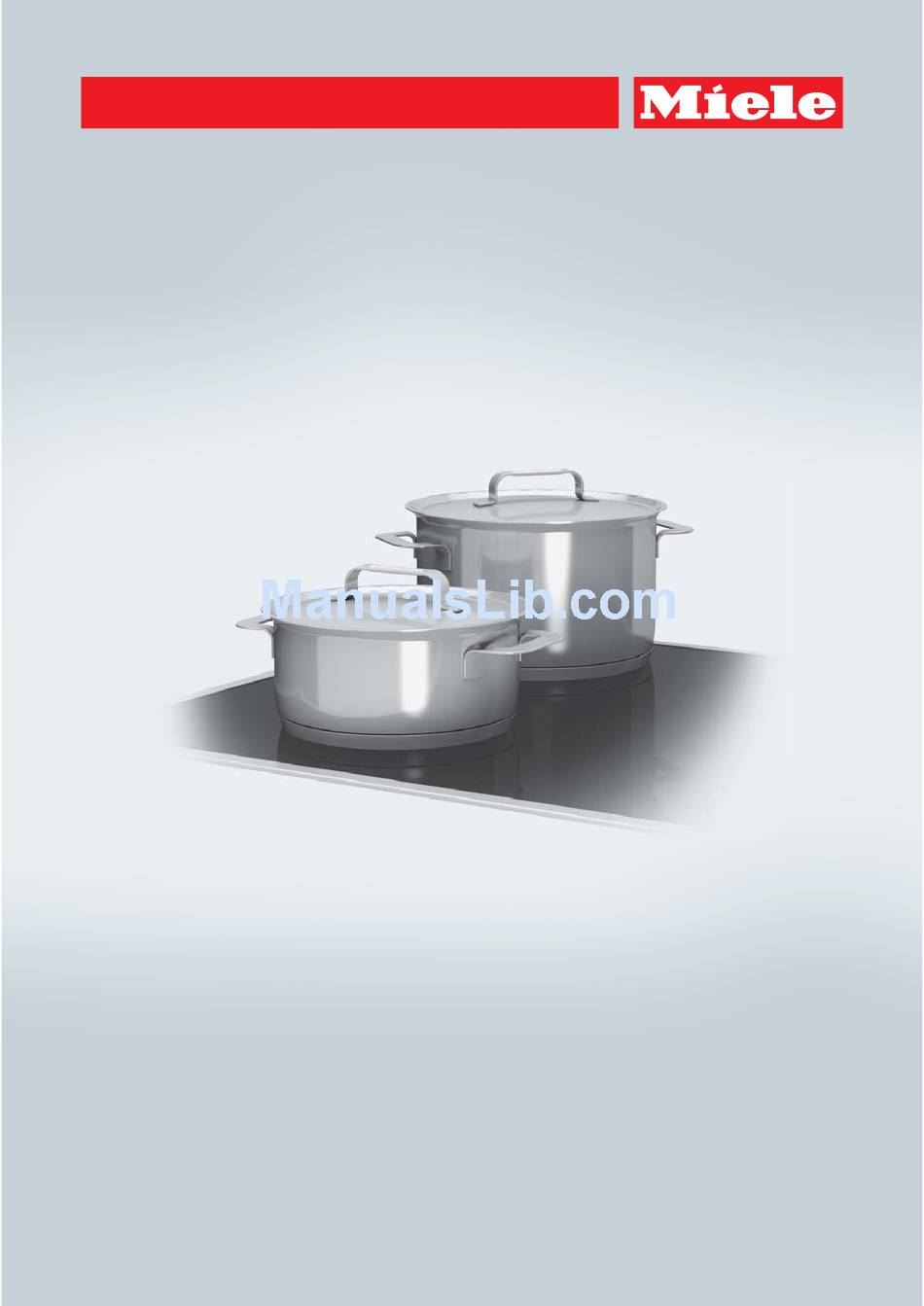

- Page 1 Operating and Installation Instructions Ceramic cooktops KM 6002 To avoid the risk of accidents or damage to the appliance it is impera‐ tive that you read these instructions before installing the appliance and using it for the first time. en-CA...
-
Page 2: Table Of Contents
Contents Warning and safety instructions................4 Caring for the environment ................. 12 Overview ....................... 13 Cooktop ......................... 13 Burner data ......................14 Using for the first time..................15 Cleaning the cooktop for the first time ..............15 Turning on the cooktop for the first time..............15 How the burners work .................. - Page 3 Contents Electrical connection ................... 37 After-sales service, data plate, warranty............38...
-
Page 4: Warning And Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage occurring as a result of non-compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 5 Warning and safety instructions Intended use This cooktop is intended for domestic use and use in other similar environments. This cooktop is not intended for outdoor use. The cooktop is intended to prepare food and keep it warm in do‐ mestic use only.
- Page 6 Warning and safety instructions Safety with children Children under 8 years of age must be kept away from the cook‐ top unless they are constantly supervised. Children ages 8 and up may only use the cooktop without super‐ vision if they have been shown how to use it in a safe manner, and if they are able to recognize and understand the potential risks of im‐...
- Page 7 Warning and safety instructions Technical safety Installation, maintenance and repair work should only be per‐ formed by a Miele authorized service technician. Installation, mainte‐ nance and repair work by unqualified persons can cause considera‐ ble danger to users. A damaged cooktop can be dangerous. Always check for visible signs of damage.
- Page 8 Any repairs not performed by a Miele authorized service techni‐ cian will void the warranty. Miele can only guarantee the safety of the appliance if genuine Miele spare parts are used. Defective components must only be re‐ placed by genuine Miele spare parts.
- Page 9 Warning and safety instructions Proper use The cooktop gets hot when in use and remains hot for a while af‐ ter being turned off. A burn hazard is present until the residual heat indicators go out. When in use, the cooktop emits a significant amount of heat, which could cause objects in the vicinity to catch fire.
- Page 10 Warning and safety instructions You can burn yourself on a hot cooktop. When cooking on the cooktop, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders and oven mitts. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard.
- Page 11 Warning and safety instructions Cookware made of plastic or aluminum foil will melt high tempera‐ tures. Do not use any plastic or aluminum foil cookware. The cooktop trim or edge (in the case of bevelled cooktops) can become hot due to the following factors: operating time, high output settings, large cookware, and number of burners in use.
-
Page 12: Caring For The Environment
You Therefore, please do not dispose of can return the packaging to your Miele your old appliance in your regular dealer. household waste. -
Page 13: Overview
Overview Cooktop Variable burner Standard burner Standard burner Standard burner Display with residual heat indicators... -
Page 14: Burner Data
Overview Burner data Burner Rating in watts in cm in inch 208/240 V 12.0 / 21.0 4³/ 4" / 8¹/4" 750 / 2200 14.5 5¹¹/16 1200 18.0 7¹/8" 1800 14.5 5¹¹/16 1200 Total: 6400... -
Page 15: Using For The First Time
Using for the first time Please affix the extra appliance data Turning on the cooktop for the plate supplied with this documenta‐ first time tion in the space provided in the "Af‐ The cooktop's metal components are ter-sales service, data plate, warran‐ protected by a conditioning agent. -
Page 16: How The Burners Work
How the burners work Standard burners have one heating Standard burner band, and variable burners and casser‐ ole areas have two heating bands. De‐ pending on the model, the heating bands may be separated by a ring. Each burner features overheat protec‐ tion (internal temperature limiter), which prevents the ceramic surface from over‐... -
Page 17: Cookware
Cookware The most suitable cookware is metal pots and pans with thick bottoms that, when cold, bulge slightly inward. On warming, the bottom expands and rests flat on the burner; this conducts the heat optimally. Cold Glass, ceramic or stoneware is less suitable. -
Page 18: Energy Saving Tips
Energy saving tips – Make sure that the bottoms of pots or pans either match the size of the burner or are somewhat larger. This ensures that heat from the burner is not wasted. – Whenever possible, keep pots and pans covered while cooking. -
Page 19: Power Setting Ranges
Power setting ranges Setting range Melting butter, chocolate, etc. Dissolving gelatin Preparing yoghurt Thickening sauces containing only egg yolk and butter Warming small quantities of liquid Keeping food warm that sticks easily Cooking rice Warming liquid and semi-solid foods 3–5 Thickening sauces, e.g. -
Page 20: Operation
Operation Residual heat indicator Fire hazard. Do not leave the appliance unatten‐ When a specified temperature is ded while cooking. reached after a burner, for example the left front, has been turned on, the corre‐ sponding residual heat indicator lights Burner control knobs The oven is equipped with different control knobs:... -
Page 21: Switching On Second Heating Zones
Operation Switching on second heating zones Variable burners and casserole areas have a second heating zone that you can switch on. Activating Turn the burner knob clockwise past 12 to the stop. Turn the burner knob counter-clock‐ wise to the desired power setting. Deactivating Turn the burner knob counter-clock‐... -
Page 22: Overheat Protection
Overheat protection Each burner has an overheat protection feature (internal temperature limiter). This feature automatically deactivates burner heating before the burner over‐ heats. As soon as the burner has cooled down, heating is automatically resumed. Any of the following can trigger the overheat protection: –... -
Page 23: Cleaning And Care
Cleaning and care Clean and dry the entire cooktop after Burn hazard. each use. Allow it to cool down before The burners must be turned off and cleaning. Dry the appliance after using allowed to cool completely. water to clean it. This helps prevent lime deposits. - Page 24 Stub‐ born soiling may need to be removed with a scraper blade. Then, clean the cooktop with the Miele ceramic and stainless steel cleaner (see "Optional accessories") or commercial glass ceramic cleaner using a paper towel or clean cloth.
-
Page 25: Problem Solving Guide
Miele Service (see back cover for details). Risk of injury. Improperly performed installation, maintenance or repair work can pose a serious danger to users of the appliance, for which Miele is not re‐ sponsible. Installation, maintenance and repairs may only be carried out by Miele author‐... -
Page 26: Optional Accessories
Optional accessories Miele offers a wide range of useful ac‐ cessories as well as cleaning and con‐ ditioning products for your Miele appli‐ ances. These can be ordered online at: and are also available from Miele (see back of this booklet for contact details) or your Miele dealer. -
Page 27: Safety Instructions For Installation
Safety instructions for installation Installation of the cooktop may only be performed by a qualified technician. The cooktop may only be connected to the oven by a qualified electrician. Install the upper cabinets and ventilation hood before installing the cooktop to avoid damaging the appliance. -
Page 28: Safety Clearances
Safety clearances Safety clearance above the cooktop For a ventilation hood positioned above the cooktop, always use the clearance specified by the hood manufacturer. If no specifications are available from the hood manufacturer, or if flammable ma‐ terials (e.g. wall shelf) are installed above the cooktop, the clearance must be at least 760 mm. - Page 29 Safety clearances Safety clearances to the sides and back of the cooktop Ideally, the cooktop should be installed with plenty of space on either side. There may be a wall at the rear or a tall cabinet or wall on one side (right or left) (see illustrations).
- Page 30 Safety clearances Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained be‐ tween the countertop cut-out and the covering, since high temperatures can dam‐ age these materials. If the covering is made of a flammable material (such as wood), the minimum dis‐ tance between the countertop cut-out and the wall covering must be 50 mm.
-
Page 31: Bottom Cover Panel
Bottom cover panel Measures must be taken to ensure that it is not possible to touch the underside of the installed cooktop. For this reason, a front cover panel and bottom cover panel must be installed if: – The cooktop is wider than the oven installed below it. -
Page 32: Instructions For Installation
Instructions for installation Seal between the cooktop and Tiled countertop countertop The grouting and the shaded area under the cooktop frame must be smooth and flat so that the frame will sit Do not use sealant between the evenly on the countertop and so that cooktop and the countertop. -
Page 33: Installation Dimensions
Installation dimensions Spring clips Installation height Front Space for fastening elements and cable routing... -
Page 34: Installation
Installation Preparing the countertop Create the countertop cut-out as shown in the cooktop diagram. Re‐ member to maintain the minimum safety distances (see "Safety clearan‐ ces"). Wooden countertop Seal any cut surfaces on the wooden countertop with a special varnish, sili‐ Position the spring clips on the top cone rubber, or resin to prevent the... -
Page 35: Installing The Cooktop
Installation Natural stone countertops Installing the cooktop Feed the cooktop power cord down You will need heavy duty double-sided through the countertop cut-out. adhesive tape (not included with the cooktop) to fasten the spring clips. Connect the cooktop to the oven (see "Connection to the oven"). -
Page 36: Connecting The Cooktop
Connecting the cooktop Connect the EMC ground , which is attached to the bottom casing of the cooktop (depending on the mod‐ el), to the cable lug on the oven. Insert the plug casing on the cooktop power cord into the plug connector on the oven. -
Page 37: Electrical Connection
Please ensure that these match the for which Miele is not responsible. building's electrical supply. Miele cannot be held liable for dam‐ Disconnecting devices age or injury caused by improper in‐ stallation, maintenance or repair... - Page 38 For problems that you cannot resolve on your own, please contact: – Your Miele dealer or – Miele Service The telephone number for Miele Service can be found at the back of this booklet. When contacting Miele, please have the model and serial number of your cooktop ready.
- Page 39 Canada Importer Miele Limited Headquarters and Miele Centre 161 Four Valley Drive Vaughan, ON L4K 4V8 www.miele.ca Customer Care Centre Phone: 800-565-6435 customercare@miele.ca Germany Manufacturer Miele & Cie. KG Carl-Miele-Straße 29 33332 Gütersloh...
- Page 40 KM 6002 en-CA M.-Nr. 10 171 920 / 00...
