Control Operation - Service

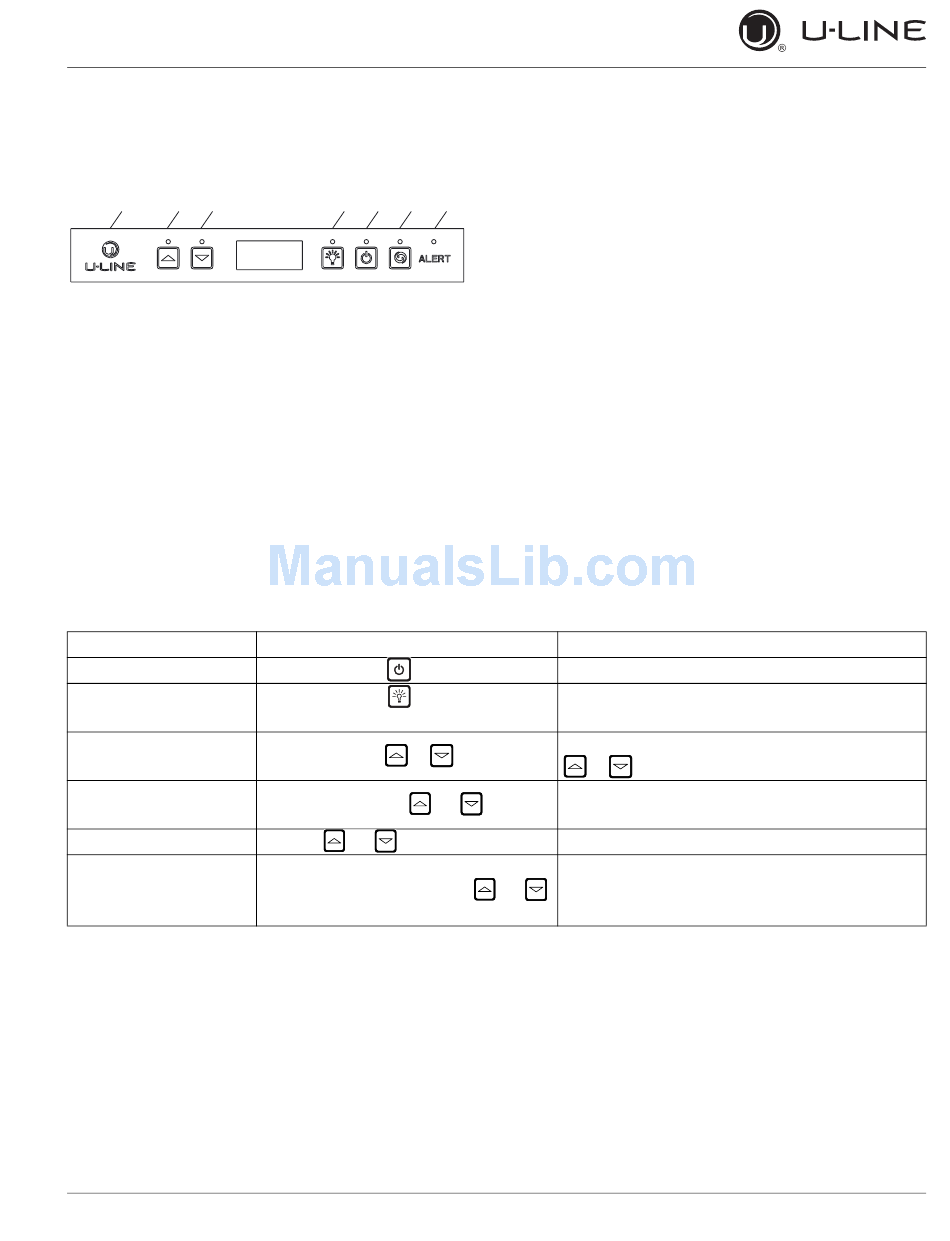

UI BUTTON LAYOUT
1 2 3
Hidden Button:
1.
-Accesses Service Menu
-No LED
Up Button
2.
-Increases temperature
-Navigates through service menu
Down Button
3.
-Decreases temperature
-Navigates through service menu
-LED activated with button activation
CONTROL FUNCTION GUIDE
FUNCTION
ON/OFF
Toggle lights
Adjust refrigerator set
point
View temperature in unit
Toggle between F/C
Service mode
4 5 6
COMMAND
Press and release
Press and release to leave interior
to
light on for 3 hours
Push and release
or
Push and release the and
Hold the and for five seconds
Push and hold the hidden icon for 10
seconds to enter. Then use the
to scroll through the service mode menu.
Light Button
4.
-Activates light for 3 hours on select models
-Used to select items in service menu
-LED activated with button activation
7

Power Button

5.
-Turns unit off/on
-LED activated with button activation (only turning unit
off)
Clean Button
6.
-Activates Clean Cycle on CLR models
-LED activated with button activation
Alert LED
7.
-No button
-Illuminates with Hidden Button
-Illuminates with required displayed alerts
DISPLAY/OPTIONS
Unit will immediately turn ON or OFF
Glass door wine captains and beverage centers only.
When the "F" or "C" in the display is flashing, use
or
The display will flash and then toggle from set point
together
to temperature in unit.
The display will change units.
The display will change units.
and
to adjust the set point temperature.
