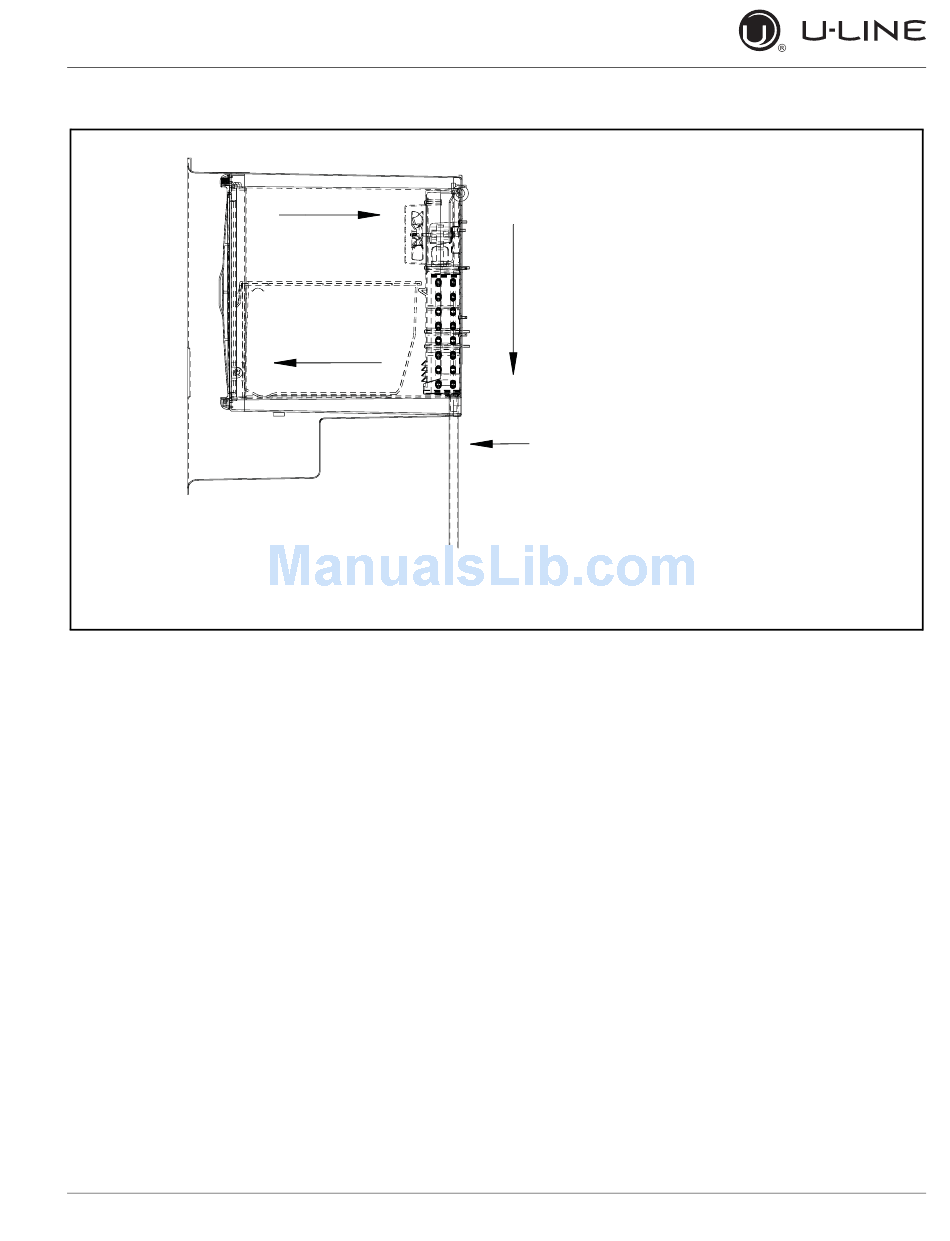

Air flow in at
evaporator blade
Air flow out at
evaporator outlet
Air passes though
fin tube evaporator
Condensate drains down past the
evaporator, into drain pan, and into
condensate pan through drain hose.
The drain trough is warmed during
defrost by contact with evaporator
fins. On U-CO29F model, drain
trough is also warmed by drain
heater attached to the drain pan.
