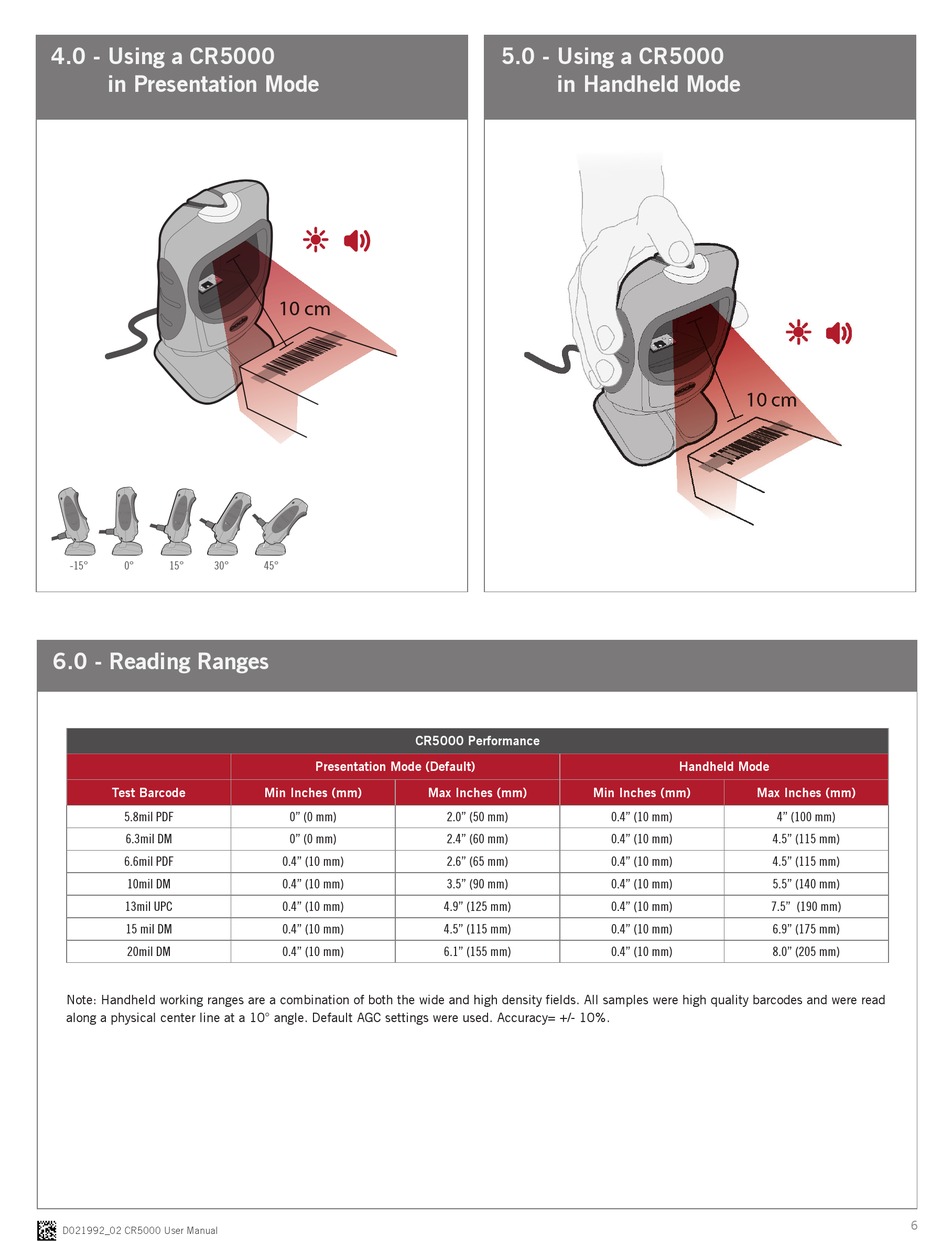

4.0 - Using a CR5000
in Presentation Mode
-15° 0° 15° 30°
J N R M NR PM

6.0 - Reading Ranges

Test Barcode
5.8mil PDF
6.3mil DM
6.6mil PDF
10mil DM
13mil UPC
15 mil DM
20mil DM
Note: Handheld working ranges are a combination of both the wide and high density fields. All samples were high quality barcodes and were read
along a physical center line at a 10° angle. Default AGC settings were used. Accuracy= +/- 10%.
D021992_02 CR5000 User Manual
10 cm
45°
QR
CR5000 Performance
Presentation Mode (Default)
Min Inches (mm) Max Inches (mm)
0" (0 mm)
0" (0 mm)
0.4" (10 mm)
0.4" (10 mm)
0.4" (10 mm) 4.9" (125 mm)
0.4" (10 mm) 4.5" (115 mm)
0.4" (10 mm) 6.1" (155 mm)
5.0 - Using a CR5000
in Handheld Mode
Min Inches (mm)
2.0" (50 mm) 0.4" (10 mm)
2.4" (60 mm) 0.4" (10 mm)
2.6" (65 mm) 0.4" (10 mm)
3.5" (90 mm) 0.4" (10 mm)
0.4" (10 mm)
0.4" (10 mm)
0.4" (10 mm)
Handheld Mode
Max Inches (mm)
4" (100 mm)
4.5" (115 mm)
4.5" (115 mm)
5.5" (140 mm)
7.5" (190 mm)
6.9" (175 mm)
8.0" (205 mm)
6
